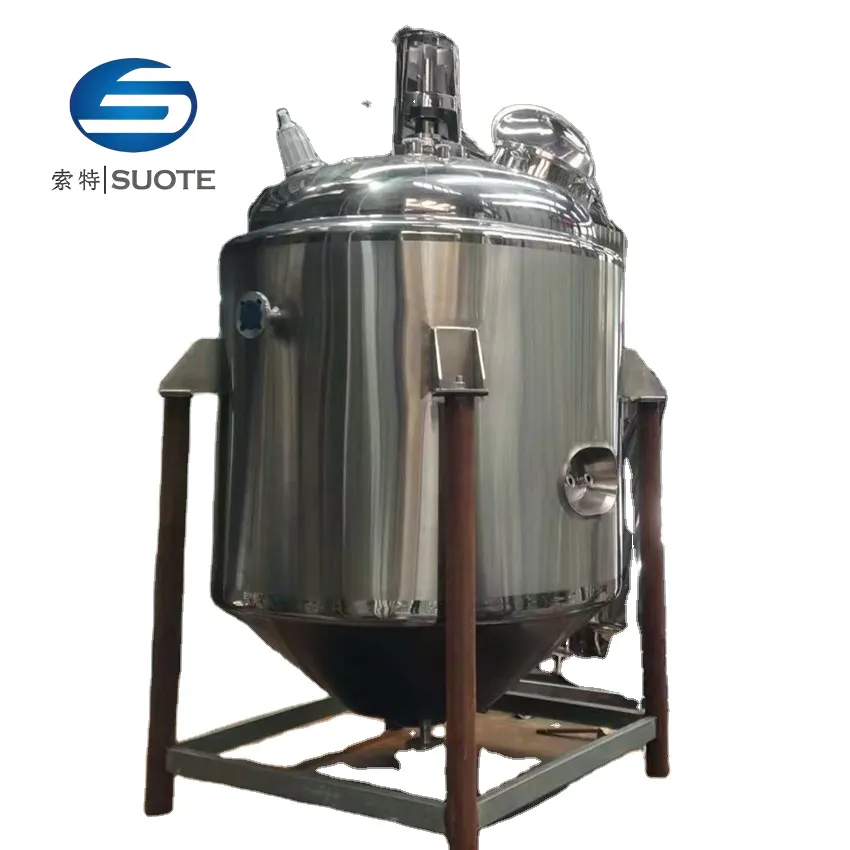

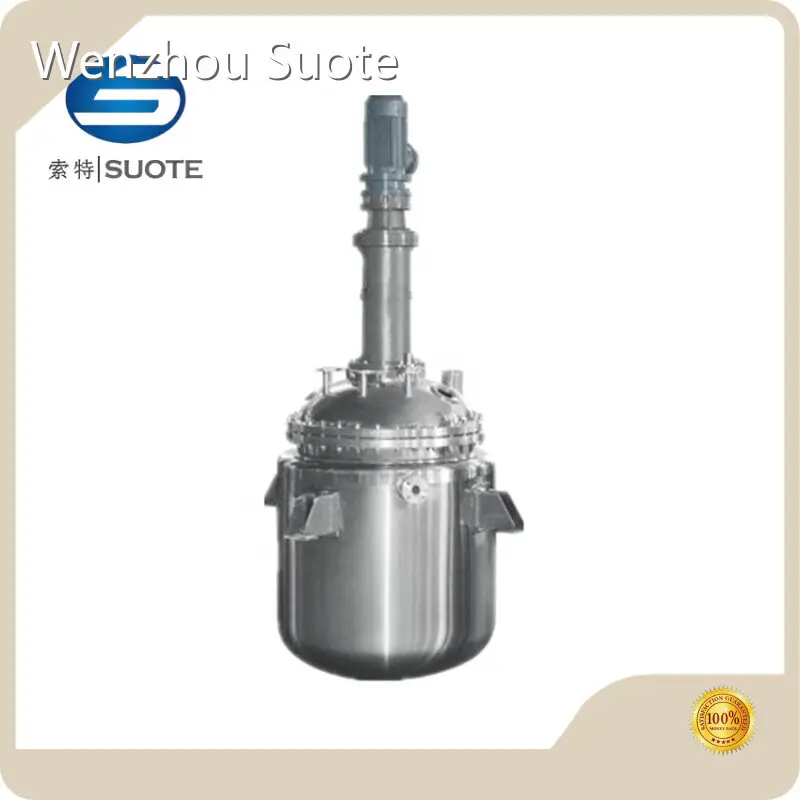

Conical Mixing Tank by Wenzhou Suote

Inquiry

Company Advantages

· The best of raw materials, technology, equipment and personnel are used for the production of Wenzhou Suote conical mixing tank.

· The product has passed the international certification in all respects, such as functionality, performance, and quality.

· Due to its remarkable economic return, the product is now widely used in the market.

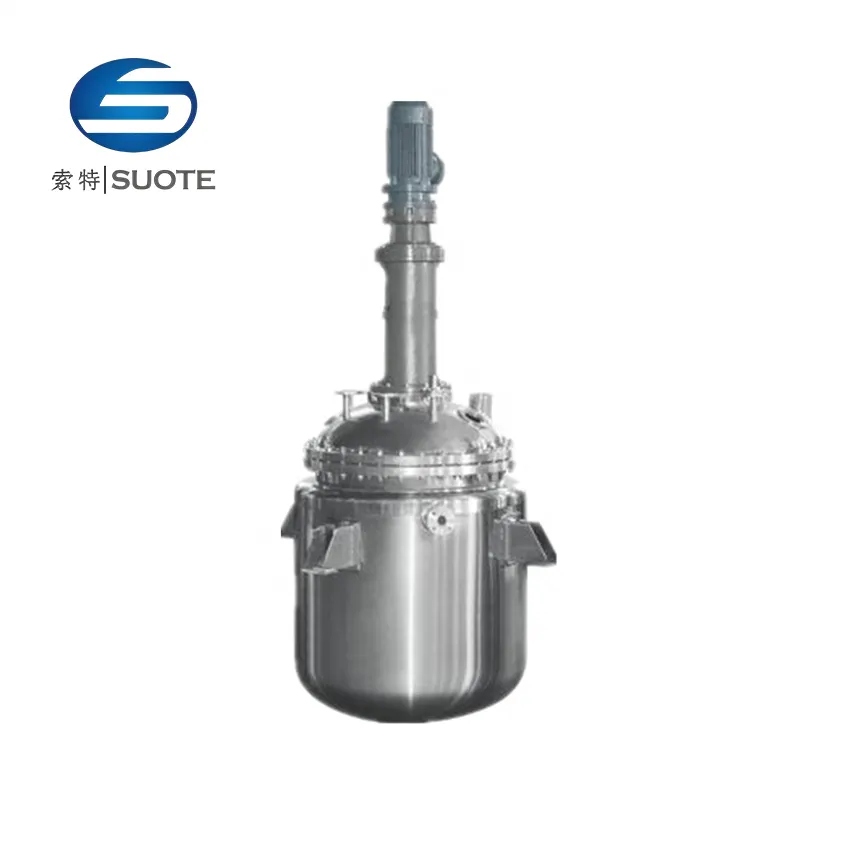

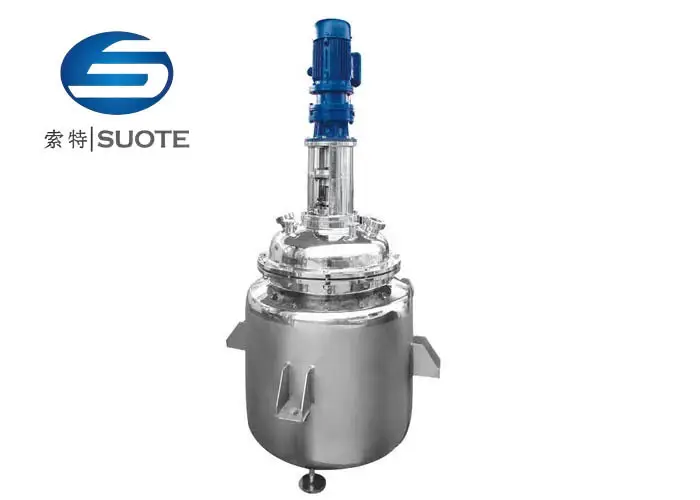

What is Crystallizing tank

Crystallizing tank is a crystallization equipment in which chilled water or refrigerant water is cooled rapidly after the materials are mixed.The essential are size of jacket, structure of agitator and outlet type. It's high-precision polish for inner wall and no dead ends,meeting the process requirements.The tank can be equipped with jackets,coils,insulation layer( for heating, cooling or insulation) depending on its application. The tank is made of SUS316L or SUS304 stainless steel, internal wall is electrolytically mirror polished or mechanically polished,external wall is SUS304 fully welding insulation structure,and external surface is in mirror or matte treatment. The full seal design ensures materials are always processed at a non-polluted state.

Crystallizing Tank can be manufactured by SS304, SS316L etc .we can make it according to our client's requirement .

Components of crystallization tank

Scope of application

The crystallizing tank is used for mixing edible oil, cooling and freezing, and crystallization of finished products. It is also widely used in dairy industry, food, chemical industry and beverage industry. The heat exchange device of crystallizing tank adopts coil type and controls stirring speed to realize crystallization and separation of cottonseed oil and palm oil. The main parts include cylinder, coil and mixing device.

Product parameters

Volume （L）	Core Dia. (mm)	Jacket Cover dia (mm)	Motorpower (KW)	Reducer model	Speed RPM
30	400	500	0.6-1.1	M2	60-36
50	500	600	0.6-1.1	M3	60-36
100	550	650	1.1-1.5	M4	60-36
150	600	700	2.2	M6	60-36
200	650	750	2.2	M6	60-36
300	800	900	2.2	M6	60-36
500	900	1000	2.2	M6	60-36
800	1100	1200	4	M8	60-36
1000	1200	1300	4	M8	60-36
1500	1300	1400	4	M8	60-36
2000	1400	1500	4	M8	60-36
2500	1400	1500	7.5	BLB7.5-4-13	90
4000	1500	1600	7.5	BLB7.5-4-13	63
8000	2000	2100	15	BLB7.5-4-13	100
32000	3000	2100	37	BLB450-11-45	50-100

working principle

Crystallization tank is a crystallization equipment that requires chilled water or refrigerant water to cool down rapidly after the material is mixed and reacted. The key link is the size of the interlayer, the structure of the agitator and the material outlet form, high-precision polishing in the tank, and cleaning in the tank. There is no dead angle requirement to meet the process conditions. The company has rich design and manufacturing experience for different process requirements, and the equipment produced fully meets the requirements of GMP verification. Can produce 0.3-5m3 crystallization tank.

Clean →

Our in-house designers and engineers have produced countless great designs for customers from different industries

record →

Our in-house designers and engineers have produced countless great designs for customers from different industries

Add about 80% of the water →

Check the concentration →

Configure acid-base concentration →

Connect the in and out distributor →

Check the water delivery →

Checking and Cleaning →

Turn on the reflux pump →

Rinse with clean water →

Test

Operating procedures

1. Purpose To standardize the CIP cleaning procedures, maintain equipment, and ensure continuous and normal production.

2. Scope of application

CIP cleaning section.

3. Content

3.1 Cleaning sequence: clean water at 40°C, 2% alkali, clean water at 40°C, 0.8% acid, hot water above 90°C, and wash in sequence.

3.2 Clean and record according to the specified time.

3.3 Add about 80% of the water, that is, cover the heating coil.

3.4 Acid-base concentration:

3.4.1 Check the concentration before cleaning, if it is not enough, add an appropriate amount.

3.4.2 Decide whether to reformulate according to the degree of acid-base pollution.

3.5 Connect the in and out distributor correctly.

3.6 Always check the water delivery device to prevent blockage.

3.7 After checking the pipes and valves, the centrifugal pump can be started for cleaning.

3.8 When cleaning with acid and alkali, after cleaning, turn on the reflux pump, so that the acid and alkali flow into the acid tank and the alkali tank respectively.

3.9 Finally, rinse with clean water, and the cleaning is completed.

3.10 Use test paper to test if it is neutral.

product display

5 (7)

4 (9)

3 (8)

2 (10)

1 (9)

5 (7)

Company Features

· Wenzhou Suote Pharmaceutical And Chemical Engineering Co.,Ltd primarily focuses on the production of conical mixing tank. We have been considered as a strong competitor in this industry because of years of experience.

· Technical reserves of Wenzhou Suote Pharmaceutical And Chemical Engineering Co.,Ltd can meet the needs of domestic and foreign markets.

· Since we adopted a strict waste management plan, the waste amount has decreased significantly. This plan covers several aspects, including resources utilizing strategy, the limitation of discharge, and waste utilization. Welcome to visit our factory!

Application of the Product

The conical mixing tank produced by Wenzhou Suote is widely used in many industry sectors.

Wenzhou Suote can provide customers with one-stop solutions of high quality, and meet customers' needs to the greatest extent.

Product Comparison

Compared with other products in the industry, conical mixing tank has more obvious advantages which are reflected in the following aspects.

Enterprise Advantages

Our company has a highly educated and professional technical team. According to production demands, our team members provide related technical support to promote the production for quality products.

In order to promptly solve customers' difficulties and doubts, we provide information inquiry service and other related services, according to our advantageous resources and customers' needs.

Looking ahead, Wenzhou Suote will adhere to the business philosophy of 'expand the market with integrity, develop the business with innovation'. Besides, we will carry forward the enterprise spirit of 'loyalty, responsibility and innovation'. On the basis of independent innovation and brand building, our aim is to build a first-class brand in the industry and become a global enterprise.

Founded in Wenzhou Suote has a history of years. We have accumulated rich industry experience relying on the wisdom and skills of all members.

At present, our company has not only established a huge sales network in China, but also actively strives to open up the international market.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
