Sauce Production Line Made in China

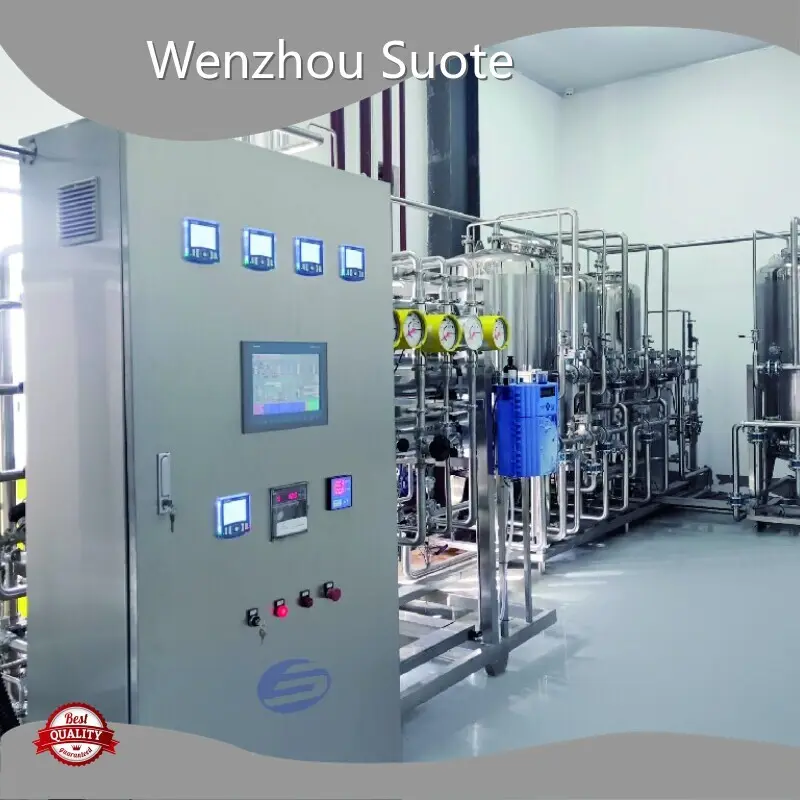

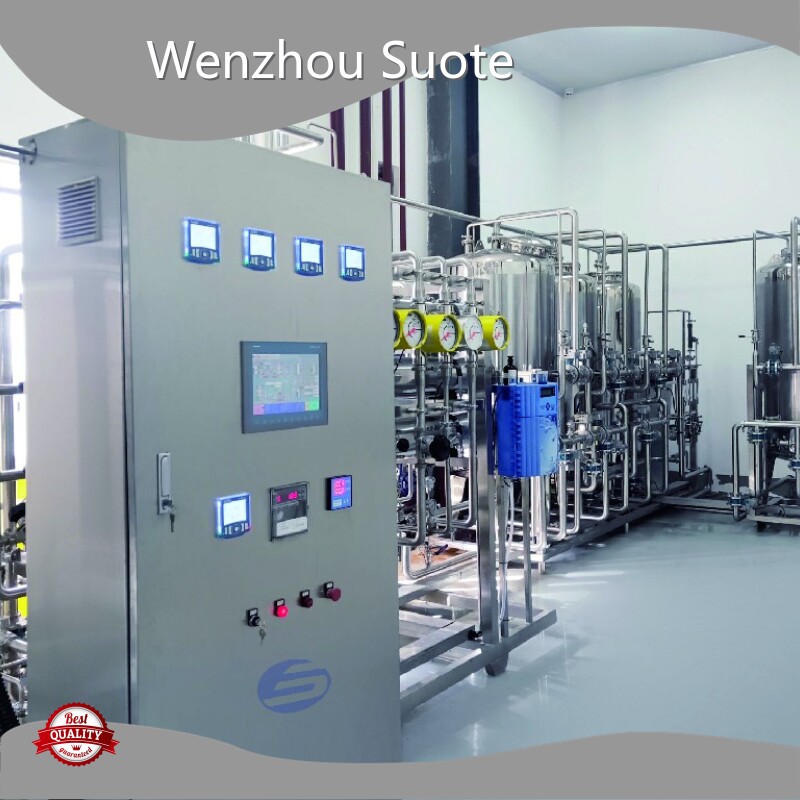

Purified Water Preparation Unit

The purified water preparation unti adopts the most advanced primary and secondary reverse osmosis + EDl process purified water treatment technology and more user-friendly 3D design, conforming to ergonomics with elegant and beautiful appearance and simple and convenient operation. lt can effectively remove all kinds of salts and impurities in water, so as to make the water produced meet the quality requirements for process water in such industries as biology.medicine, medical devices, food and purified drinking water production.The system has such advantages as high automation degree, one-touch starting,stable quality of water produced, low running costs, environmental protection and convenient maintenance.

Technical Features

1. lt adopts PLC + touch screen automatic control, featured by good stability and reliability, elegant and beautiful appearance, one-touch starting, easy and convenient operation.

2. The user-friendly 3D design conforms to ergonomics. The height and position of touch screen, switch, instrument and meter are in line with average height of people, making operation easy.

3. The operations of various components such as pumps, valves and tank liquid levels are provided with dynamic monitoring pictures. (They can be upgraded into remote monitoring if necessary.)

4. lt is provided with three levels of management authority such as administrator.engineer and operator.

5. lt is easy to switch between manual and automatic modes. lt is provided with a special alarm function to avoid misoperation by people other than operators.

6. Purified water electrical conductivity is monitored in a real-time manner.Water at the water return end is kept at a flow speed of at least 1m/s to lower too fast microbial growth at the purified water pipe network.

7. lt is provided with the user-friendly function of alarm recording and indication. In case of expired replacement cycle of filter materials, water overflow, water shortage, low pressure or over pressure, such event will be recorded the touch screen event record column. In case of abnormal situations in water quality, pressure or flow, alarms will be given.

8.Each section is provided with the function of discharging nonconforming water to the previous section to ensure stable and safe water quality. (lf water quality restores to be conforming in 5 minutes, the record will be made on the touch screen record column, and an alarm will be given when the time elapses.)

9. In order to realize no dead corner in all sections, if there is no fluctuation two hours after water overflow in the purified water tank, micro circulation in the whole system will be triggered to avoid microbial growth in the pipe because of no flow for a long time.

10.lt is provided with the water quality correction function and the function of warning in case of minimum water quality, so that no emergency will occur.

Multi-effect Water Distillator Unit

The  Multi-effect  water distillator unit is suitable for in vitro  diagnosis, hemodialysis, injection raw water, pharmaceutical water and bioengineering  laboratories in such industries as biology, medicine, medical devices and food.

Technical features

1. All parts that contact raw water, pure steam and water for injection are made of 316L.

2.The stainless steel surfaces are subject to electrochemical polishing to ensure the quality of injection water and improve equipment service life.

3. The external preheater, condenser and first effect evaporator adopt double tube sheet design, meeting cGMP requirements and effectively eliminating the possibility of low level media contaminating the system.

4. All hot surfaces are provided with heat insulation layers and surrounded by 304 stainless steel housings externally.

5. There is no moving part on the equipment, so its operation is quiet.safe and reliable.

6. lt adopts reliable PLC control and standardized procedures.

7. lt is provided with complete document verification and service system.

8. lt is easy to operate and maintain.

9. lt adopts PLC  automatic control technology to meet different control requirements of customers. Full considerations have been given to the system, from the most basic pure steam quality judgment and distribution to higher class controls such as continuous adjustment of all media, linkage with the storage system, hierarchical password control as well as control of evaporation changes.

10. Machine performance plant test: The machine test is carried out according to the stipulated procedures in the machine test workshop by simulating the actual work environment.

Pure Steam Gemerator

Automatic Dispensing Unit

Cip/sip Module

CIP/SIP system is one of the prerequisites of food Pharmacentical production sanitary standards.It can remove the active mixed pollution and insoluble particles of impurity,reduce or remove the micro chemicals and heat source that pollute the productions.GMP recommends that food and pharmaceutical companies use the CIP online cleaning system and SIP online sterilization system,which limits related industries because of the high expense in overseas completely automatically CIP/SIP system.The specialists in our company import and digest international advanced technique,and successfully make automatical CIP/SIP system with high automation,simple operation,and reasonable price.

System composition

The intelligent ClP system is a centralized system, which consists of injection water tank,ClP tank, double tube sheet heat exchanger, liquid delivery pump, retum pump, temperature controller, liquid level indicator, electrical conductivity detector, PLC touch screen, control cabinet and system valve and pipe fittings.

Biopharmacy: used for ClP/SIP in equipment and pipes for culture medium preparation, fermentation, harvest, ultrafiltration, purification,inactivation and material transfer.

Aseptic preparations: used for CIP/SlP in equipment and pipes for material preparation, material transfer and sterile connection.

Aseptic powders and injection: used for ClP/SlP in equipment and pipes for material preparation, material transfer and sterile connection.

Sterile bulk drugs: used  for ClP/SlP in equipment and pipes for material preparation, material transfer and sterile connection It improves process traceability, effective validates and revalidates reliability of production equipment and reduces production risks.

Modular Distribution Unit

According to URS, we provide overall material distribution solutions,clean pipes, valves, and instruments and meters. The sanitary dead corner, ClP/SlP,electric control and site construction quality can meet requirements for new GMP and EU GMP certification. In addition, we supply full sets of qualification documents.
