Product details of the chemical processing equipment
Product Description
Tested on several parameters of quality, the provided chemical processing equipment is available at pocket-friendly prices for the clients. With its excellent quality and unsurpassed performance, this product sets the standard for similar products. Sample service is available for our chemical processing equipment.
Design feature

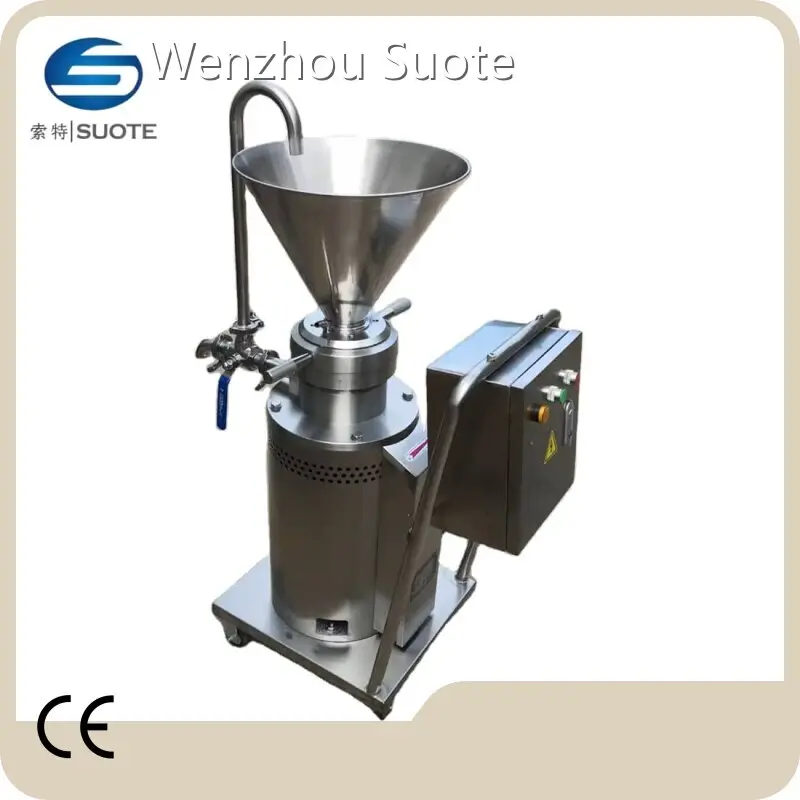

◆ Components: Vertical colloidal grinding is mainly composed of shell, stator, rotor, regulating mechanism, cooling mechanism, motor and other parts. Its core components such as moving grinding plate and static grinding plate, mechanical seals and other materials are excellent, usually made of stainless steel or special materials, to ensure corrosion resistance and non-toxicity.
◆ Structure form: vertical colloidal grinding adopts vertical split structure, long running time, not easy to cause the axis eccentric, and easy to replace and maintain. The motor part can be
specially designed as needed, such as adding a water retaining plate to prevent leakage.
Vertical colloid mill components
Applied range
Vertical colloid grinding has a wide range of applications, including but not limited to the following fields:
◆ Food industry: used for the processing of dairy products, chocolate, bean sauce, jam, peanut butter, cream drinks and other products.
◆ Chemical industry: used for pigment, lubricating oil, spices, dye, emulsified asphalt, emulsified rubber, catalyst, paint coating and other materials treatment.
◆ Daily chemical industry: used in the production of shoe oil, toothpaste, cosmetics, balsam, soap, detergent and other products.
◆ Other industries: also applied in the construction industry, paper industry,
plastic industry, battery industry and other fields.
Product parameters
| Model | JML-50 | JML-80 | JML-100 | JML-120 | JMF-80 | JMF-100 | JMF-120 | JMF-140 | JMF-180 | ||
| Emulsification fineness um(single cycle or multi-cycle) | 5~40 | 3~40 | 2~40 | 2~40 | 3~40 | 2~40 | 2~40 | 2~40 | 2~40 | ||
| Adjustment range mm | 1-0.01 | 1-0.01 | 1-0.01 | 1-0.01 | 1-0.01 | 1-0.01 | 1-0.01 | 1-0.01 | 1-0.01 | ||
| Output t/h change according to materials | 0.01-0.2 | 0.3-1 | 0.5-2 | 0.7-3 | 0.3-1 | 0.5-2 | 0.7-3 | 1-4 | 2-5 | ||
| Motor | Power kw | 1.1 | 3 | 5.5 | 7.5 | 4 | 5.5 | 7.5 | 11 | 15 | |
| Pressurev | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | ||
| Stirringspeedr/min | 2880 | 2880 | 2880 | 2880 | 2880 | 2880 | 2880 | 2880 | 2880 | ||
| Grinding diameter mm | $50 | $80 | $100 | $120 | 80 | $100 | $120 | $140 | $180 | ||
| Discharge port diameter(hour) | $15 | $25 | $32 | $40 | 625 | 632 | 640 | 640 | 665 | ||
| Cooling water pipe(hour) | $1/8" | 61/4" | Φ1/4" | 61/4" | Φ1/4" | Φ1/4" | Φ1/4" | $1/4° | $1/4" | ||
| Dimensions | Length mm | 420 | 520 | 560 | 560 | 640 | 750 | 750 | 820 | 980 | |
| Width mm | 280 | 400 | 420 | 420 | 550 | 620 | 620 | 700 | 800 | ||
| Height mm | 760 | 900 | 950 | 950 | 1030 | 1080 | 1080 | 1250 | 1550 | ||
| Weight kg | 45 | 84 | 113 | 135 | 210 | 275 | 295 | 325 | 450 | ||
Workflow and considerations
product display
Company Advantage
• Wenzhou Suote enjoys a superior location with traffic convenience, which creates advantages for outward sales.
• The development of economic globalization, especially the increasingly frequent economic exchange, has provided broad prospects for our product market and enabled products to be exported to many foreign countries.
• Wenzhou Suote has professional personnel to provide consulting services in terms of product, market and logistics information.
• Having developed rapidly for years, Wenzhou Suote is now a modern enterprise with the scientific management system and superb processing technology.
• Wenzhou Suote has a professional team with excellent business skills and strong comprehensive quality. We strive to achieve rapid development by giving full play to each member's potential.
Wenzhou Suote has discount for large-quantity order of all kinds of The main products include tanks like fermentation tanks,TK tanks,powder tanks,mechanical or magnetic stirring dosing tanks,extraction tanks,stainless steel reactors,concentrators and other tank equipment,heat exchange equipment such as column and tube heat exchangers,PLC control systems,various types of filters and purification area dedicated to various types of pipes,fittings,clamps and diaphragm valves,tank bottom valves and other engineering supporting products. If necessary, please contact us as soon as possible.
