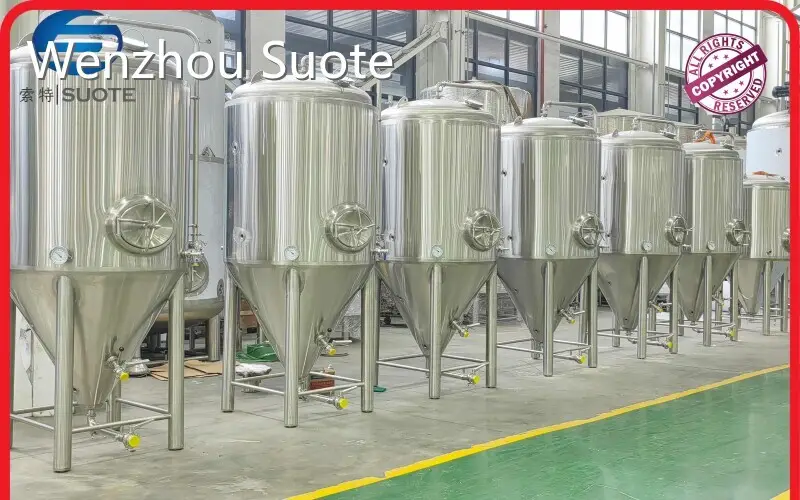

Beer production process: Saccharification (water + crushed malt → saccharification decomposes protein and starch. One saccharification process takes about 7-8 hours), filtration, whirlpool sedimentation, cooling, fermentation tank (fermentation period is 7-12 days.), and beer output.
Raw material preparation: mainly includes the purchase, storage and pretreatment of barley (sometimes added with rice, corn and other grains). Barley should be stored for 2-3 months after harvest to stabilize its quality. Malt preparation: The barley is made by screening, washing, soaking, germination, drying and rooting. In this process, the insoluble starch in barley is converted into soluble sugars, in preparation for the subsequent saccharification process.
Crushing: malt and rice and other raw materials are crushed by the crusher to increase their surface area and facilitate the subsequent saccharification and gelatinization process. Glyification and gelatinization: the crushed raw material is mixed with water and heated in a saccharification pot so that the enzymes in the malt convert starch into fermentable sugar. At the same time, some raw materials (such as rice) will be gelatinized to improve the efficiency of saccharification. Male filtration: the saccharized mash is used to separate the wort from the mash through the filter tank or filter press to obtain the clarified wort.
Boil: Heat the wort in a boiling pot and add hops to add bitterness and aroma. The boiling process also helps to sterilize the wort and solidify the protein. Circular precipitation and cooling: The boiled wort passes through a circular precipitation tank to remove hop fragments and hot coagulants. The wort was then cooled to a suitable temperature for yeast inoculation. Fermentation: The cooled wheat juice is inoculated with beer yeast and the fermentation process begins. Yeast converts the sugar in the wort into alcohol and carbon dioxide, creating a characteristic beer flavor. The fermentation process usually lasts from days to weeks, depending on the type of beer and the production process.
Pre-filling treatment: the fermented beer is centrifuged and filtered to remove impurities such as yeast and macromolecular protein in the fermentation liquid to get clear and transparent beer. Then, a pasteurization treatment was performed as needed to extend the shelf life of the beer. Filling and packaging: The processed beer is filled into containers such as bottles, cans or barrels. During the filling process, the sanitary conditions need to be strictly controlled to avoid the contamination of the beer. After filling, seal, label and pack to make the finished beer.
Production Lines Accessory:
cbc74e77626d8b9df2a75a8858cb90d
cb57fd78cb8c398271ae95341a08da7
c4daaa1d8398a89b2808a91c54192cf
b62b42873dd13cd12f9b3a0788e82e6
2691d3cd238039aaafbfe97000d445a
59da2443ae856cf5237e0c294b013db
0bf985b3482ed488cdfef5fb72ad48a
14b96b111f617e79d8cfc6e7c14e2c8
| Machine structure: |
Made of Food grade Stainless Steel (L 304) |
| Electrical Specifications: |
3 Phase | 380 V | 50-60 Hz |
| Bearing: |
SKF |
| Engines and Gearboxes: |
Turkish industry with German franchise |
| Main Controller: |
Siemens |
| Touch Screen and Control: |
Siemens touch screen control |
| Pneumatic Control Systems: |
Festo |
Company Advantages
· Wenzhou Suote fruit juice production line is precisely made by the advanced equipment.
· The strict quality management system ensures the product to maintain a desired level of excellence.
· The popularity of fruit juice production line also can not be achieved without the contribution of service team.
Company Features
· Wenzhou Suote is recognized by numerous people at home and abroad in fruit juice production line market.
· Professional technique team builds up Wenzhou Suote Pharmaceutical And Chemical Engineering Co.,Ltd's solid technical strength and competitiveness.
· We know that corporate social responsibility goes beyond our position as a manufacturer and that our employees, customers, and the wider community expect us to set an example. We will try our best. Please contact.
Application of the Product
Wenzhou Suote's fruit juice production line can be used in multiple scenes.
Wenzhou Suote is committed to providing customers with high-quality The main products include tanks like fermentation tanks,TK tanks,powder tanks,mechanical or magnetic stirring dosing tanks,extraction tanks,stainless steel reactors,concentrators and other tank equipment,heat exchange equipment such as column and tube heat exchangers,PLC control systems,various types of filters and purification area dedicated to various types of pipes,fittings,clamps and diaphragm valves,tank bottom valves and other engineering supporting products as well as one-stop, comprehensive and efficient solutions.
