Stainless Steel Vacuum Filter Food Grade For Chemical Medicine Industry
High efficiency filtration: vacuum filter can efficiently remove solid particles and impurities from liquid and improve product quality.
Environmental protection and energy saving: By reducing the discharge of waste water and waste residue, vacuum filters can help to achieve green production. At the same time, due to its efficient filtering performance, it can also reduce the energy consumption of the subsequent processing process.
Easy to operate and maintain: The vacuum filter is relatively easy to operate, and it is easy to clean and maintain.
Wide range of application: vacuum filter can be used in a variety of industries and fields of filtration needs, such as chemical industry, medicine, food, environmental protection, etc.
Operational principle
The vacuum filter generates a negative pressure environment through the vacuum system (such as the vacuum pump). When the liquid to be filtered (e. g., suspension or solution) is introduced into the filter, the solid particles or impurities in the liquid are trapped on the filter medium (such as filter cloth or filter paper), while the clean filtrate flows into the collection container through the filter medium. As the filtration process proceeds, solid particles will gradually accumulate on the filtration medium, forming filter cakes, which may increase the filtration resistance and reduce the filtration efficiency. Therefore, regular cleaning or replacement of the filter media is necessary.
Vacuum filter components
Type and structure
Vacuum filters come in multiple types and structures to accommodate different filtration requirements. Common types include intermittent vacuum filters and continuous vacuum filters. Intermittent vacuum filter is suitable for small batch and many kinds of filtration tasks, while continuous vacuum filter is more suitable for large-scale, continuous production process.
Structurally, the vacuum filter usually consists of a filter chamber, a filter medium, a collection container, a vacuum system, and the necessary control system and auxiliary equipment. The filter chamber is a space for the liquid to be filtered, and the filter medium is located between the filter chamber and the collection container to trap solid particles. The collection container is used to receive the clean filtrate, while the vacuum system is responsible for generating and maintaining a negative pressure environment in the filter room.
Product parameters
|
Vacuum Filter |
|
|
Product name |
Aseptic Vacuum System Filter |
|
Material |
Stainless Steel 304L/316L |
|
Cartridge length |
10'';20'';30'';40'' |
|
Surface |
Matte OD, Mirror OD |
|
Acting Mode |
Manual or Pneumatic or Electrical |
|
Raw Material |
Forging or Casting |
|
Sealing Material |
Silicone, EPDM,PTFE, NBR |
|
Standard |
SMS,ISO. AS,BS,3A |
|
Application |
Filter |
|
Features |
Sanitary efficient flow Simple cleanup Quick to disassemble and easy to assemble |
Application instances and considerations
When dealing with flammable, explosive or toxic and harmful liquids, corresponding safety measures should be taken to ensure the safety of personnel and equipment.
* Scope of application: CIP cleaning section.

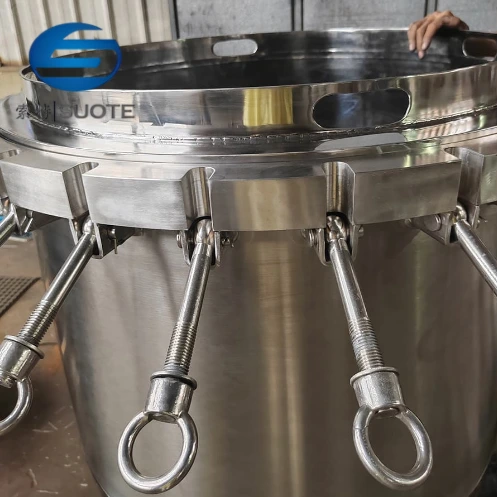

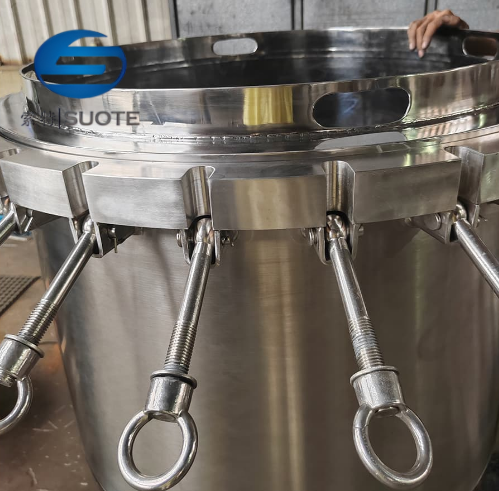

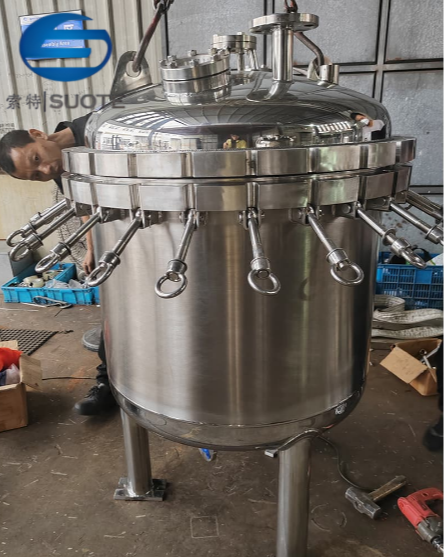

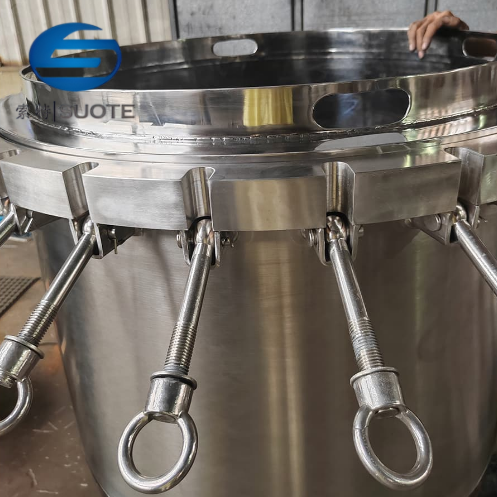

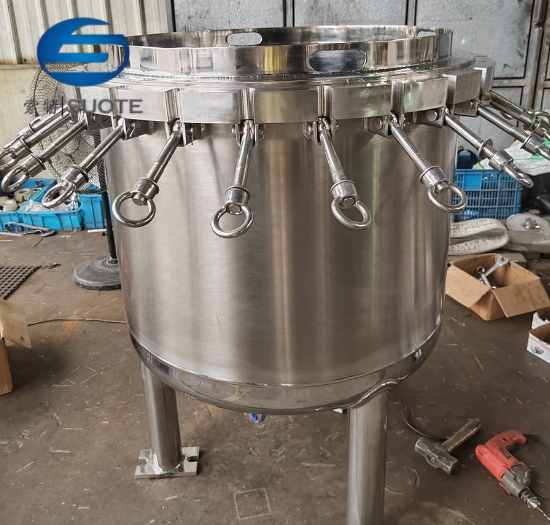

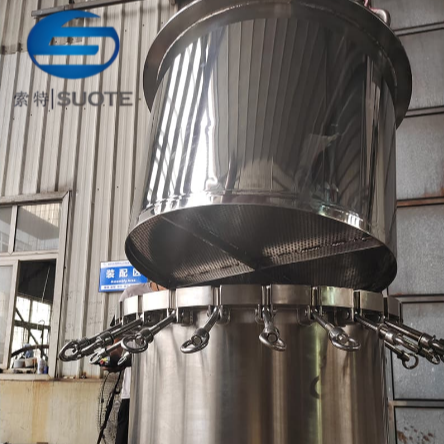

product display
Production Line
Processing Equipment
