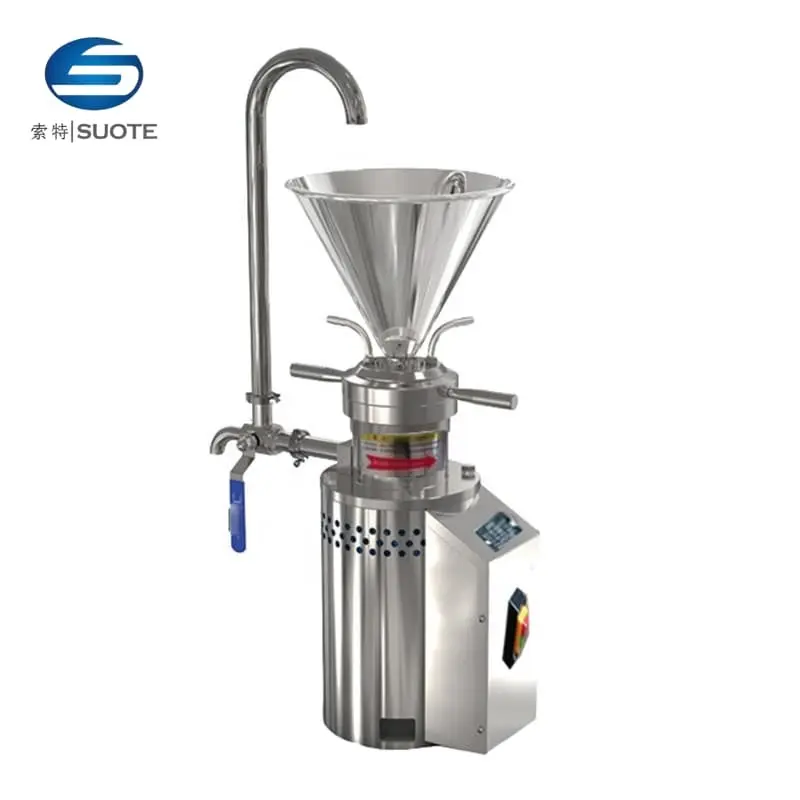

Colloid Mill Made in China
Design feature
◆ Components: Vertical colloidal grinding is mainly composed of shell, stator, rotor, regulating mechanism, cooling mechanism, motor and other parts. Its core components such as moving grinding plate and static grinding plate, mechanical seals and other materials are excellent, usually made of stainless steel or special materials, to ensure corrosion resistance and non-toxicity.
◆ Structure form: vertical colloidal grinding adopts vertical split structure, long running time, not easy to cause the axis eccentric, and easy to replace and maintain. The motor part can be
specially designed as needed, such as adding a water retaining plate to prevent leakage.

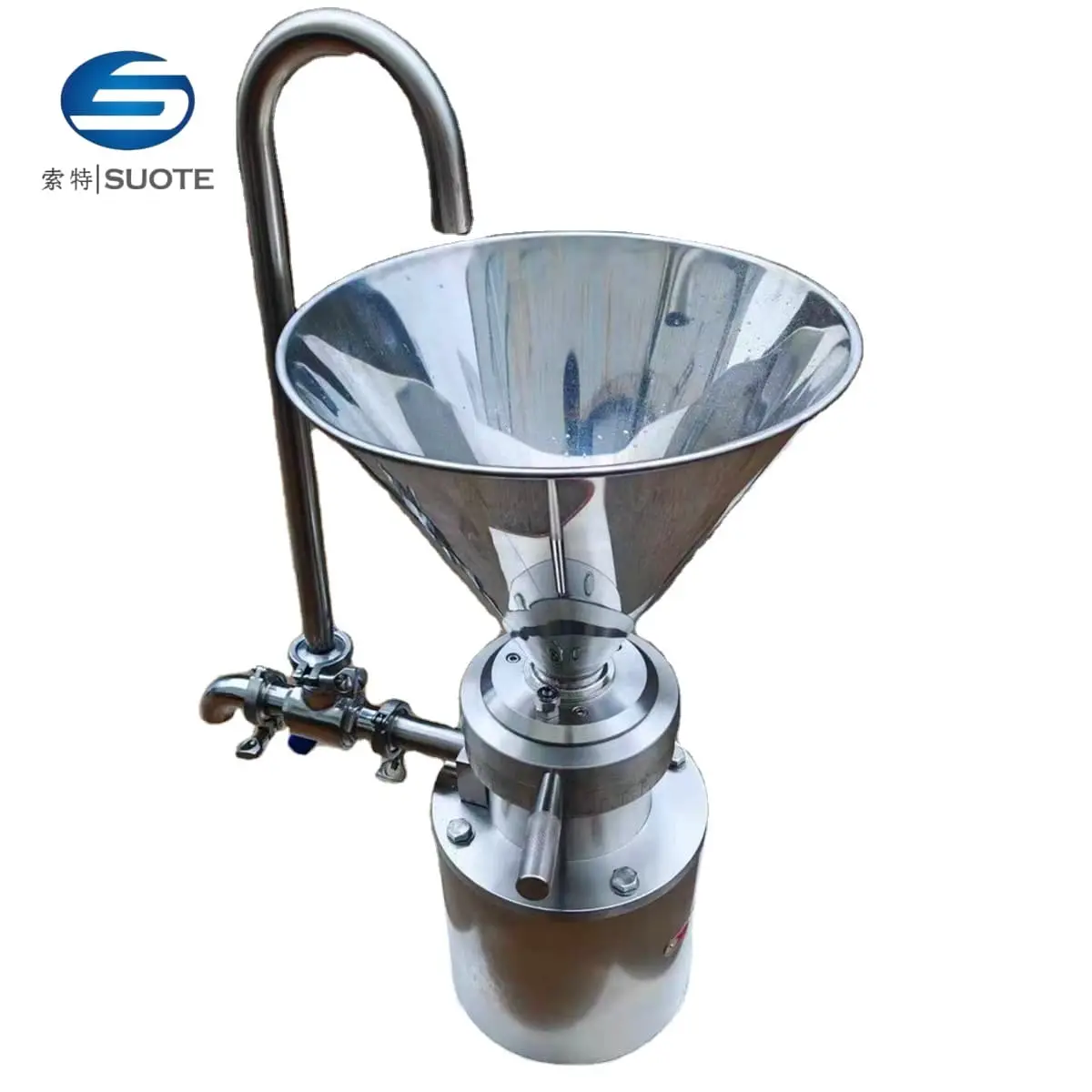

Vertical colloid mill components
Applied range
Vertical colloid grinding has a wide range of applications, including but not limited to the following fields:
◆ Food industry: used for the processing of dairy products, chocolate, bean sauce, jam, peanut butter, cream drinks and other products.
◆ Chemical industry: used for pigment, lubricating oil, spices, dye, emulsified asphalt, emulsified rubber, catalyst, paint coating and other materials treatment.
◆ Daily chemical industry: used in the production of shoe oil, toothpaste, cosmetics, balsam, soap, detergent and other products.
◆ Other industries: also applied in the construction industry, paper industry,
plastic industry, battery industry and other fields.
Product parameters
| Model | JML-50 | JML-80 | JML-100 | JML-120 | JMF-80 | JMF-100 | JMF-120 | JMF-140 | JMF-180 | ||
| Emulsification fineness um(single cycle or multi-cycle) | 5~40 | 3~40 | 2~40 | 2~40 | 3~40 | 2~40 | 2~40 | 2~40 | 2~40 | ||
| Adjustment range mm | 1-0.01 | 1-0.01 | 1-0.01 | 1-0.01 | 1-0.01 | 1-0.01 | 1-0.01 | 1-0.01 | 1-0.01 | ||
| Output t/h change according to materials | 0.01-0.2 | 0.3-1 | 0.5-2 | 0.7-3 | 0.3-1 | 0.5-2 | 0.7-3 | 1-4 | 2-5 | ||
| Motor | Power kw | 1.1 | 3 | 5.5 | 7.5 | 4 | 5.5 | 7.5 | 11 | 15 | |
| Pressurev | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | ||
| Stirringspeedr/min | 2880 | 2880 | 2880 | 2880 | 2880 | 2880 | 2880 | 2880 | 2880 | ||
| Grinding diameter mm | $50 | $80 | $100 | $120 | 80 | $100 | $120 | $140 | $180 | ||
| Discharge port diameter(hour) | $15 | $25 | $32 | $40 | 625 | 632 | 640 | 640 | 665 | ||
| Cooling water pipe(hour) | $1/8" | 61/4" | Φ1/4" | 61/4" | Φ1/4" | Φ1/4" | Φ1/4" | $1/4° | $1/4" | ||
| Dimensions | Length mm | 420 | 520 | 560 | 560 | 640 | 750 | 750 | 820 | 980 | |
| Width mm | 280 | 400 | 420 | 420 | 550 | 620 | 620 | 700 | 800 | ||
| Height mm | 760 | 900 | 950 | 950 | 1030 | 1080 | 1080 | 1250 | 1550 | ||
| Weight kg | 45 | 84 | 113 | 135 | 210 | 275 | 295 | 325 | 450 | ||
Workflow and considerations

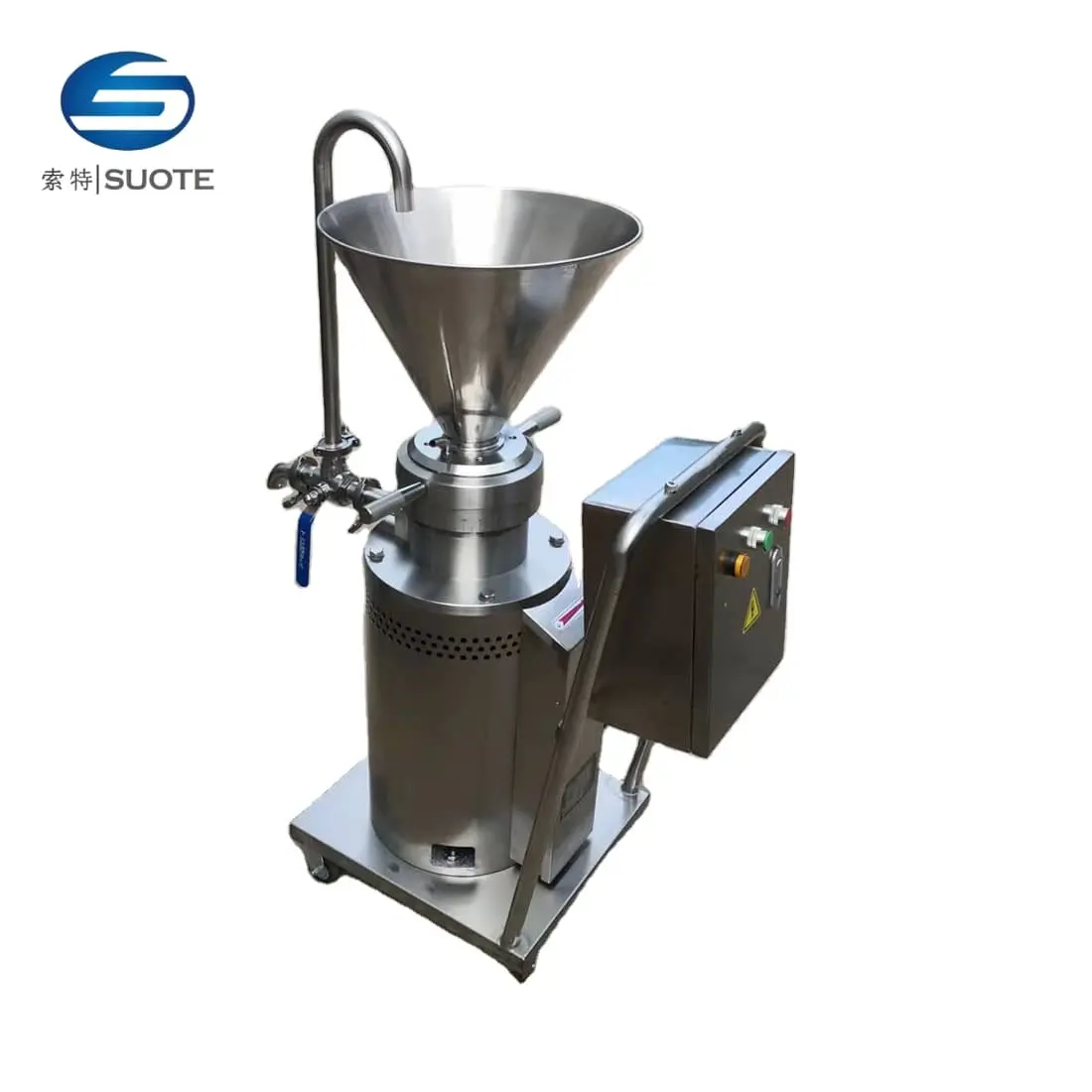

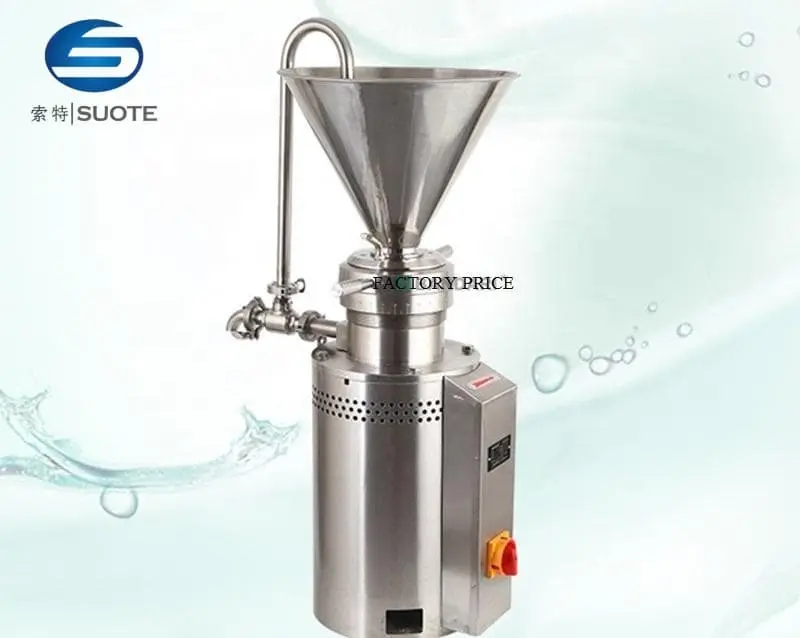

product display
Company Advantages
· Wenzhou Suote colloid mill is manufactured utilizing premium quality materials sourced from the certified vendors.
· The product is tested for functionality and safety.
· Wenzhou Suote Pharmaceutical And Chemical Engineering Co.,Ltd is also known for its incredible efficiency on customer service.
Company Features
· Wenzhou Suote Pharmaceutical And Chemical Engineering Co.,Ltd is internationally outstanding in the field of colloid mill.
· Over the years, we have been fortunate to attract some of the most talented professionals in the colloid mill industry. They are dedicated to proving the very best service and products for our clients.
· We are not a company that only focuses on self-development. Besides business development, we try our best to donate money, products, or even services to our society.
Application of the Product
Wenzhou Suote's colloid mill can be used in multiple industries.
Wenzhou Suote has been engaged in the production of The main products include tanks like fermentation tanks,TK tanks,powder tanks,mechanical or magnetic stirring dosing tanks,extraction tanks,stainless steel reactors,concentrators and other tank equipment,heat exchange equipment such as column and tube heat exchangers,PLC control systems,various types of filters and purification area dedicated to various types of pipes,fittings,clamps and diaphragm valves,tank bottom valves and other engineering supporting products for many years and has accumulated rich industry experience. We have the ability to provide comprehensive and quality solutions according to actual situations and needs of different customers.
