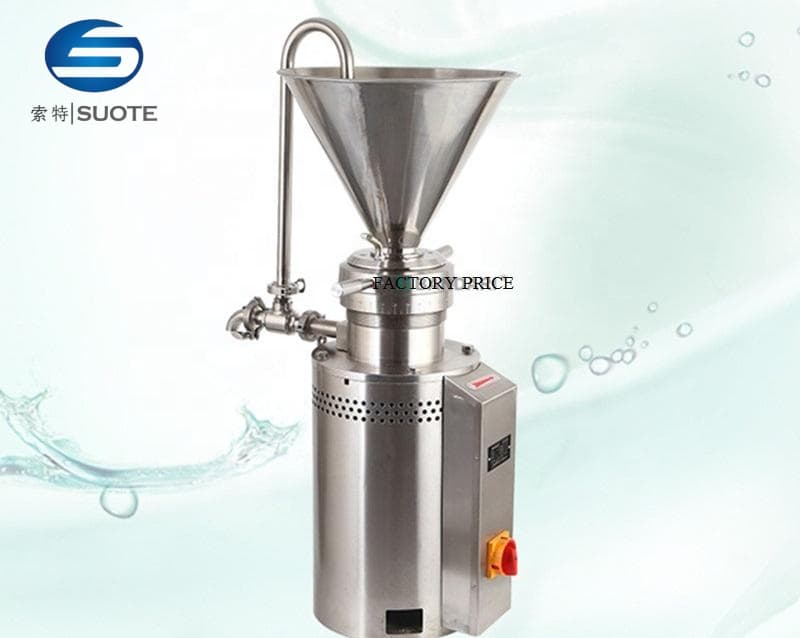

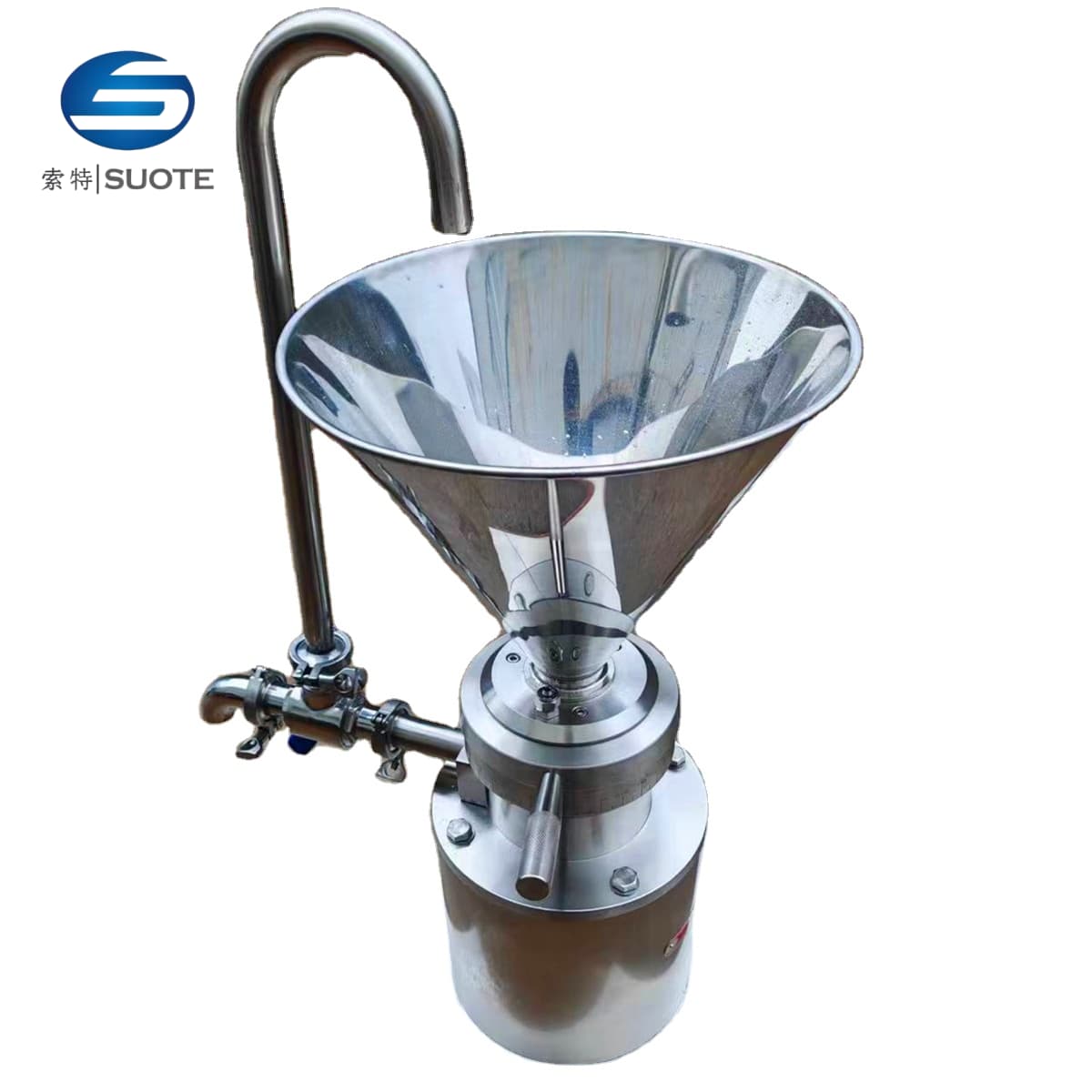

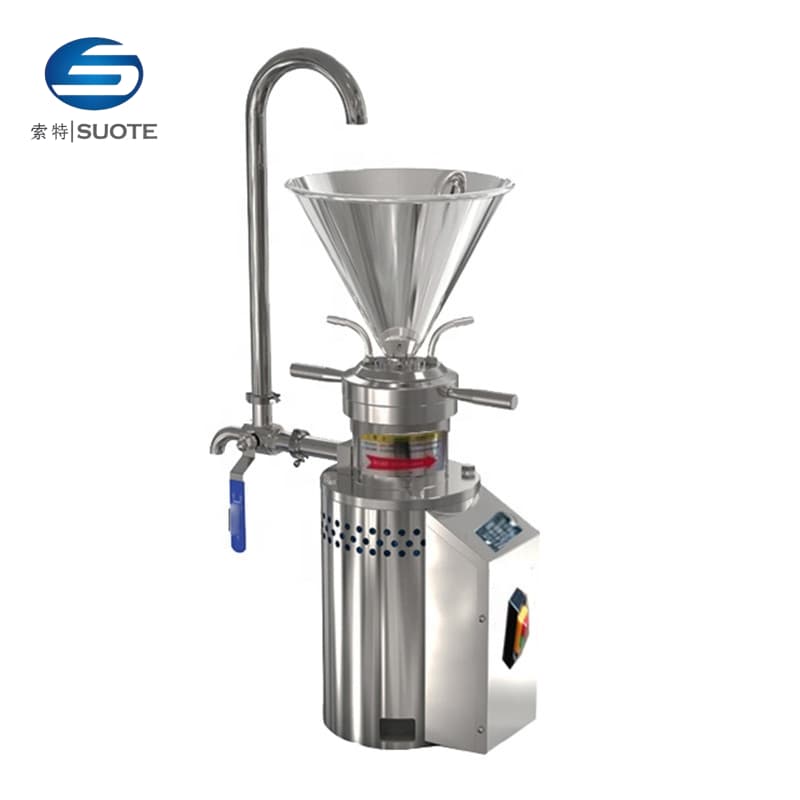

Stainless Steel Vertical Colloid Mill For Grinding Nut Paste Jam
The basic principle of vertical colloidal grinding is that the fluid or semi-fluid material through high-speed relative moving fixed teeth and moving teeth, so that the material is subjected to strong shear force, friction force and high frequency vibration, so as to be effectively crushed, emulsified, homogeneous and mixed.
Design feature
◆ Components: Vertical colloidal grinding is mainly composed of shell, stator, rotor, regulating mechanism, cooling mechanism, motor and other parts. Its core components such as moving grinding plate and static grinding plate, mechanical seals and other materials are excellent, usually made of stainless steel or special materials, to ensure corrosion resistance and non-toxicity.
◆ Structure form: vertical colloidal grinding adopts vertical split structure, long running time, not easy to cause the axis eccentric, and easy to replace and maintain. The motor part can be
specially designed as needed, such as adding a water retaining plate to prevent leakage.
Vertical colloid mill components
Applied range
Vertical colloid grinding has a wide range of applications, including but not limited to the following fields:
◆ Food industry: used for the processing of dairy products, chocolate, bean sauce, jam, peanut butter, cream drinks and other products.
◆ Chemical industry: used for pigment, lubricating oil, spices, dye, emulsified asphalt, emulsified rubber, catalyst, paint coating and other materials treatment.
◆ Daily chemical industry: used in the production of shoe oil, toothpaste, cosmetics, balsam, soap, detergent and other products.
◆ Other industries: also applied in the construction industry, paper industry,
plastic industry, battery industry and other fields.
Product parameters
| Model | JML-50 | JML-80 | JML-100 | JML-120 | JMF-80 | JMF-100 | JMF-120 | JMF-140 | JMF-180 | ||
| Emulsification fineness um (single cycle or multi-cycle) | 5~40 | 3~40 | 2~40 | 2~40 | 3~40 | 2~40 | 2~40 | 2~40 | 2~40 | ||
| Adjustment range mm | 1-0.01 | 1-0.01 | 1-0.01 | 1-0.01 | 1-0.01 | 1-0.01 | 1-0.01 | 1-0.01 | 1-0.01 | ||
| Output t/h change according to materials | 0.01-0.2 | 0.3-1 | 0.5-2 | 0.7-3 | 0.3-1 | 0.5-2 | 0.7-3 | 1-4 | 2-5 | ||
| Motor | Power kw | 1.1 | 3 | 5.5 | 7.5 | 4 | 5.5 | 7.5 | 11 | 15 | |
| Pressurev | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | ||
| Stirring speed r/min | 2880 | 2880 | 2880 | 2880 | 2880 | 2880 | 2880 | 2880 | 2880 | ||
| Grinding diameter mm | $50 | $80 | $100 | $120 | 80 | $100 | $120 | $140 | $180 | ||
| Discharge port diameter(hour) | $15 | $25 | $32 | $40 | 625 | 632 | 640 | 640 | 665 | ||
| Cooling water pipe(hour) | $1/8" | 61/4" | Φ1/4" | 61/4" | Φ1/4" | Φ1/4" | Φ1/4" | $1/4° | $1/4" | ||
| Dimensions | Length mm | 420 | 520 | 560 | 560 | 640 | 750 | 750 | 820 | 980 | |
| Width mm | 280 | 400 | 420 | 420 | 550 | 620 | 620 | 700 | 800 | ||
| Height mm | 760 | 900 | 950 | 950 | 1030 | 1080 | 1080 | 1250 | 1550 | ||
| Weight kg | 45 | 84 | 113 | 135 | 210 | 275 | 295 | 325 | 450 | ||
