Product details of the concentration equipment
Quick Detail
Wenzhou Suote concentration equipment is designed by experienced engineers, who have in-depth knowledge about the industrial specifications. We have quality assurance to ensure the high quality of this product. The concentration equipment produced by Wenzhou Suote can be used in many fields. Our technician will teach you how to operate concentration equipment step by step.
Product Information
Compared with other ordinary products, the concentration equipment produced by Wenzhou Suote has the following advantages.
use
This concentrator is suitable for the concentration of liquid materials such as traditional Chinese medicine, Western medicine, starch sugar, food and dairy products, and is especially suitable for low-temperature vacuum concentration of heat-sensitive materials.
Drawing Description of Hot Reflux Extraction Concentrator
1. Extracting tank
2.Sight glass
3. Vacuum switcher
4. Cooler
5. Hot backset current condenser
6. Butterfly valve
7. Defoamer machine
8. Reflux pipe
9. Butterfly valve
10. Concentrating Evaporator
11. Heater
12. Sight glass
13. Vacuum buffer tank
14. Wacuum pump in water annular style
SN II series dual-effect concentrator Equipment features
1. Energy saving benefits, calculated based on the SN II-1000 type, save about 2,500 tons of steam, about 70,000 tons of water, and about 60,000 kilowatt hours of electricity annually, which is equivalent to RMB 80,000-100,000 (compared with single effect).
2. This concentrator adopts a natural circulation evaporation method with negative pressure external heating. It has a fast evaporation speed and a large concentration specific ratio, which can reach 1.1-1.3 (general traditional Chinese medicine ointment).
3. This concentrator adopts two-effect simultaneous evaporation, and the secondary steam is used. The total energy consumption is reduced by 40% compared with the single-effect concentrator. One year's energy saving fee can recover the entire investment of this concentrator.
4. Multifunctional operation features: (1) The alcohol concentration can be recovered around 80%: (2) The first and second effects can be combined repeatedly to collect the paste; (3) Intermittent and continuous feeding can be performed.
5. The parts in contact between this concentrator and materials are made of stainless steel and comply with GMP requirements. The appearance is beautiful. The heater and evaporator are equipped with thermal insulation. The outer shell of the thermal insulation is made of stainless steel plate, and the surface is treated with mirror and matte finish.
According to customer requirements, we launched a first-effect two-effect energy-saving concentrator with paste collection. During the normal concentration process, close the valve connecting the nozzle and circulation pipe between the first-effect heating chamber and the evaporation chamber. The material enters the first-effect evaporation chamber and is heated by the jacket of the first-effect evaporation chamber. It is concentrated under normal pressure or under reduced pressure in the first-effect evaporation chamber to obtain a concentrated paste with a higher specific gravity (1.35-1.45).
Product parameters
JN model series multifunctional alcohol concentrator Equipment features
1. Alcohol recovery: The recovery capacity is large, and the vacuum operation method is adopted to improve the process flow of the equipment. The recovery rate can reach 95%, making the alcohol loss rate less than 5%. Energy consumption is reduced by 30%, and it is an energy-saving equipment with small investment and high recycling efficiency.
2. Concentrated liquid materials: This equipment adopts external heating natural circulation and vacuum negative pressure evaporation methods, which can have a fast evaporation speed and a concentration specific gravity of up to (1.3); liquid materials can be concentrated without foam in a fully sealed environment. Use this equipment to concentrate The medicinal liquid that comes out is pollution-free and has a strong medicinal flavor. Easy to clean, just open the upper and lower heater covers. It is simple to operate, occupies a small area, and has a beautiful appearance. The heater, evaporator, and insulation are completely shipped from the factory. The parts in contact with the liquid material are all made of stainless steel AISI304. The insulation is made of polyurethane foam or pearl cotton, and the outer surface is frosted and matte. Processed in compliance with GMP pharmaceutical standards.

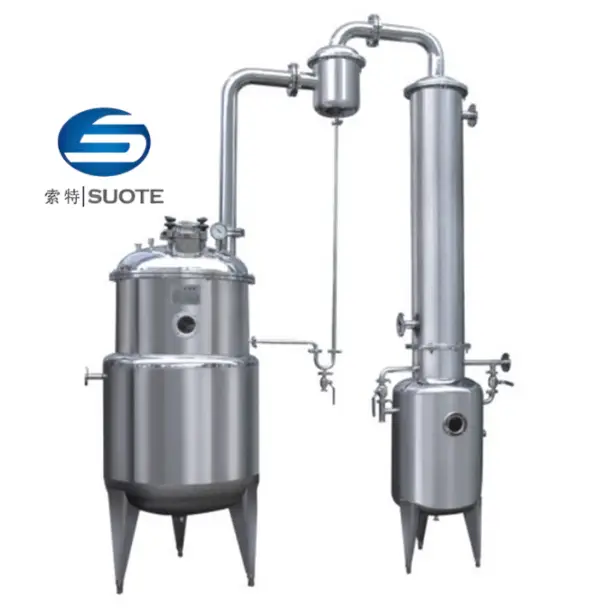

product display
Company Introduction
Located in wen zhou, Wenzhou Suote Pharmaceutical And Chemical Engineering Co.,Ltd mainly produces The main products include tanks like fermentation tanks,TK tanks,powder tanks,mechanical or magnetic stirring dosing tanks,extraction tanks,stainless steel reactors,concentrators and other tank equipment,heat exchange equipment such as column and tube heat exchangers,PLC control systems,various types of filters and purification area dedicated to various types of pipes,fittings,clamps and diaphragm valves,tank bottom valves and other engineering supporting products. Our company takes 'service-oriented, quality first' as our business philosophy, and our spirit is 'unity, cooperation, innovation and improvement'. During the development, we constantly learn and absorb international advanced management experience. Moreover, we insist on complementing with all parts of society, to create a first-class corporate brand. Wenzhou Suote has a large number of professional talents to make contributions to corporate development with the spirit of dedication, exquisite technology, and meticulous quality. Wenzhou Suote has been engaged in the production of The main products include tanks like fermentation tanks,TK tanks,powder tanks,mechanical or magnetic stirring dosing tanks,extraction tanks,stainless steel reactors,concentrators and other tank equipment,heat exchange equipment such as column and tube heat exchangers,PLC control systems,various types of filters and purification area dedicated to various types of pipes,fittings,clamps and diaphragm valves,tank bottom valves and other engineering supporting products for many years and has accumulated rich industry experience. Based on that, we could provide comprehensive and excellent solutions according to actual situations and the needs of different customers.
Don't forget to contact us to order.
