Product details of the conveying equipment

Product Information

Each Wenzhou Suote conveying equipment is tailored to your needs in accordance with environmentally friendly manufacturing practices.

Composition and structural characteristics

Sanitary centrifugal pumps are mainly composed of pump body, pump cover, impeller, mechanical seal, motor and other parts. The design adopts a sleek, rigid structure and thick wall design. Each part is connected by bolts. There are four adjustable support feet under the base plate for easy installation without the need for a fixed installation foundation. During installation, the outlet pipe can be installed in a vertical or horizontal direction according to different needs.

The mechanical seal of the centrifugal pump is customized with imported high-quality stainless steel and silicon carbide, which greatly improves the wear resistance and self-lubricating properties and extends the service life. During production, the pump body and impeller are precision cast as a whole, and all parts are surface treated. Special fixtures are used to ensure dimensional clearance during installation.

The shaft seal adopts an open structure, so even if there is a small amount of leakage at the shaft seal, it can be detected in time. Even if it is not noticed in a short period of time, it will not overflow into the motor, thus ensuring the service life of the motor.

This series of pumps are finely made and not easy to scale, especially suitable for CIP cleaning.

This series of pumps has a simple structure, easy disassembly, low noise, high efficiency, gentle and gentle material handling, meets food hygiene requirements and ensures the original flavor of the product.

Centrifugal pump components

SIZEmm	POWER Kw
SIZEmm	0.55	0.75	1.1	1.5	2.2	3	4	5.5	7.5	11	15
A	265	305	305	320	320	375	375	425	425	555	555
B	199	244	244	244	244	284	284	344	344	374	374
C	112	125	125	140	140	160	190	216	216	254	254
D	160	208	208	208	215	240	240	330	330	430	430
E	65	57	57	71	71	74	74	67	67	68	68
F	49.5	61.5	61.5	70	70	83	83	91.5	91.5	101.5	101.5
G	131	135	135	162	162	173	173	176	176	207	207
H	437.7	481	481	516	516	573.5	573.5	650	650	803.5	803.5
I	35.3	81	81	110	102.5	113	113	105	105	116	116
J	136	155	155	165	165	175	187	217	217	265	265
K	275	290	290	330	330	370	370	430	430	545	545

1. Pump body

2. Shaft cap

3. Impeller

4. Mechanical sealdynamic ring

5. Pump body o ring

6. Mechanical seal static ring

7. Impeller seat

8. Static ring seat

9. Spring

10. Retainer ring

11. Snap spring

12. Namepla te

13. Support

14. Pump shaft

15. Straining ring

16. Staining sleeve

17. Motor

18. Pump foot

19. Housing

Product parameters

Type	Centrifugal Pump
Product name	Sanitary Centrifugal Pump
Material	Stainless Steel 304L/316L
Horsepower	0.75kw/1.5kw/2.2kw/5kw etc
Size	437.7-803.5mm199-374mm165-555mm
Max.Head	>150m
Max.Capacity	200-300 L/min
Working Pressure	Middle Pressure Pump
Usage	Dairy,food,beverage,cosmetic
Voltage	220V-480V
Exit size	DN40 OR Customizable

Materials and Technical Parameters

Material

Overfluid material: AIS1316 stainless steel, AIS1304 stainless steel Other parts of the material: AISI304 stainless steel Surface finish: the overflow parts are 0.6pm (except for other customer requirements), and the outer surface is matte Overliquid sealing material: EPpropylene rubber and silicone rubber Mechanical seal: silicon carbide

Technical parameter

Adaptation temperature range: -10℃ ~115℃ Maximum import pressure: 0.5 Mpa Noise (at 1 m) less than 90dB (A)

Clean →

Our in-house designers and engineers have produced countless great designs for customers from different industries

record →

Our in-house designers and engineers have produced countless great designs for customers from different industries

Add about 80% of the water →

Check the concentration →

Configure acid-base concentration →

Connect the in and out distributor →

Check the water delivery →

Checking and Cleaning →

Turn on the reflux pump →

Rinse with clean water →

Test

Operating procedures

1. Purpose To standardize the CIP cleaning procedures, maintain equipment, and ensure continuous and normal production.

2. Scope of application

CIP cleaning section.

3. Content

3.1 Cleaning sequence: clean water at 40°C, 2% alkali, clean water at 40°C, 0.8% acid, hot water above 90°C, and wash in sequence.

3.2 Clean and record according to the specified time.

3.3 Add about 80% of the water, that is, cover the heating coil.

3.4 Acid-base concentration:

3.4.1 Check the concentration before cleaning, if it is not enough, add an appropriate amount.

3.4.2 Decide whether to reformulate according to the degree of acid-base pollution.

3.5 Connect the in and out distributor correctly.

3.6 Always check the water delivery device to prevent blockage.

3.7 After checking the pipes and valves, the centrifugal pump can be started for cleaning.

3.8 When cleaning with acid and alkali, after cleaning, turn on the reflux pump, so that the acid and alkali flow into the acid tank and the alkali tank respectively.

3.9 Finally, rinse with clean water, and the cleaning is completed.

3.10 Use test paper to test if it is neutral.

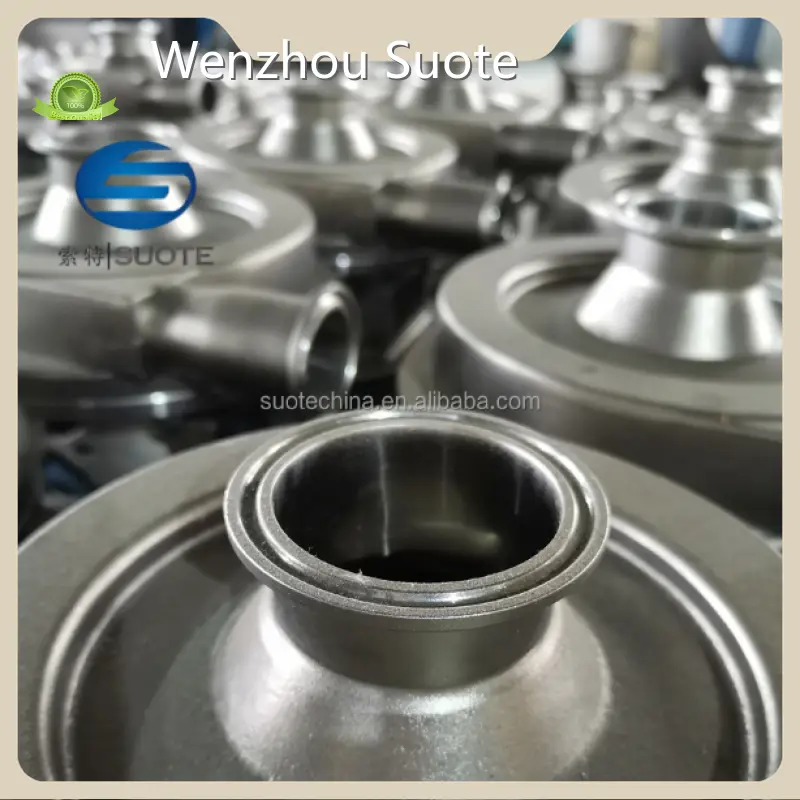

product display
