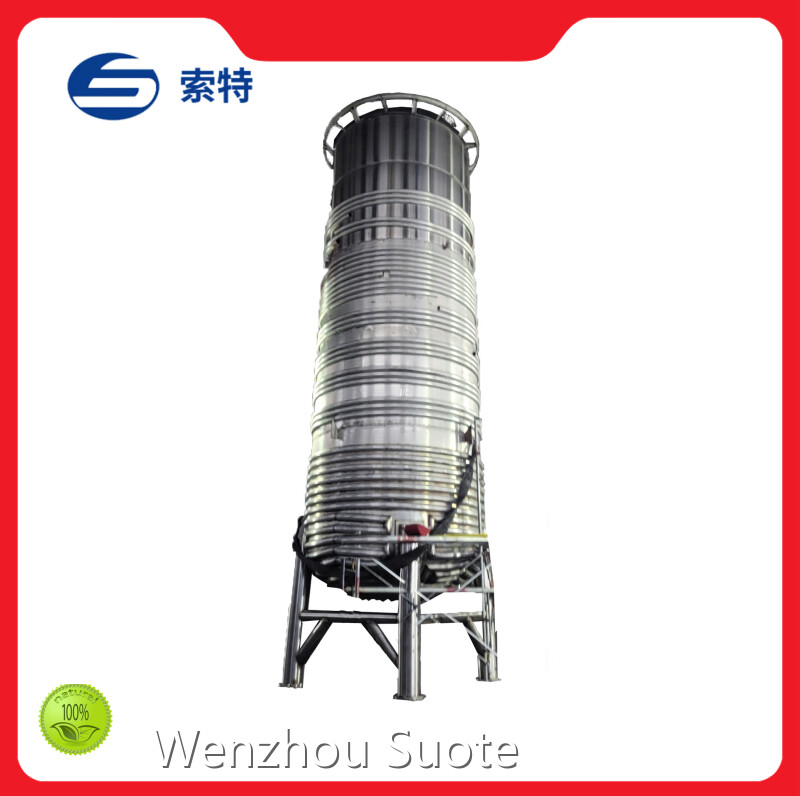

Durable Storage Tank Manufacturer Manufacturing 1

Durable Storage Tank Manufacturer Manufacturing 2

Durable Storage Tank Manufacturer Manufacturing 3

Durable Storage Tank Manufacturer Manufacturing 4

Durable Storage Tank Manufacturer Manufacturing 5

Durable Storage Tank Manufacturer Manufacturing

Inquiry

Product details of the storage tank manufacturer

Product Introduction

From design to manufacturing, Wenzhou Suote storage tank manufacturer is provided with great attention to the details. A quality circle has been organized to detect and solve any quality issues during the production, effectively guaranteeing the quality of the product. It is specially designed for demanding applications.

Structure and characteristics

◆ Appearance structure: the shape of the vertical storage tank is generally cylindrical, the bottom is mostly conical design, this structure is conducive to liquid discharge and cleaning. Part of the vertical storage tanks also adopt a floating head structure to meet the specific use needs.

◆ Material selection: the vertical storage tank has a variety of materials, including FRP, stainless steel and carbon steel. The choice of different materials depends on the nature of the storage media, the use environment, and the safety requirements. For example, stainless steel storage tanks are widely used in food, medicine and other industries because of their strong corrosion resistance and high hygiene level.

◆ Design advantages: the vertical storage tank covers a small area, can maximize the use of space, suitable for limited land or site. At the same time, its structure is stable, can resist the external

wind, earthquake and other forces, to ensure the stable operation of the storage tank.

Vertical storage tank components

Advantages and features

◆ Small footprint: compared with horizontal storage tanks, vertical storage tanks have a smaller footprint, which is conducive to space saving.

◆ Large storage capacity: its cylindrical shape provides a large volume space and can meet the needs of large-scale industrial production or storage.

◆ Structural stability: good design and structure enable the vertical tank to resist external forces and ensure safe operation.

◆ Convenient maintenance and maintenance: the top of the tank is open to facilitate cleaning, maintenance and inspection of the interior.

◆ High safety: safety factors will be considered in the design and construction

process, such as setting up anti-floating base, to prevent liquid leakage or tank

floating.

Product parameters

Volume (L)	CoreDia.(mm)	Jacket Cover dia (mm)	Motorpower(KW)	Working pressure(MPa)	Speed RPM	Vacuum(MPa)	Working temperature(℃)
30	400	500	0.6-1.1	homoeothermy	51-35	<-0.09	0~100
50	500	600	0.6-1.1	homoeothermy	51-35	<-0.09	0~100
100	550	650	1.1-1.5	homoeothermy	51-35	<-0.09	0~100
150	600	700	2.2	homoeothermy	51-35	<-0.09	0~100
200	650	750	2.2	homoeothermy	51-35	<-0.09	0~100
300	2050	110	3	homoeothermy	51-35	<-0.09	0~100
500	900	1000	4	homoeothermy	51-35	<-0.09	0~100
800	1100	1200	5	homoeothermy	51-35	<-0.09	0~100
1000	1200	1300	6	homoeothermy	51-35	<-0.09	0~100
1500	1300	61400	4	homoeothermy	51-35	<-0.09	0~100
2000	1400	1500	4	homoeothermy	51-35	<-0.09	0~100
2500	1400	1500	7.5	homoeothermy	51-35	<-0.09	0~100
4000	1500	1600	7.5	homoeothermy	51-35	<-0.09	0~100
8000	2000	2100	15	homoeothermy	51-35	<-0.09	0~100
32000	3000	2100	37	homoeothermy	51-35	<-0.09	0~100

application area

Vertical storage tanks are widely used in many industries, including but not limited to:

Durable Storage Tank Manufacturer Manufacturing 8

Chemical industry

used for the storage of acid, alkali, salt and other liquid chemical substances, as well as the storage equipment as chemical raw materials or products.

Durable Storage Tank Manufacturer Manufacturing 9

Food and beverage industry

store food, dairy products, fruit juice drinks, etc. to meet the storage needs of the production and processing process.

Pharmaceutical industry

store drug-related materials to ensure the quality and safety of drugs.

Petroleum industry

collect and store oil at the first station of oil pipeline to ensure the stability of pipeline oil volume; receive and reserve incoming oil at the last station to provide to the oil unit.

Other industries

such as environmental protection, brewing, bio-engineering, building materials, metallurgy, etc. vertical storage tanks also play an important role.

Things to note: Our existing models include 50L-10000L. If you need to customize them, please provide our drawings or the following parameters: volume, diameter and height, material, thickness, additional equipment and interface, and safety design.

Durable Storage Tank Manufacturer Manufacturing 13

Clean →

Our in-house designers and engineers have produced countless great designs for customers from different industries

Durable Storage Tank Manufacturer Manufacturing 14

record →

Our in-house designers and engineers have produced countless great designs for customers from different industries

Add about 80% of the water →

Check the concentration →

Configure acid-base concentration →

Connect the in and out distributor →

Check the water delivery →

Checking and Cleaning →

Turn on the reflux pump →

Rinse with clean water →

Test

Operating procedures

1. Purpose To standardize the CIP cleaning procedures, maintain equipment, and ensure continuous and normal production.

2. Scope of application

CIP cleaning section.

3. Content

3.1 Cleaning sequence: clean water at 40°C, 2% alkali, clean water at 40°C, 0.8% acid, hot water above 90°C, and wash in sequence.

3.2 Clean and record according to the specified time.

3.3 Add about 80% of the water, that is, cover the heating coil.

3.4 Acid-base concentration:

3.4.1 Check the concentration before cleaning, if it is not enough, add an appropriate amount.

3.4.2 Decide whether to reformulate according to the degree of acid-base pollution.

3.5 Connect the in and out distributor correctly.

3.6 Always check the water delivery device to prevent blockage.

3.7 After checking the pipes and valves, the centrifugal pump can be started for cleaning.

3.8 When cleaning with acid and alkali, after cleaning, turn on the reflux pump, so that the acid and alkali flow into the acid tank and the alkali tank respectively.

3.9 Finally, rinse with clean water, and the cleaning is completed.

3.10 Use test paper to test if it is neutral.
