Factory Price Extraction Machine Supply
Company Advantages
· Wenzhou Suote extraction machine comes in a wide variety of design styles.
· The product has long service life, enabling the long-time uses.
· Wenzhou Suote Pharmaceutical And Chemical Engineering Co.,Ltd has a professional extraction machine design team, experienced logistics experts, advanced production equipment.
RH Thermal circumfuence extraction & concentrator
Usage
The device serves for vegetable and herbal medicine,China traditional,drug,animal drug, food additional to extract with water,
ethanol,carbinol and to reclaim and con-centrate the organic sovent.
Technical parameters
1. Volume of extract can: 1m³,2m³, 3m³,6m³
2. Volume of concentrator: 0. 5m³, 1m³, 1. 5m³, 2. 5m³
3.Temperature for water distillation: 90~100℃
4. Temperature for alcohol distillation: 78-83℃
5. Distillation time: 4~5H/B
6. Vacuum degree: 0.05~0.08MPa
7.Used pressure: 0.08~0.2MPa
Work principle
Put the medicinal materials into the extraction tank, add solvent 5~10 times the amount of the medicinal materials such as water, alcohol, methanol and acetone(according to the process requirements).Start the straight and jacketed steam valves in the extraction tank to heat the extract.In 20~30minutes after the extract is heated and boiled, use the suction filter tube to pump 1/3 of the extract into the concentrator. Close the straight and jacketed steam valves in the extraction tank and start the heater valve to concentrate the liquid materials. During the concentration, secondary steam will be produced, which will be fed into the extraction tank through the ascending tube of evaporator as the heat source and solution for extraction, so as to maintain the boiling in the extraction tank. The secondary steam will continue to rise, and will be condensed into hot condensate by condenser, and returns to the extraction tank and is added to the medicine surface as a new solvent. The new solvent will reach the bottom of the extraction tank after passing the medicinal material layers from top to bottom at a high speed, and the soluble effective components in the medicinal materials will be dissolved in the solvent in the extraction tank. The extract will be pumped into the concentrator through the suction filter tube, and the secondary steam produced during the concentration will be sent to the extraction tank as the heat source and new solvent. Thus the large reflux extraction of new solvent is formed. Therefore, the density of solute in the medicinal materials and the density of solute in the solvent keep high gradient, and the solute in the medicinal materials will be rapidly dissolved until it is completely dissolved, (The extract has no color.) At the time, the extract is stopped from entering the concentrator, and the secondary steam of concentration will be transferred to the cooler, so that the concentration will continue, until ointment of required specific gravity (1.2~1.3)is concentrated. Lt will be discharged for use. The non-color liquid in the extraction tank can be put in the storage tank for reuse in the next batch, The medicine residue will be discharged from the residue discharging door. lf organic solvents are used for extraction, first add a proper amount of water, and then open the straight and jacketed steam valves. After the solvent is recovered, discharge the residue.
Equipment characteristics
TN series small-sized extraction and concentration unit
Usage
The equipment is suitable for extraction and concentration of effective components in Chinese herbal medicines and various plants, lt can realize recovery of solvents and collection of perfume oil.
Technical characteristics
Product parameters
| Specification&Mode | TN-20 | TN-50 | TN-100 | TN-200 | TN-300 | TN-500 |
| Extraction volume(L) | 20 | 50 | 100 | 200 | 300 | 500 |
| Concentration volume(L) | 20 | 50 | 100 | 200 | 300 | 500 |
| Working pressure in jacket(MPa) | <0.1 | |||||
| Working pressure in pot(MPa) | Normal or Negative pressure | |||||
| Extract Temperture(℃) | 40-100 | |||||
| Medium | Steam, Hot oil, Water | |||||
| Vacuum pump mode | SK-0.4 | SK-0.8 | SK-0.8 | SK-1.5 | SK-1.5 | SK-1.5 |
| Electric power(kw) | 6+6 | 12+12 | 15+15 | 18+18 | 24+36 | 36+48 |
| Tempreture scope | 0-200℃ | |||||
| Outline dimension(m) | 2×0.75×1.7 | 2.5×0.75×2.4 | 2.8×0.8×2.5 | 3×09×3 | 4.3×1.4×3.5 | 4.3×1.8×4 |
QN series ball concentrator
Usage
The roundness concentration tank, consisting of main body、condensator、 gas-liquid separator and liquid receiving barrel, serves to concentrate、distil the material liquid and reclaim organic menstruum in the pharmacy, foodstuff and chemistry. The concentration under reduced pressure brings short time of concentration and prevent the destruction of the effective content in the thermal sensitive material. The fact that the part in contact with the material is made with stainless steel brings qualified anti-corrosion performance,meeting with the GMP standard.
Product parameters
| Specification&Mode | QN-300 | QN-500 | QN-700 | QN-1000 |
| Evaporation quantity (kg/h) | 70 | 120 | 145 | 195 |
| Nominal volume (L) | 300 | 500 | 700 | 1000 |
| Inside diameter of ball (mm) | 800 | 990 | 1115 | 1250 |
| Steam pressure(Mpa) | 0.098 | |||
| Vacuum degree | 0.06-0.07MPa | |||
| Heating area(m) | 1.1 | 1.6 | 2 | 2.5 |
| Condensing area(m) | 2.4 | 3.2 | 3.5 | 4.5 |
| Outline dimension (mm) | 1900x1100×2300 | 2030×1200×2500 | 2100×1300×2500 | 2335×1520×2765 |
| Eouioment welght(kg) | 380 | 450 | 630 | 950 |
| Steam consumption(Kg/h) | 77 | 132 | 159 | 214 |
| Water gonsumpton(T/h) | 2 | 4 | 6 | 7 |
| Steam inlet (m/m) | 25 | 25 | 40 | 40 |
| Waterinlet and outlet (m/m) | 30 | 30 | 40 | 40 |

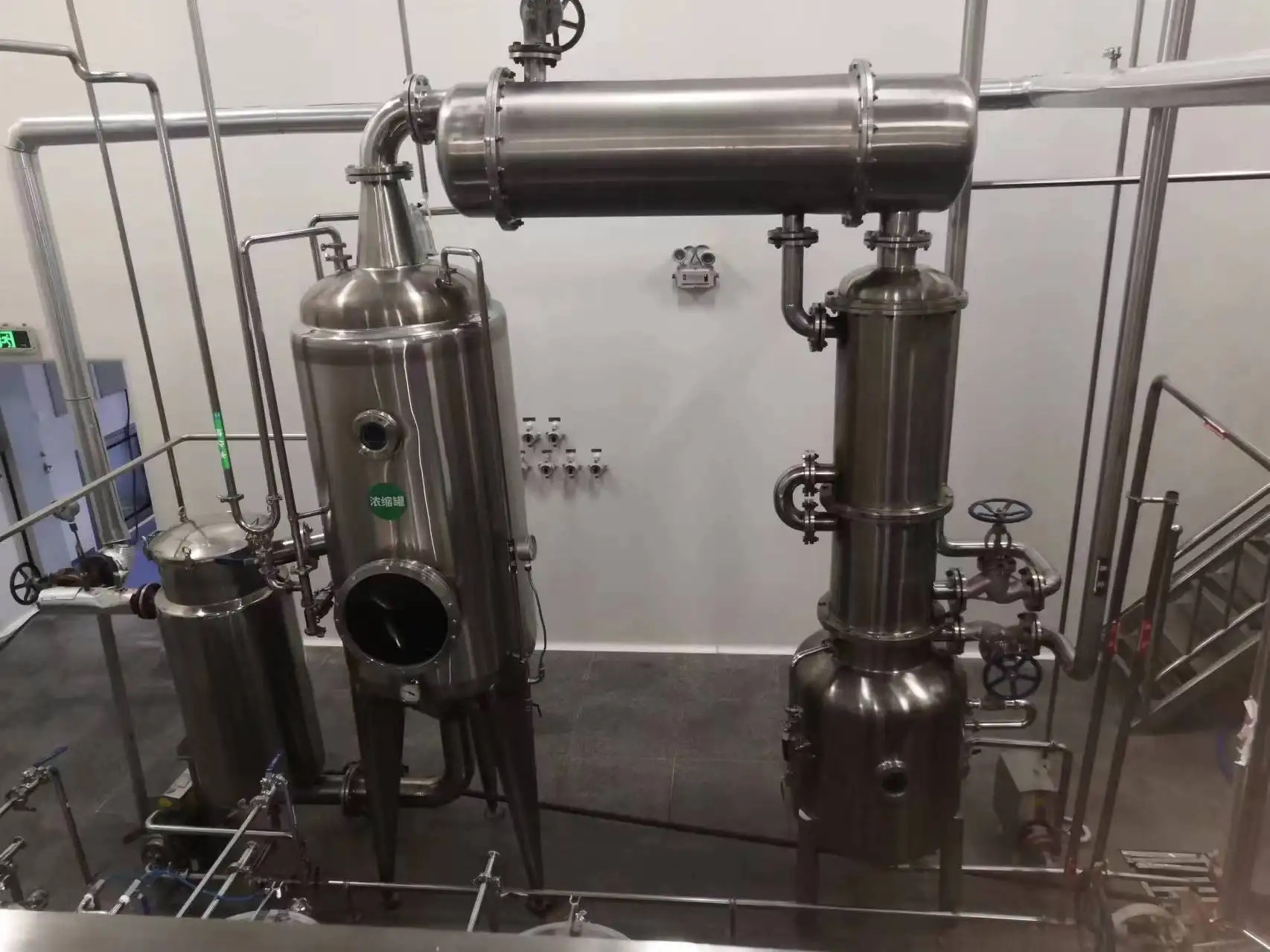

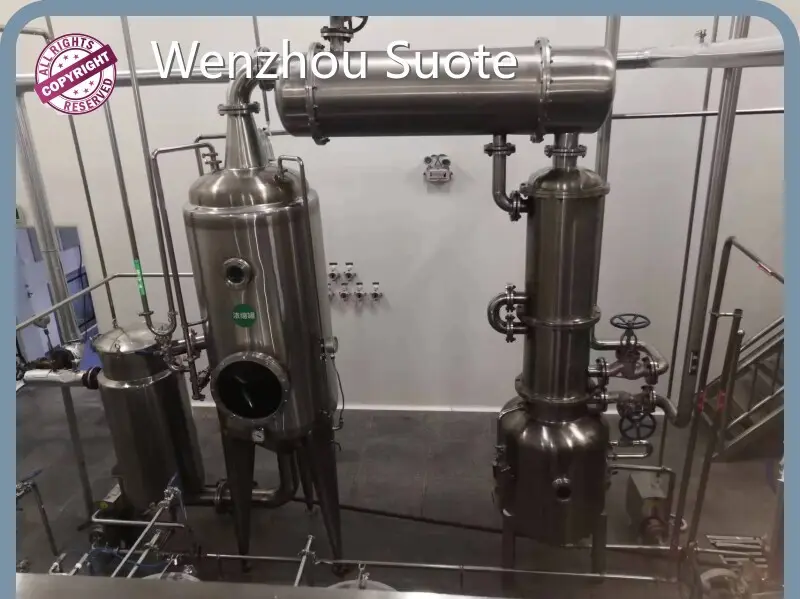

product display
Company Features
· Wenzhou Suote Pharmaceutical And Chemical Engineering Co.,Ltd is a global innovation company that never stops inventing. We have been providing high-quality extraction machine in the industry.
· With operations in numerous countries, we are still working hard to expand our marketing channels overseas. Our researchers and developers study the international extraction machine market trends, with an aim to invent trend-oriented products. Aside from our major presence in China, Japan, the United States, we operate in Germany, India, and other countries. Over the years, we have been maintaining harmonious and friendly relationships with overseas customers. We have business nearly all over the globe. Many of our products including extraction machine have been sold to Japan, the United States, UK, Germany, and other countries.
· Wenzhou Suote has a great plan to become an influential extraction machine supplier. Inquiry!
Enterprise Advantages
Our company has a group of aspirant technical talents and business elites. Apart from that, we cooperate with experienced experts at home and abroad to develop new products. All that guarantees the high quality of each product.
Wenzhou Suote makes effort to provide diversified and practical services and sincerely cooperate with customers to create brilliance.
Our company persists in the basic principle of 'people-oriented and quality first', always takes 'keeping natural, nutritious and healthy' as the responsibility, and pursues the enterprise spirit of 'creating perfect products and contributing to society'. We make effort to provide healthy products for consumers and strives to become a first-class enterprise in China.
Since the establishment in Wenzhou Suote has always maintained our initial heart, good attitude, and great enthusiasm. We have overcome the difficulties in the development. Currently, we are a good example for other companies to learn from. We gain a certain position in the industry based on great business strength.
Based on the domestic market, Wenzhou Suote is actively exploring foreign markets.

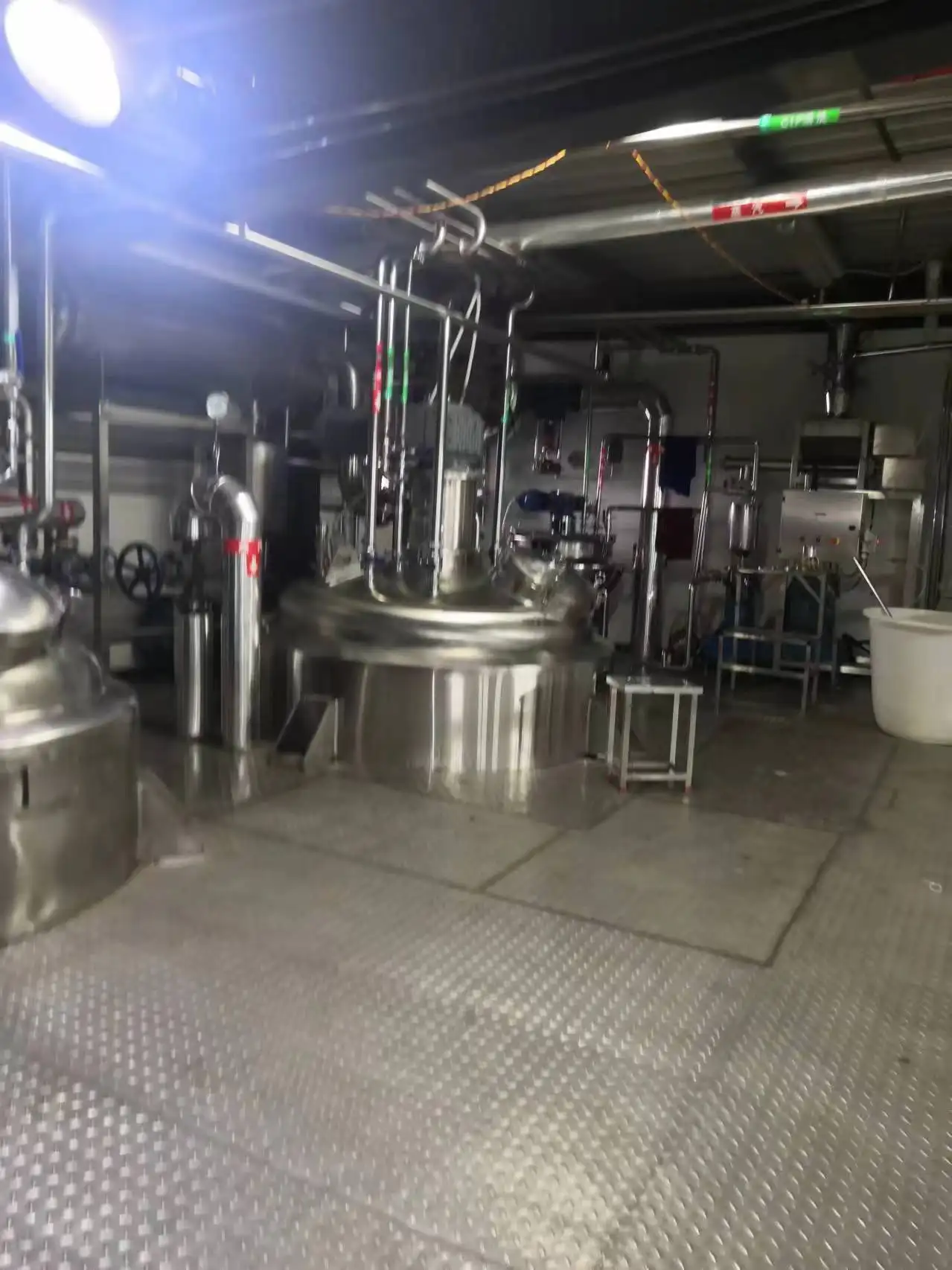

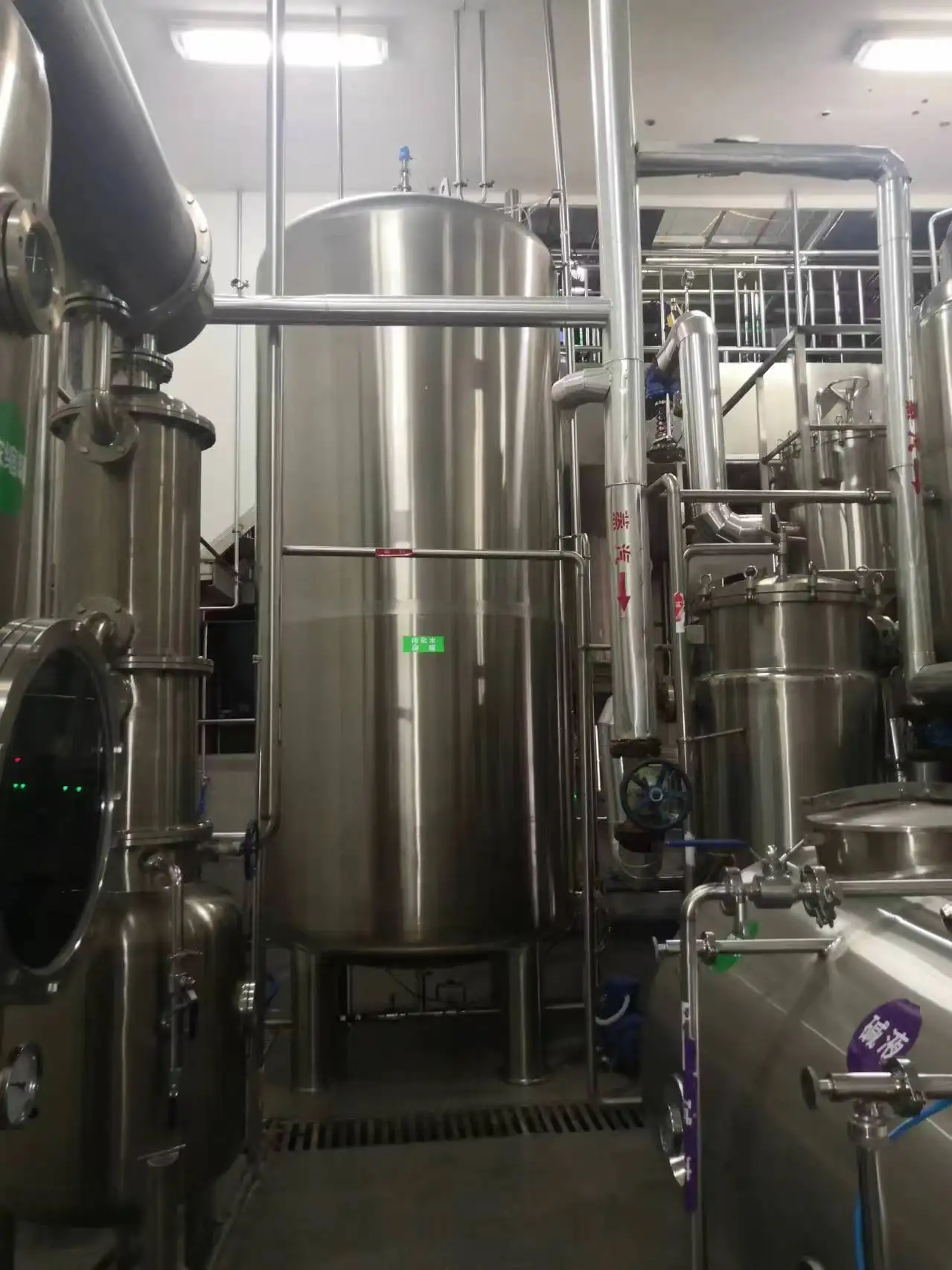

Production Line
