sanitary valves and fittings

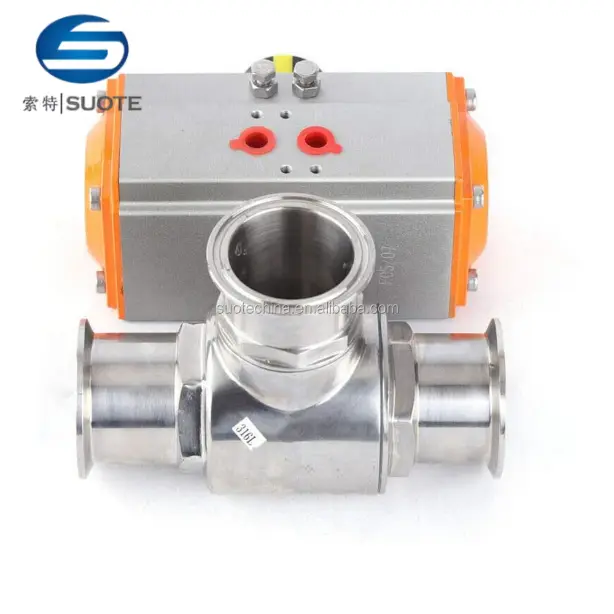

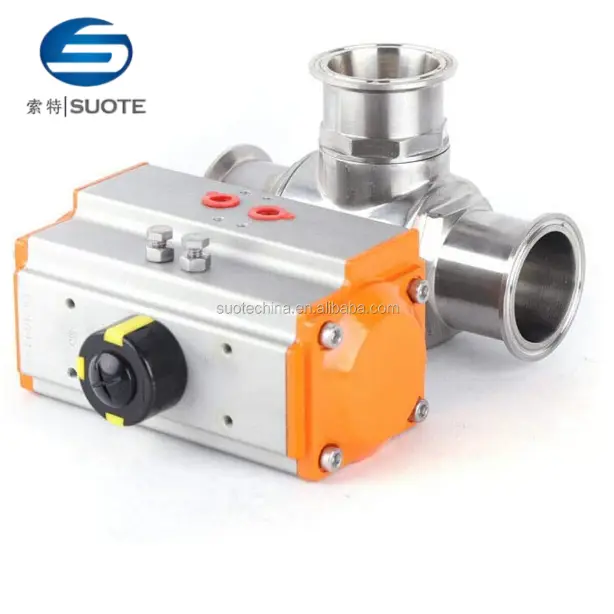

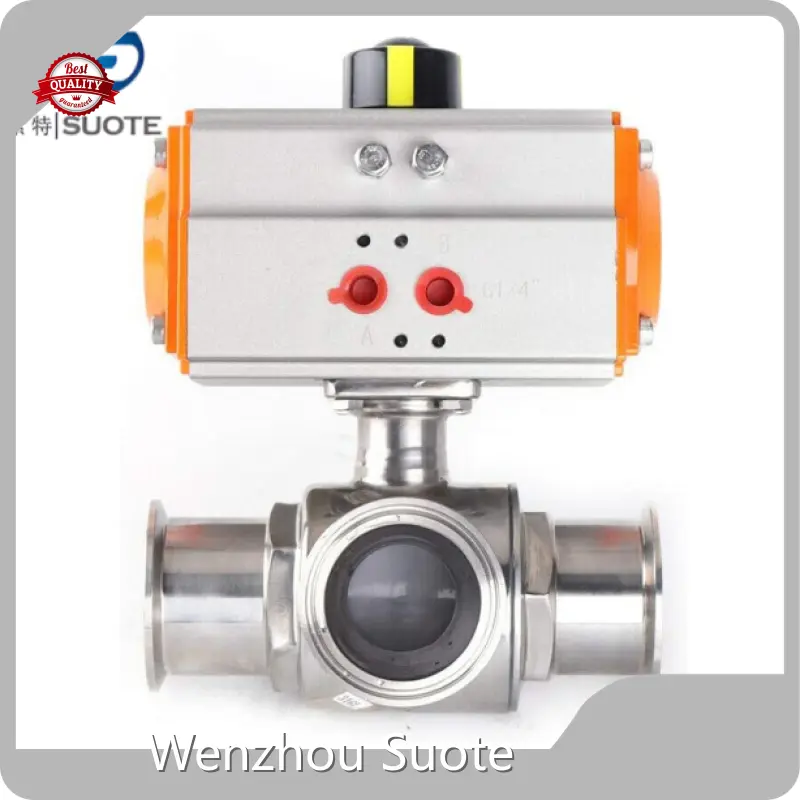

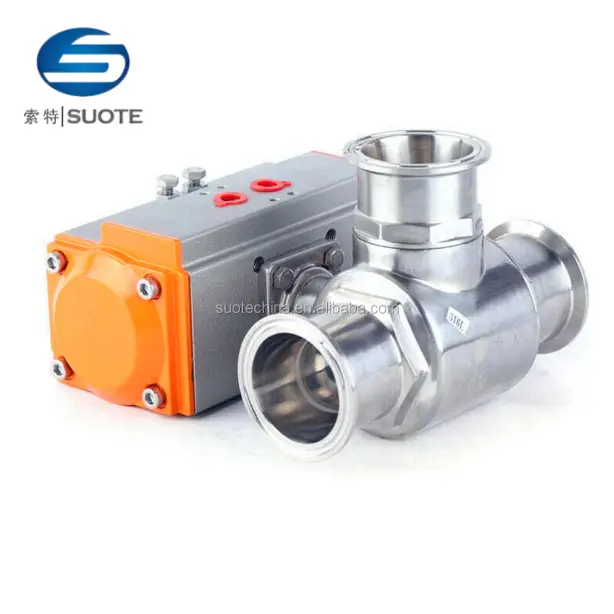

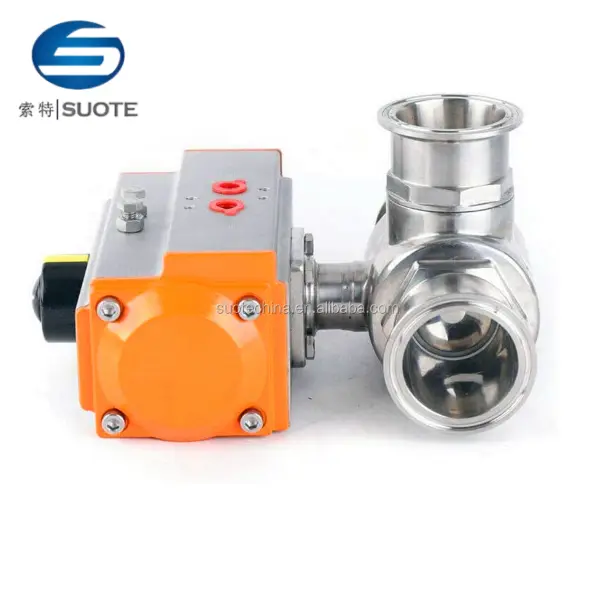

Three-piece stainless steel tri-clamp actuated ball valve for precise process flow control.Control the flow of your process lines more accurately with this actuated ball valve. Connect to existing sanitary process lines with tri-clover clamp connections.
【WIDE APPLICATION】This 316L stainless steel sanitary three-way T-type three-clamp pneumatic ball valve is suitable for stainless steel pipe system, suitable for food, beer, dairy, brewing, chemical industry drainage and other industries.* 【MAIN PARAMETERS 1】Material: SUS 316L Stainless Steel, Operation: Pneumatic, Port size: 2"/Φ50mm, Sealing material: PTFE, Connection: clamping, Surface finish: <0.4μm.* 【MAIN PARAMETERS 2】Applicable temperature: -10℃~120℃ (14°F~248°F), Working pressure: 0-1.6 MPa/232PSI, Applicable medium: water, oil,
Package size: 25cm x 21cm x 15cm (10'' x 8'' x 6''), Shipping weight: 4.8kg/10lbs.* 【PROFESSIONAL BALL VALVE】Ball valve and ball with anti-static device. Oil free, free of spot inspection, waterproof and rust proof, and can reduce electromagnetic interference. Good corrosion resistance and long life.* 【USER-FRIENDLY DESIGN】Valve features dual limit, over heat, over load protection (optional). Ball valve stem explosion-proof design, fire protection design.
Color:2 Inch Port Diameter, 316L Stainless Steel
Three Piece Actuated Tri-Clamp Ball Valve Part Numbers & Dimensions
Ball Valve Assembly Instructions Ball Valve Operating Manual:
* Requires 80PSI of air to actuate the valve* Actuator sold separately to retrofit existing valves in the field.* Position indicator on top of the actuator* Available in "Normally Open," "Normally Closed," and "Dual Acting" actuation.* Actuation kits available: includes all items to actuate an existing valve- actuator, bracket, adaptor, and connecting hardware.* ISO 5211 Standard Mounting Pad* Unrestricted flow (full flow) in the open position
|
Part Number |
Size |
"A" |
"B" |
"C" |
*"D" |
"E" |
|
BLV2C-.50-NC |
1/2" |
3.5 |
6.62 |
2.45 |
4.72 |
7.66 |
|
BLV2C-.75-NC |
3/4" |
3.98 |
6.81 |
2.45 |
4.72 |
7.66 |
|
BLV2C-1-NC |
1" |
4.49 |
6.82 |
3.21 |
5.68 |
7.66 |
|
BLV2C-1.5-NC |
1-1/2" |
5.51 |
8.53 |
3.74 |
5.87 |
8.09 |
|
BLV2C-2-NC |
2" |
6.14 |
8.83 |
3.74 |
5.87 |
8.09 |
|
BLV2C-2.5-NC |
2-1/2" |
7.76 |
10.7 |
4.68 |
7.2 |
9.84 |
|
BLV2C-3-NC |
3" |
9.02 |
10.97 |
4.68 |
7.2 |
9.84 |
|
BLV2C-4-NC |
4" |
9.57 |
12.98 |
5.53 |
10.22 |
13.97 |
|
Component |
Description |
Description |
|
1 |
Body |
TP316 Stainless Steel |
|
2 |
Cap |
TP316 Stainless Steel |
|
3 |
Ball |
TP316 Stainless Steel |
|
4 |
Ball |
PTFE |
|
5 |
Seal |
PTFE |
|
6 |
Thrust Washer |
PTFE |
|
7 |
Stem Packing |
PTFE |
|
8 |
Gland Nut |
TP304 Stainless Steel |
|
9 |
Spring Washer |
TP304 Stainless Steel |
|
10 |
Stem Nut |
TP304 Stainless Steel |
|
11 |
Stem |
TP304 Stainless Steel |
|
12 |
Spring Washer |
TP304 Stainless Steel |
|
13 |
Nut |
TP304 Stainless Steel |
|
14 |
Bolt |
TP304 Stainless Steel |
|
15 |
Handle |
TP304 Stainless Steel |
|
16 |
Handle Sleeve |
PVC |
|
17 |
Locking Device |
TP304 Stainless Steel |
Application
2" stainless steel 316L sanitary three-way T-type three-clamp pneumatic ball valve is suitable for stainless steel pipe system, suitable for food, beer, dairy, brewing, chemical industry drainage and other industries. The temperature reached 150°C/302°F.
Product parameters
|
Sanitary Size |
OD of Flange End |
ID of Tube |
OD of Tube |
|
1/2″ |
0.992 |
0.370 |
0.500 |
|
3/4″ |
0.992 |
0.620 |
0.750 |
|
1″ |
1.984 |
0.870 |
1.000 |
|
1 1/2″ |
1.984 |
1.370 |
1.500 |
|
2″ |
2.516 |
1.870 |
2.000 |
|
2 1/2″ |
3.047 |
2.370 |
2.500 |
|
3″ |
3.579 |
2.870 |
3.000 |
|
4″ |
4.682 |
3.834 |
4.000 |
|
6″ |
6.562 |
5.782 |
6.000 |
|
8″ |
8.602 |
7.782 |
8.000 |
|
10″ |
10.570 |
9.782 |
10.000 |
|
12″ |
12.570 |
11.760 |
12.000 |
Other instructions
product display
Company Advantage
• We select high-quality products for delivery, and manage them in integrity. They are exported to major cities and highly praised by consumers.
• Incorporated in our company has accumulated a wealth of industry experience and established a comprehensive marketing service network. Therefore, we have shaped a good brand image and enterprise image in the industry.
• At present, Wenzhou Suote has a technical R&D team who is experienced, diligent and courageous. Based on gathered wisdom, the team members are committed to developing new products and writing new miracles.
• provides customers with a full range of services to meet the individual needs of different customers.
Wenzhou Suote's The main products include tanks like fermentation tanks,TK tanks,powder tanks,mechanical or magnetic stirring dosing tanks,extraction tanks,stainless steel reactors,concentrators and other tank equipment,heat exchange equipment such as column and tube heat exchangers,PLC control systems,various types of filters and purification area dedicated to various types of pipes,fittings,clamps and diaphragm valves,tank bottom valves and other engineering supporting products are of good quality and favorable price. Please contact us for order.
