Good Selling Processing Equipment with Custom Services

Product details of the processing equipment

Product Introduction

Wenzhou Suote processing equipment is designed using the latest advanced design concept, giving the product a more aesthetically appealing look. The product is superior in quality and reliable in performance. The product is extensively used in the domestic and foreign market.

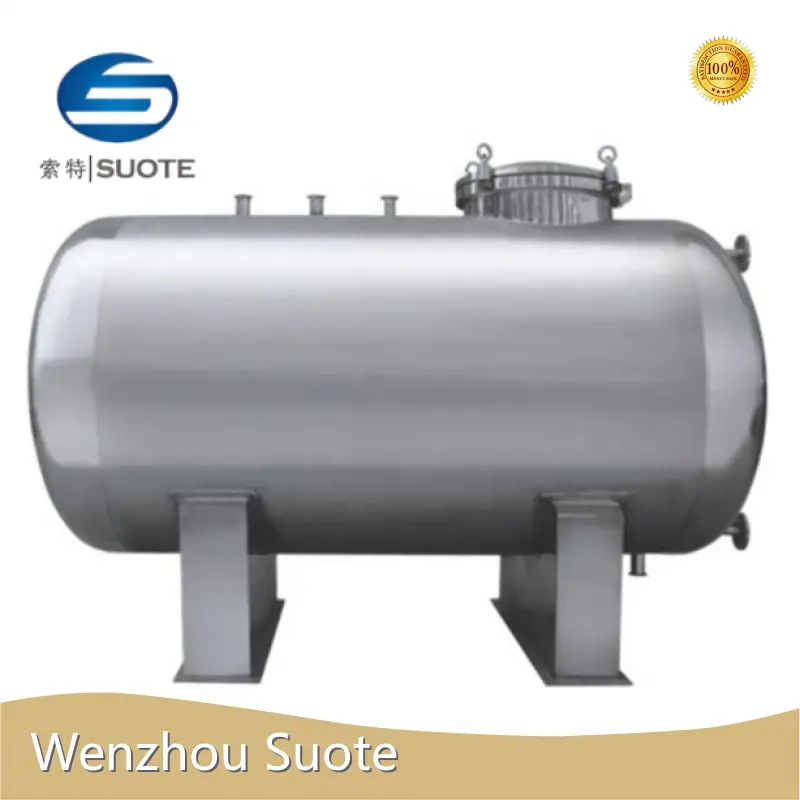

Horizontal storage tank components

Description：

The company's production of distilled water tank,completely manufactured in accordance with the national GMPcertification requirements. Automatic control, to ensure that 80of the memory, 65 of the small cycle and large cycle of theprocess requirements. Tank using vertical or horizontal two,are double structure. The polishing accuracy of Rar0.45. spiraltube with heating, and filled with polyurethane foam insulationmaterials.External mirror panel or matte board insulation, tankgloss consistent, Where contact with liquid components areusing 316L material, and the rest are using 304 materials. Thetop is provided with a water inlet and a reflux opening, oraldisinfection and cleaning port, manhole, the installation of0.22um air respirator. At the bottom of a condensed wateroutlet, distilled water outlet and a drain, the liquid level,temperature open mouth.Control cabinet operation,theinstrument display distilled water temperature, liquid level.Achieve constant temperature control and provide the upperand lower alarm functions.

Advantages and characteristics

◆ Capacity and pressure: compared with vertical cylindrical tanks, horizontal tanks have relatively small capacity, but they have a large pressure range, so it is widely used as a process container in various production processes.

◆ Stability and safety: the horizontal tank is arranged horizontally on the ground, the bottom provides stable support, not easy to dump, and its structure design is reasonable to ensure the safety of stored substances.

◆ Regulation and control: the horizontal storage tank is equipped with instruments, valves, pipes and other accessories, to achieve the accurate adjustment of the internal temperature, pressure and other parameters, to meet the production requirements. At the same time, equipped with safety valves and other safety equipment, in order to prevent the occurrence of accidents

Function and application

Main functions

Horizontal storage tanks are mainly used to store all kinds of chemicals, especially liquid or gaseous chemicals, such as petroleum, acetic acid, citric acid, liquid ammonia, calcium chloride, etc. Parts such as sealed container shells and fixed supports ensure that the stored chemicals are more stable and reliable from leakage or volatilization.

Application areas

in chemical industry, horizontal storage tank can be used to store crude oil, vegetable oil, etc; in industrial process, can be used as a reactor for chemical reaction, mixing, dissolution and other operations, and can also be used in sewage treatment, transportation of liquid or gas scenarios.

Things to note：Our existing models include 50L-10000L. If you need to customize them, please provide our drawings or the following parameters: volume, diameter and height, material, thickness, additional equipment and interface, and safety design.



Clean →

Our in-house designers and engineers have produced countless great designs for customers from different industries

record →

Our in-house designers and engineers have produced countless great designs for customers from different industries

Add about 80% of the water →

Check the concentration →

Configure acid-base concentration →

Connect the  in and out distributor  →

Check the water delivery →

Checking  and  Cleaning →

Turn on the reflux pump →

Rinse with clean  water →

Test

Operating procedures

1. Purpose To standardize the CIP cleaning procedures, maintain equipment, and ensure continuous and normal production.

2. Scope of application

CIP cleaning section.

3. Content

3.1 Cleaning sequence: clean water at 40°C, 2% alkali, clean water at 40°C, 0.8% acid, hot water above 90°C, and wash in sequence.

3.2 Clean and record according to the specified time.

3.3 Add about 80% of the water, that is, cover the heating coil.

3.4 Acid-base concentration:

3.4.1 Check the concentration before cleaning, if it is not enough, add an appropriate amount.

3.4.2 Decide whether to reformulate according to the degree of acid-base pollution.

3.5 Connect the in and out distributor correctly.

3.6 Always check the water delivery device to prevent blockage.

3.7 After checking the pipes and valves, the centrifugal pump can be started for cleaning.

3.8 When cleaning with acid and alkali, after cleaning, turn on the reflux pump, so that the acid and alkali flow into the acid tank and the alkali tank respectively.

3.9 Finally, rinse with clean water, and the cleaning is completed.

3.10 Use test paper to test if it is neutral.

product display

CIP photos 2~1

CIP photos 8 (1)~1

CIP photos 8 (2)~1

产品底图

产品底图

产品底图

Company Advantage

• We are willing to serve the vast number of consumers and the market in the principle of mutual benefit and credibility first!
• Since the establishment in Wenzhou Suote has always maintained our initial heart, good attitude, and great enthusiasm. We have overcome the difficulties in the development. Currently, we are a good example for other companies to learn from. We gain a certain position in the industry based on great business strength.
• Our products are not only popular with Chinese people, but also sold well in many foreign countries.
If you have any interest in Wenzhou Suote's The main products include tanks like fermentation tanks,TK tanks,powder tanks,mechanical or magnetic stirring dosing tanks,extraction tanks,stainless steel reactors,concentrators and other tank equipment,heat exchange equipment such as column and tube heat exchangers,PLC control systems,various types of filters and purification area dedicated to various types of pipes,fittings,clamps and diaphragm valves,tank bottom valves and other engineering supporting products, you can leave your contact information for further communication.
