Grinding Equipment by Wenzhou Suote
Product details of the grinding equipment
Quick Detail
High technical assurance and first-class quality can be seen on grinding equipment. This product has excellent performance and reliable quality. Wenzhou Suote's grinding equipment is widely applicable in the industry. Always holding the best service attitude is an important point for the improvement of Wenzhou Suote.
Product Description
Wenzhou Suote's grinding equipment has been greatly improved in the following details.
Design feature

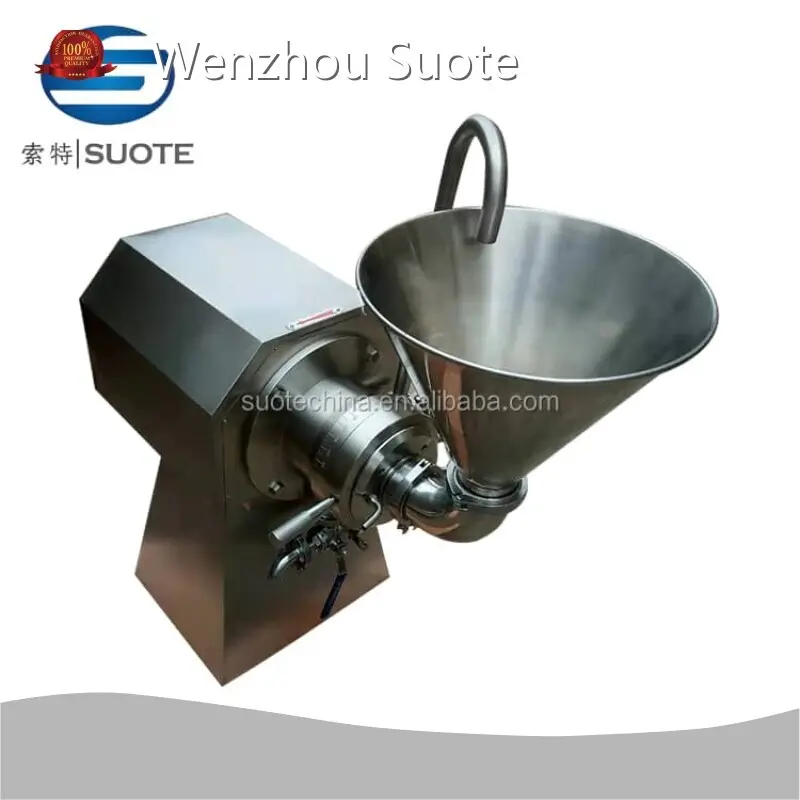

◆ Separation design: horizontal colloidal grinding usually adopts the motor and grinding body separate design, making the equipment structure more compact, operation and maintenance more convenient.
◆ Excellent material: the main parts such as stator and rotor are made of stainless steel and other corrosion-resistant and non-toxic materials to ensure the safety and hygiene of products.
◆ Flexible adjustment: the equipment is equipped with a regulating mechanism, such as positioning plate and dial, to adjust the gap between the stator and rotor according to the processing requirements, so as to control the machining accuracy.
◆ Strong adaptability: horizontal colloid grinding can be widely used in food, medicine, chemical industry, cosmetics and other industries, for different characteristics of good adaptability to
materials.
Working principle
The basic working principle of colloidal mill is shearing, grinding as well ashigh-speed stirring applied force, grinding is finished depending on the relative movement of tooth-form slope, one of them rotates at high speed, while the other stays still to make materials that passing between tooth-form slopes receive great shear force and friction, and to grind, emulsify, smash, homogenize and mix the munder complex forces such as high-firequency shake, high-speed vortex and others at the same time, so as to achieve the effect of fine and super micro.
Applied range
Horizontal colloidal grinding is mainly used for ultra-micro crushing, emulsification, homogenization and mixing of wet materials. In the food industry, it can be used for the processing of jam, sauces, dairy products and other products; in the chemical industry, it is used for the fine grinding of pigments, coatings, paints and other materials. In addition, horizontal colloidal grinding is also suitable for the construction industry, paper industry, plastic industry and other fields.
Product parameters
| Model | JML-50 | JML-80 | JML-100 | JML-120 | JMF-80 | JMF-100 | JMF-120 | JMF-140 | JMF-180 | ||
| Emulsification fineness um(single cycle or multi-cycle) | 5~40 | 3~40 | 2~40 | 2~40 | 3~40 | 2~40 | 2~40 | 2~40 | 2~40 | ||
| Adjustment range mm | 1-0.01 | 1-0.01 | 1-0.01 | 1-0.01 | 1-0.01 | 1-0.01 | 1-0.01 | 1-0.01 | 1-0.01 | ||
| Output t/h change according to materials | 0.01-0.2 | 0.3-1 | 0.5-2 | 0.7-3 | 0.3-1 | 0.5-2 | 0.7-3 | 1-4 | 2-5 | ||
| Motor | Power kw | 1.1 | 3 | 5.5 | 7.5 | 4 | 5.5 | 7.5 | 11 | 15 | |
| Pressurev | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | ||
| Stirringspeedr/min | 2880 | 2880 | 2880 | 2880 | 2880 | 2880 | 2880 | 2880 | 2880 | ||
| Grinding diameter mm | $50 | $80 | $100 | $120 | 80 | $100 | $120 | $140 | $180 | ||
| Discharge port diameter(hour) | $15 | $25 | $32 | $40 | 625 | 632 | 640 | 640 | 665 | ||
| Cooling water pipe(hour) | $1/8" | 61/4" | Φ1/4" | 61/4" | Φ1/4" | Φ1/4" | Φ1/4" | $1/4° | $1/4" | ||
| Dimensions | Length mm | 420 | 520 | 560 | 560 | 640 | 750 | 750 | 820 | 980 | |
| Width mm | 280 | 400 | 420 | 420 | 550 | 620 | 620 | 700 | 800 | ||
| Height mm | 760 | 900 | 950 | 950 | 1030 | 1080 | 1080 | 1250 | 1550 | ||
| Weight kg | 45 | 84 | 113 | 135 | 210 | 275 | 295 | 325 | 450 | ||
Application
JM series colloidal mill is a new-type equipment of wet type super micro grain processing, suitable for the homogenization, emulsification, separation, smash and milling of various emulsions. It is widely used in foodstuff (fruit jam, juice, albumen milk, soy milk, milk tea, dairy, beverage, etc.), pharmacy (various syrups, nutrition liquid, Chinese Traditional Patent Medicine, poultice, etc.), daily chemical (toothpaste, cosmetic, washing lotion, etc.), chemical industry (pigment, dyestuff, dope, lubrication, petroleum activator, etc.), emulsion asphalt, coal floating agent, ceramic glaze, emulsion detonator, nanometer material, etc.
product display
Company Introduction
Wenzhou Suote Pharmaceutical And Chemical Engineering Co.,Ltd has been widely recognized and accepted in this industry, mainly because of the strong ability and excellence in manufacturing grinding equipment. Over the past long years, we have worked with many international brands and retailers to manufacture products like grinding equipment. Those experiences enabled us to understand customers thoroughly and how to provide services with added value. We are working with our transportation and logistics team on how we can use our transport system to ensure that all recyclable materials are being handled responsibly.
We provide you with high-quality products and look forward to your inquiry.
