Hot Selling Pharmaceutical Processing Equipment Manufacturer
Company Advantages
· Wenzhou Suote pharmaceutical processing equipment is manufactured using quality raw materials and state-of-the-art technology in tune with the set of industrial principles.
· All its technical details are investigated to make sure the right quality of the product.
· Wenzhou Suote Pharmaceutical And Chemical Engineering Co.,Ltd has the advanced product testing method and equipment.
Composition structure

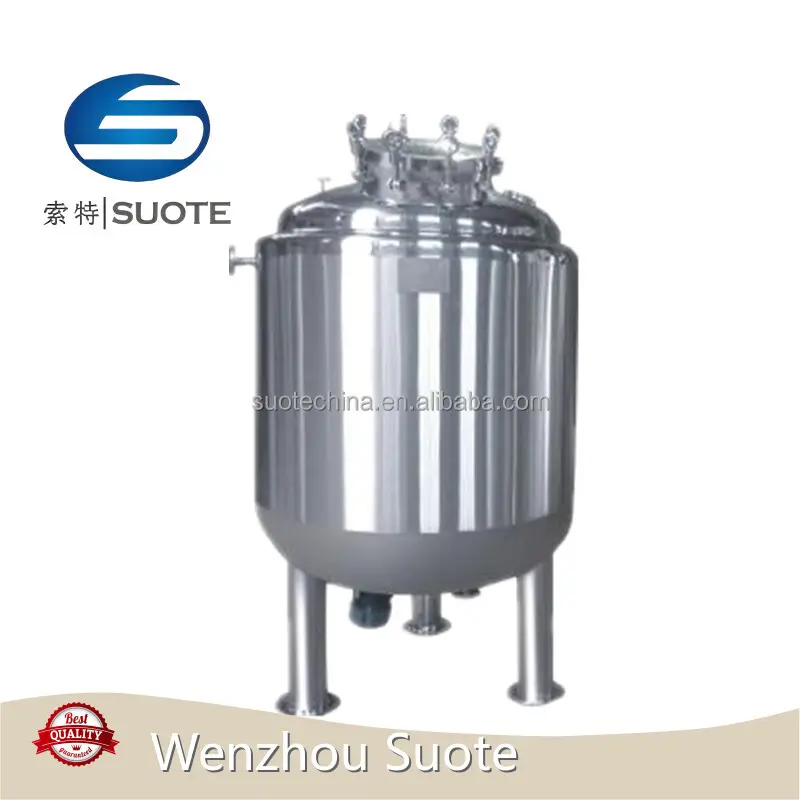

Stainless steel mixing tank is mainly composed of mixing tank body, mixing tank cover, mixer, support, transmission device and shaft seal device. Among them, the mixing tank body and the mixing tank cover can be connected with flange sealing or welded, and the feeding, discharge, observation, temperature measurement, pressure measurement, steam fractionation, safe emptying and other process pipe holes can be opened according to the process requirements. The upper part of the mixing tank cover is equipped with a transmission device (motor or reducer), where the drive shaft drives the agitator in the mixing tank. Shaft seal device can use machine seal or packing, maze sealing and other forms to meet the needs of different users.
Mixing tank components
Lower homogenising emulsifying hot and cold mixing tank configuration introduction Completely designed and manufactured in accordance with GMP standards (equipment overall stainless steel platform, polished 300U inside and outside of the pot). Upper high shear mixing. Single layer design of main pot Many safety protection functions to make production safer.
functional characteristics
1. Mix and stir: Stainless steel mixing tank is mainly used for mixing various materials of different properties and particle sizes to ensure their evenly mixing. This is particularly important in chemicals, food, pharmaceutical, cosmetics, etc., for the preparation of mixtures of liquids, solids and powders.
2. Reaction dissolved: The tank can also be used for various chemical reactions and dissolution of substances. In chemicals, pharmaceuticals, and laboratories, it is often used to react different substances into the desired products, or to dissolve solid substances into liquids.
3. Succession dispersion: In the fields of food, cosmetics, pharmaceutical and other fields, stainless steel mixing tank can be used to emulsify and disperse the process, to disperse the oil and water phase materials evenly, and to ensure the dispersion and stability of small particles.
4. Heating cooling: The mixing tank usually has the heating and cooling functions, which can be used to control the temperature of the material and meet the needs of different processes, such as sterilization, curing, and crystallization, etc. The heating form includes jacket electric heating, coil heating, etc., and the cooling cycle is often using the way of water inside and outside the jacket circulation.
5. Storage and storage: The mixing tank can also be used as a storage container for materials, storing the mixed materials in the tank for subsequent production or processing.
Product parameters
|
Material |
ss304 or ss316L or Duplex stainless or 904L |
|
Design Pressure |
-1 -10 Bar (g) or ATM B9 |
|
Work Temperature |
0-200 °c |
|
Volumes |
100~30000L |
|
Construction |
Vertical type or Horizontal type |
|
Jacket type |
Dimple jacket,full jacket, or coil jacket |
|
Structure |
Single layer vessel, vessel with jacket, vessel with jacket and insulation |
|
Heating or cooling function |
According to the heating or cooling requirement ,the tank will have jacket for requried function |
|
Opitional Motor |
ABB, Siemens, SEw or Chinese brand |
|
Surface Finish |
Mirror Polish or Matt polish or Acid wash&pickling or 2B |
|
Standard components |
Manhole,sight glass , cleaning ball |
|
Optional components |
Vent filter,Temp.Gauge, display on the gauge directly on the vesselTemp sensor PT100, digital display on the control cabinet by instrumentTemp sensor with control for heating and cooling Level gauge with digitaldisplay on the control cabinet by instrument Load cell Valves |
|
Applications |
Wine,Beer Juices Food & Laboratory Medical &Medical Device Chemical Industry Painting Industrial |
material characteristics
In conclusion, stainless steel mixing tank is a powerful and widely used equipment, with its excellent corrosion resistance, hygiene, durability and customisability, making it an indispensable production tool in many industries.
product display
Company Features
· Wenzhou Suote Pharmaceutical And Chemical Engineering Co.,Ltd has attracted more customers with good reputation.
· Mastering the technology of producing pharmaceutical processing equipment has created more benefits for Wenzhou Suote. Wenzhou Suote now has mastered the highly technical methods to offer higher-quality pharmaceutical processing equipment. Firmly grasping the advanced technology, Wenzhou Suote is able to offer the high-quality pharmaceutical processing equipment with competitive price.
· Full of passion and power, our mission is to make real change to consumers and businesses around the world every day. Inquiry!
Product Details
Wenzhou Suote's high-quality pharmaceutical processing equipment is produced according to the national standards. The specific details are as follows.
Product Comparison
Compared with other products in the same industry, Wenzhou Suote's pharmaceutical processing equipment has the following characteristics.
Production Line
Processing Equipment
