Company Advantages

· Wenzhou Suote processing equipment has an appealing and functional design developed by expert team.

· Tests and analyzed data show that the performance of this product can meet the needs of customers.

· This product has gained much popularity since it was launched.

Operational principle

The vacuum filter generates a negative pressure environment through the vacuum system (such as the vacuum pump). When the liquid to be filtered (e. g., suspension or solution) is introduced into the filter, the solid particles or impurities in the liquid are trapped on the filter medium (such as filter cloth or filter paper), while the clean filtrate flows into the collection container through the filter medium. As the filtration process proceeds, solid particles will gradually accumulate on the filtration medium, forming filter cakes, which may increase the filtration resistance and reduce the filtration efficiency. Therefore, regular cleaning or replacement of the filter media is necessary.

Vacuum filter components

Type and structure

Vacuum filters come in multiple types and structures to accommodate different filtration requirements. Common types include intermittent vacuum filters and continuous vacuum filters. Intermittent vacuum filter is suitable for small batch and many kinds of filtration tasks, while continuous vacuum filter is more suitable for large-scale, continuous production process.

Structurally, the vacuum filter usually consists of a filter chamber, a filter medium, a collection container, a vacuum system, and the necessary control system and auxiliary equipment. The filter chamber is a space for the liquid to be filtered, and the filter medium is located between the filter chamber and the collection container to trap solid particles. The collection container is used to receive the clean filtrate, while the vacuum system is responsible for generating and maintaining a negative pressure environment in the filter room.

Product parameters

Type	Vacuum Filter
Product name	Aseptic Vacuum System Filter
Material	Stainless Steel 304L/316L
Cartridge length	10'';20'';30'';40''
Surface	Matte OD, Mirror OD
Acting Mode	Manual or Pneumatic or Electrical
Raw Material	Forging or Casting
Sealing Material	Silicone, EPDM,PTFE, NBR
Standard	SMS,ISO. AS,BS,3A
Application	Filter
Features	Sanitary efficient flow Simple cleanup Quick to disassemble and easy to assemble

Application instances and considerations

Application instances

In the chemical industry, vacuum filters are often used in the refining and purification of chemical products; in the pharmaceutical industry, it is used in the filtration and sterilization of pharmaceutical raw materials; in the food industry, it can be used for the clarification and filtration of fruit juice and beer; in the environmental protection industry, it can be used for waste water treatment and solid waste reduction.

Matters need attention

When using the vacuum filter, ensure that the filtration medium is clean and intact to avoid a negative impact on the filtration effect. Regularly check and maintain the vacuum system to ensure its normal operation and avoid the occurrence of air leakage phenomenon. Select the appropriate filtering media and filtering parameters according to the actual situation to achieve the best filtering effect. When dealing with flammable, explosive or toxic and harmful liquids, corresponding safety measures should be taken to ensure the safety of personnel and equipment.

* Scope of application: CIP cleaning section.

Clean →

Our in-house designers and engineers have produced countless great designs for customers from different industries

record →

Our in-house designers and engineers have produced countless great designs for customers from different industries

Add about 80% of the water →

Check the concentration →

Configure acid-base concentration →

Connect the in and out distributor →

Check the water delivery →

Checking and Cleaning →

Turn on the reflux pump →

Rinse with clean water →

Test

Operating procedures

1. Purpose To standardize the CIP cleaning procedures, maintain equipment, and ensure continuous and normal production.

2. Scope of application

CIP cleaning section.

3. Content

3.1 Cleaning sequence: clean water at 40°C, 2% alkali, clean water at 40°C, 0.8% acid, hot water above 90°C, and wash in sequence.

3.2 Clean and record according to the specified time.

3.3 Add about 80% of the water, that is, cover the heating coil.

3.4 Acid-base concentration:

3.4.1 Check the concentration before cleaning, if it is not enough, add an appropriate amount.

3.4.2 Decide whether to reformulate according to the degree of acid-base pollution.

3.5 Connect the in and out distributor correctly.

3.6 Always check the water delivery device to prevent blockage.

3.7 After checking the pipes and valves, the centrifugal pump can be started for cleaning.

3.8 When cleaning with acid and alkali, after cleaning, turn on the reflux pump, so that the acid and alkali flow into the acid tank and the alkali tank respectively.

3.9 Finally, rinse with clean water, and the cleaning is completed.

3.10 Use test paper to test if it is neutral.

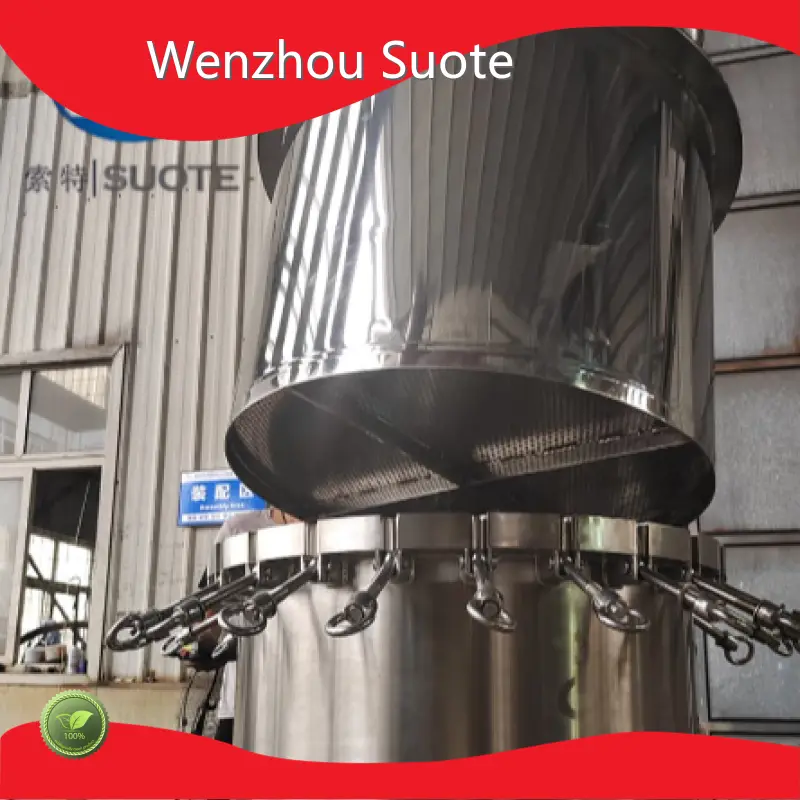

product display

8 (182)

8 (181)

8 (180)

8 (183)

Company Features

· Wenzhou Suote Pharmaceutical And Chemical Engineering Co.,Ltd is a specialist in the design, development, and manufacture of processing equipment. We have gained a reputation as a reliable company since we established years ago.

· Our company is equipped with a strong and professional R&D team. The team is able to come up with distinctive and innovative products which precisely cater to customers' needs.

· Providing innovative goods and services of the highest standards that surpass customer expectations of quality, delivery, and productivity.

Product Details

Wenzhou Suote pays great attention to the details of processing equipment. The following will show you one by one.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
