Safe to Use Sanitary Ball Valve Manufacturers
Product details of the sanitary ball valve manufacturers
Quick Overview
Wenzhou Suote Pharmaceutical And Chemical Engineering Co.,Ltd values the quality and safety of material. The product has a great market prospect, great potential and with large market share. The sanitary ball valve manufacturers developed by Wenzhou Suote is widely used in various fields. The product is extensively used in the domestic and foreign market.
Product Introduction
Compared with other ordinary products, the sanitary ball valve manufacturers produced by Wenzhou Suote has the following advantages.
sanitary valves and fittings
Three-piece stainless steel tri-clamp actuated ball valve for precise process flow control.Control the flow of your process lines more accurately with this actuated ball valve. Connect to existing sanitary process lines with tri-clover clamp connections.

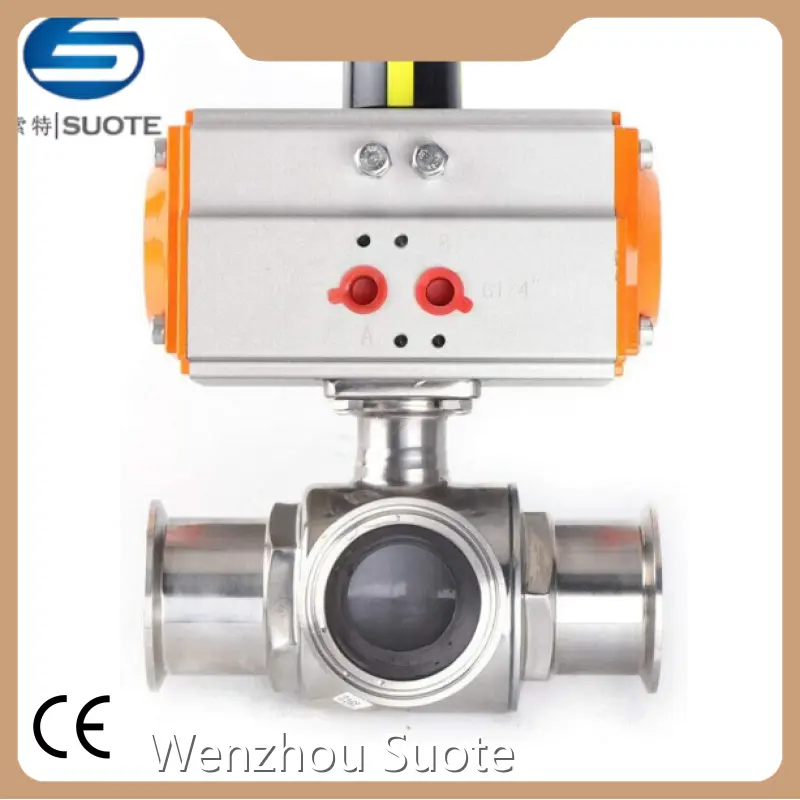

【WIDE APPLICATION】This 316L stainless steel sanitary three-way T-type three-clamp pneumatic ball valve is suitable for stainless steel pipe system, suitable for food, beer, dairy, brewing, chemical industry drainage and other industries.* 【MAIN PARAMETERS 1】Material: SUS 316L Stainless Steel, Operation: Pneumatic, Port size: 2"/Φ50mm, Sealing material: PTFE, Connection: clamping, Surface finish: <0.4μm.* 【MAIN PARAMETERS 2】Applicable temperature: -10℃~120℃ (14°F~248°F), Working pressure: 0-1.6 MPa/232PSI, Applicable medium: water, oil,
Package size: 25cm x 21cm x 15cm (10'' x 8'' x 6''), Shipping weight: 4.8kg/10lbs.* 【PROFESSIONAL BALL VALVE】Ball valve and ball with anti-static device. Oil free, free of spot inspection, waterproof and rust proof, and can reduce electromagnetic interference. Good corrosion resistance and long life.* 【USER-FRIENDLY DESIGN】Valve features dual limit, over heat, over load protection (optional). Ball valve stem explosion-proof design, fire protection design.
Color:2 Inch Port Diameter, 316L Stainless Steel
Three Piece Actuated Tri-Clamp Ball Valve Part Numbers & Dimensions
Ball Valve Assembly Instructions Ball Valve Operating Manual:
* Requires 80PSI of air to actuate the valve* Actuator sold separately to retrofit existing valves in the field.* Position indicator on top of the actuator* Available in "Normally Open," "Normally Closed," and "Dual Acting" actuation.* Actuation kits available: includes all items to actuate an existing valve- actuator, bracket, adaptor, and connecting hardware.* ISO 5211 Standard Mounting Pad* Unrestricted flow (full flow) in the open position
|
Part Number |
Size |
"A" |
"B" |
"C" |
*"D" |
"E" |
|
BLV2C-.50-NC |
1/2" |
3.5 |
6.62 |
2.45 |
4.72 |
7.66 |
|
BLV2C-.75-NC |
3/4" |
3.98 |
6.81 |
2.45 |
4.72 |
7.66 |
|
BLV2C-1-NC |
1" |
4.49 |
6.82 |
3.21 |
5.68 |
7.66 |
|
BLV2C-1.5-NC |
1-1/2" |
5.51 |
8.53 |
3.74 |
5.87 |
8.09 |
|
BLV2C-2-NC |
2" |
6.14 |
8.83 |
3.74 |
5.87 |
8.09 |
|
BLV2C-2.5-NC |
2-1/2" |
7.76 |
10.7 |
4.68 |
7.2 |
9.84 |
|
BLV2C-3-NC |
3" |
9.02 |
10.97 |
4.68 |
7.2 |
9.84 |
|
BLV2C-4-NC |
4" |
9.57 |
12.98 |
5.53 |
10.22 |
13.97 |
|
Component |
Description |
Description |
|
1 |
Body |
TP316 Stainless Steel |
|
2 |
Cap |
TP316 Stainless Steel |
|
3 |
Ball |
TP316 Stainless Steel |
|
4 |
Ball |
PTFE |
|
5 |
Seal |
PTFE |
|
6 |
Thrust Washer |
PTFE |
|
7 |
Stem Packing |
PTFE |
|
8 |
Gland Nut |
TP304 Stainless Steel |
|
9 |
Spring Washer |
TP304 Stainless Steel |
|
10 |
Stem Nut |
TP304 Stainless Steel |
|
11 |
Stem |
TP304 Stainless Steel |
|
12 |
Spring Washer |
TP304 Stainless Steel |
|
13 |
Nut |
TP304 Stainless Steel |
|
14 |
Bolt |
TP304 Stainless Steel |
|
15 |
Handle |
TP304 Stainless Steel |
|
16 |
Handle Sleeve |
PVC |
|
17 |
Locking Device |
TP304 Stainless Steel |
Application
2" stainless steel 316L sanitary three-way T-type three-clamp pneumatic ball valve is suitable for stainless steel pipe system, suitable for food, beer, dairy, brewing, chemical industry drainage and other industries. The temperature reached 150°C/302°F.
Product parameters
|
Sanitary Size |
OD of Flange End |
ID of Tube |
OD of Tube |
|
1/2″ |
0.992 |
0.370 |
0.500 |
|
3/4″ |
0.992 |
0.620 |
0.750 |
|
1″ |
1.984 |
0.870 |
1.000 |
|
1 1/2″ |
1.984 |
1.370 |
1.500 |
|
2″ |
2.516 |
1.870 |
2.000 |
|
2 1/2″ |
3.047 |
2.370 |
2.500 |
|
3″ |
3.579 |
2.870 |
3.000 |
|
4″ |
4.682 |
3.834 |
4.000 |
|
6″ |
6.562 |
5.782 |
6.000 |
|
8″ |
8.602 |
7.782 |
8.000 |
|
10″ |
10.570 |
9.782 |
10.000 |
|
12″ |
12.570 |
11.760 |
12.000 |
Other instructions
product display
Company Advantages
Wenzhou Suote Pharmaceutical And Chemical Engineering Co.,Ltd is a comprehensive enterprise. We specialize in R&D, production and sales of The main products include tanks like fermentation tanks,TK tanks,powder tanks,mechanical or magnetic stirring dosing tanks,extraction tanks,stainless steel reactors,concentrators and other tank equipment,heat exchange equipment such as column and tube heat exchangers,PLC control systems,various types of filters and purification area dedicated to various types of pipes,fittings,clamps and diaphragm valves,tank bottom valves and other engineering supporting products. Wenzhou Suote invests heavily in corporate culture construction while attaching importance to economic benefits. Moreover, we carry forward our enterprise spirit of 'unity, kindness, and mutual benefit'. With a focus on integrity and innovation, we strive to improve our core competitiveness, so as to provide consumers with more high-quality products. The final goal is to make a great contribution to sustainable development in the industry. We have our own technical research and development team with experienced technical engineers. We are dedicated to every aspect of design, production and development. Wenzhou Suote always focuses on meeting customers' needs. We are dedicated to providing customers with comprehensive and quality solutions.
We only produce high-quality products. Welcome customers to contact customer service staff for consultation!
