Product details of the sanitary 3 way valve

Product Introduction

Wenzhou Suote sanitary 3 way valve is produced with the well-selected raw materials to ensure each piece in good condition. This product has been recognized by industry experts for its excellent performance. This product is extensively patronized by customers in this field.

sanitary valves and fittings

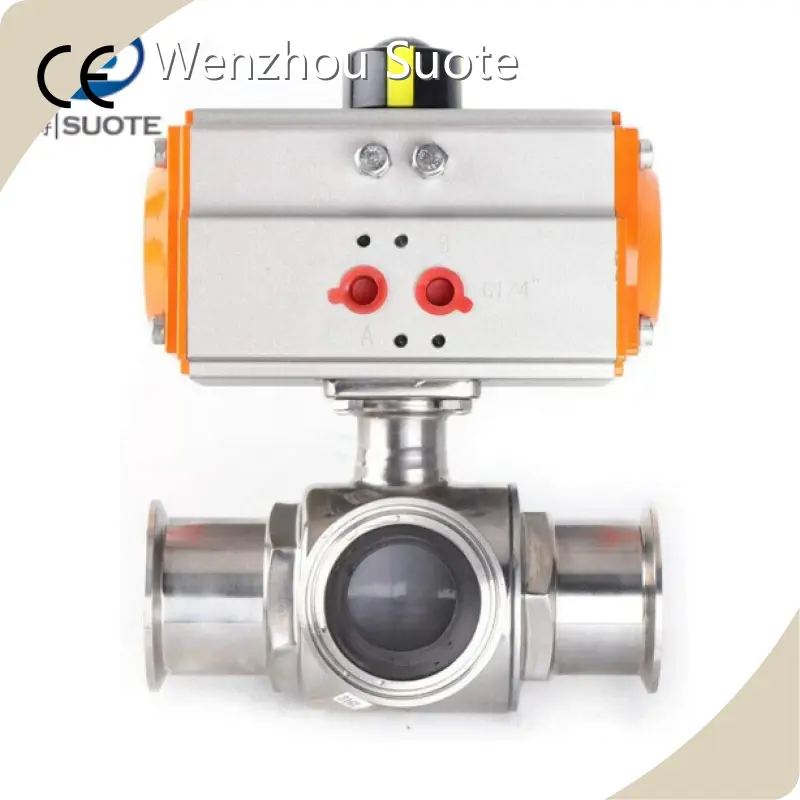

Three-piece stainless steel tri-clamp actuated ball valve for precise process flow control.Control the flow of your process lines more accurately with this actuated ball valve. Connect to existing sanitary process lines with tri-clover clamp connections.

【WIDE APPLICATION】This 316L stainless steel sanitary three-way T-type three-clamp pneumatic ball valve is suitable for stainless steel pipe system, suitable for food, beer, dairy, brewing, chemical industry drainage and other industries.* 【MAIN PARAMETERS 1】Material: SUS 316L Stainless Steel, Operation: Pneumatic, Port size: 2"/Φ50mm, Sealing material: PTFE, Connection: clamping, Surface finish: <0.4μm.* 【MAIN PARAMETERS 2】Applicable temperature: -10℃~120℃ (14°F~248°F), Working pressure: 0-1.6 MPa/232PSI, Applicable medium: water, oil,

Package size: 25cm x 21cm x 15cm (10'' x 8'' x 6''), Shipping weight: 4.8kg/10lbs.* 【PROFESSIONAL BALL VALVE】Ball valve and ball with anti-static device. Oil free, free of spot inspection, waterproof and rust proof, and can reduce electromagnetic interference. Good corrosion resistance and long life.* 【USER-FRIENDLY DESIGN】Valve features dual limit, over heat, over load protection (optional). Ball valve stem explosion-proof design, fire protection design.

Color:2 Inch Port Diameter, 316L Stainless Steel

Three Piece Actuated Tri-Clamp Ball Valve Part Numbers & Dimensions

Ball Valve Assembly Instructions Ball Valve Operating Manual:

* Requires 80PSI of air to actuate the valve* Actuator sold separately to retrofit existing valves in the field.* Position indicator on top of the actuator* Available in "Normally Open," "Normally Closed," and "Dual Acting" actuation.* Actuation kits available: includes all items to actuate an existing valve- actuator, bracket, adaptor, and connecting hardware.* ISO 5211 Standard Mounting Pad* Unrestricted flow (full flow) in the open position

Part Number	Size	"A"	"B"	"C"	*"D"	"E"
BLV2C-.50-NC	1/2"	3.5	6.62	2.45	4.72	7.66
BLV2C-.75-NC	3/4"	3.98	6.81	2.45	4.72	7.66
BLV2C-1-NC	1"	4.49	6.82	3.21	5.68	7.66
BLV2C-1.5-NC	1-1/2"	5.51	8.53	3.74	5.87	8.09
BLV2C-2-NC	2"	6.14	8.83	3.74	5.87	8.09
BLV2C-2.5-NC	2-1/2"	7.76	10.7	4.68	7.2	9.84
BLV2C-3-NC	3"	9.02	10.97	4.68	7.2	9.84
BLV2C-4-NC	4"	9.57	12.98	5.53	10.22	13.97

Component	Description	Description
1	Body	TP316 Stainless Steel
2	Cap	TP316 Stainless Steel
3	Ball	TP316 Stainless Steel
4	Ball	PTFE
5	Seal	PTFE
6	Thrust Washer	PTFE
7	Stem Packing	PTFE
8	Gland Nut	TP304 Stainless Steel
9	Spring Washer	TP304 Stainless Steel
10	Stem Nut	TP304 Stainless Steel
11	Stem	TP304 Stainless Steel
12	Spring Washer	TP304 Stainless Steel
13	Nut	TP304 Stainless Steel
14	Bolt	TP304 Stainless Steel
15	Handle	TP304 Stainless Steel
16	Handle Sleeve	PVC
17	Locking Device	TP304 Stainless Steel

Application

2" stainless steel 316L sanitary three-way T-type three-clamp pneumatic ball valve is suitable for stainless steel pipe system, suitable for food, beer, dairy, brewing, chemical industry drainage and other industries. The temperature reached 150°C/302°F.

Product parameters

Sanitary Size	OD of Flange End	ID of Tube	OD of Tube
1/2″	0.992	0.370	0.500
3/4″	0.992	0.620	0.750
1″	1.984	0.870	1.000
1 1/2″	1.984	1.370	1.500
2″	2.516	1.870	2.000
2 1/2″	3.047	2.370	2.500
3″	3.579	2.870	3.000
4″	4.682	3.834	4.000
6″	6.562	5.782	6.000
8″	8.602	7.782	8.000
10″	10.570	9.782	10.000
12″	12.570	11.760	12.000

Other instructions

Wenzhou Suote Sanitary 3 Way Valve Factory Direct Supply 10

Material

This 3 piece full port ball valve is made of stainless steel 304, it is corrosion resistant.

Wenzhou Suote Sanitary 3 Way Valve Factory Direct Supply 11

Serviceable ball valve

This stainless steel ball valve can be taken apart via threads. It can be easier serviced and cleaned.

Connection Type

This full port ball valve is female-female threaded type. Female-female type connector is availabe.

Seats & Seals

The material of seal is PTFE(teflon),PTFE seats reduce the risk of leakage.

Wenzhou Suote Sanitary 3 Way Valve Factory Direct Supply 14

Clean →

Our in-house designers and engineers have produced countless great designs for customers from different industries

Wenzhou Suote Sanitary 3 Way Valve Factory Direct Supply 15

record →

Our in-house designers and engineers have produced countless great designs for customers from different industries

Add about 80% of the water →

Check the concentration →

Configure acid-base concentration →

Connect the in and out distributor →

Check the water delivery →

Checking and Cleaning →

Turn on the reflux pump →

Rinse with clean water →

Test

Operating procedures

1. Purpose To standardize the CIP cleaning procedures, maintain equipment, and ensure continuous and normal production.

2. Scope of application

CIP cleaning section.

3. Content

3.1 Cleaning sequence: clean water at 40°C, 2% alkali, clean water at 40°C, 0.8% acid, hot water above 90°C, and wash in sequence.

3.2 Clean and record according to the specified time.

3.3 Add about 80% of the water, that is, cover the heating coil.

3.4 Acid-base concentration:

3.4.1 Check the concentration before cleaning, if it is not enough, add an appropriate amount.

3.4.2 Decide whether to reformulate according to the degree of acid-base pollution.

3.5 Connect the in and out distributor correctly.

3.6 Always check the water delivery device to prevent blockage.

3.7 After checking the pipes and valves, the centrifugal pump can be started for cleaning.

3.8 When cleaning with acid and alkali, after cleaning, turn on the reflux pump, so that the acid and alkali flow into the acid tank and the alkali tank respectively.

3.9 Finally, rinse with clean water, and the cleaning is completed.

3.10 Use test paper to test if it is neutral.
