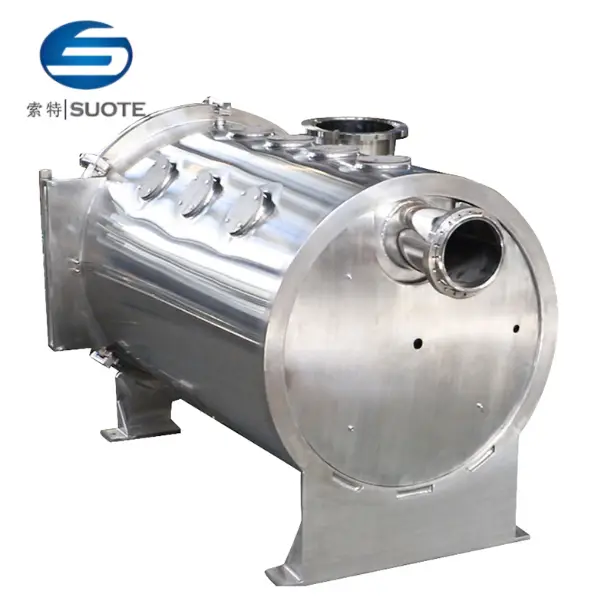

Wenzhou Suote Stainless Steel Process Tanks Factory Direct Supply
Product details of the stainless steel process tanks
Product Introduction
Wenzhou Suote stainless steel process tanks is offered adopting high-end production technology and excellent equipment. The product is functional with perfect and reliable performance. This product has received many praises from customers.
Basic structure and characteristics
◆ Structure composition: the horizontal storage tank is usually composed of tank body, tank holder, inlet and outlet port, exhaust port, measuring hole and water drain and other parts. The tank is generally cylindrical with flat or curved bottom, made of stainless steel, carbon steel or glass steel to ensure its mechanical strength and anti-corrosion properties.
◆ Design features: horizontal storage tank design is reasonable, advanced technology, the tank can be vertical or horizontal single or double layer structure, and according to the user
requirements filled with insulation materials. The inner liner is polished to a certain standard, and the exterior is insulated by mirror plate or frosted board to improve its insulation performance.

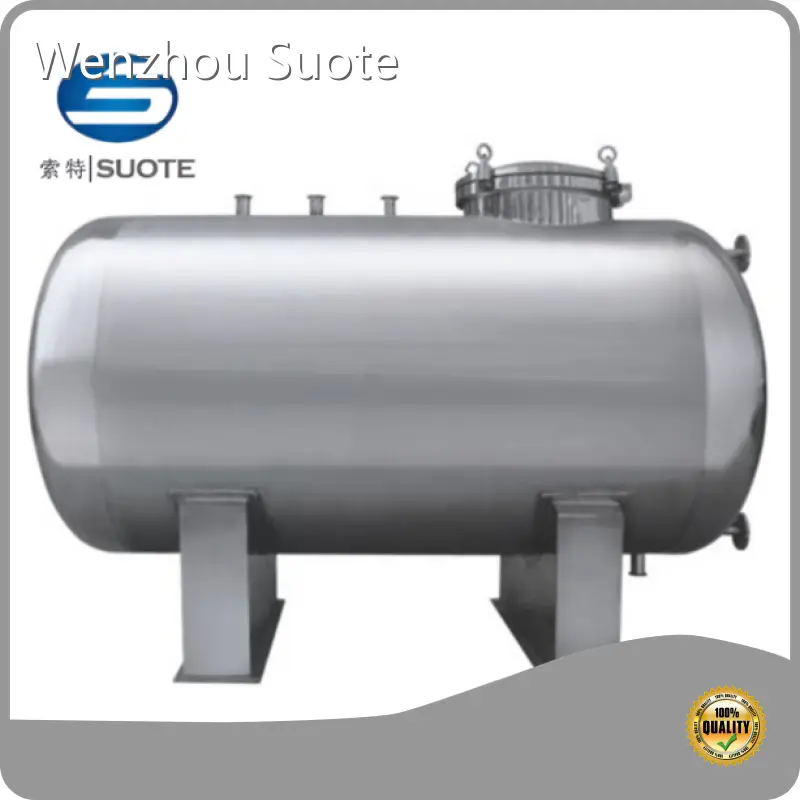

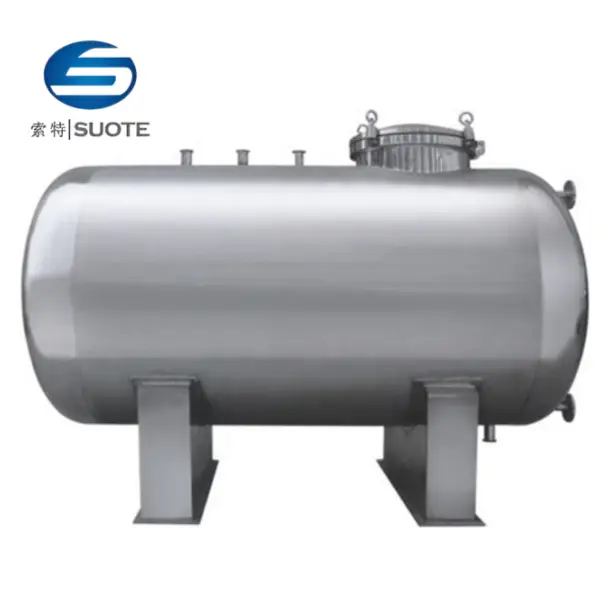

Horizontal storage tank components
Description：
The company's production of distilled water tank,completely manufactured in accordance with the national GMPcertification requirements. Automatic control, to ensure that 80of the memory, 65 of the small cycle and large cycle of theprocess requirements. Tank using vertical or horizontal two,are double structure. The polishing accuracy of Rar0.45. spiraltube with heating, and filled with polyurethane foam insulationmaterials.External mirror panel or matte board insulation, tankgloss consistent, Where contact with liquid components areusing 316L material, and the rest are using 304 materials. Thetop is provided with a water inlet and a reflux opening, oraldisinfection and cleaning port, manhole, the installation of0.22um air respirator. At the bottom of a condensed wateroutlet, distilled water outlet and a drain, the liquid level,temperature open mouth.Control cabinet operation,theinstrument display distilled water temperature, liquid level.Achieve constant temperature control and provide the upperand lower alarm functions.
Advantages and characteristics
◆ Capacity and pressure: compared with vertical cylindrical tanks, horizontal tanks have relatively small capacity, but they have a large pressure range, so it is widely used as a process container in various production processes.
◆ Stability and safety: the horizontal tank is arranged horizontally on the ground, the bottom provides stable support, not easy to dump, and its structure design is reasonable to ensure the safety of stored substances.
◆ Regulation and control: the horizontal storage tank is equipped with instruments, valves, pipes and other accessories, to achieve the accurate adjustment of the internal temperature, pressure and other parameters, to meet the production requirements. At the same time, equipped with safety valves and other safety equipment, in order to prevent the occurrence of accidents
Product parameters
|
Volume |
100L-30000L |
|
Material |
Stainless Steel 304/316L |
|
Structure |
Single layer, Double layers |
|
Application |
Dairy, Food,Beverage,Cosmetic, etc |
|
Material of heat keeping |
Urethane foam |
|
Feature |
Temperature bearing as anti-aging insulated water storage tank |
|
Standard |
GMP |
|
Polishing Accuracy Of Inner Wall |
Ra0.45 |
|
Air breathing apparatus |
0.22un |
|
Voltage |
220V / 380V / 415V |
|
Surface treatment |
mirror or mat polished |
|
Thickness |
5-10mm |
Function and application
Things to note：Our existing models include 50L-10000L. If you need to customize them, please provide our drawings or the following parameters: volume, diameter and height, material, thickness, additional equipment and interface, and safety design.

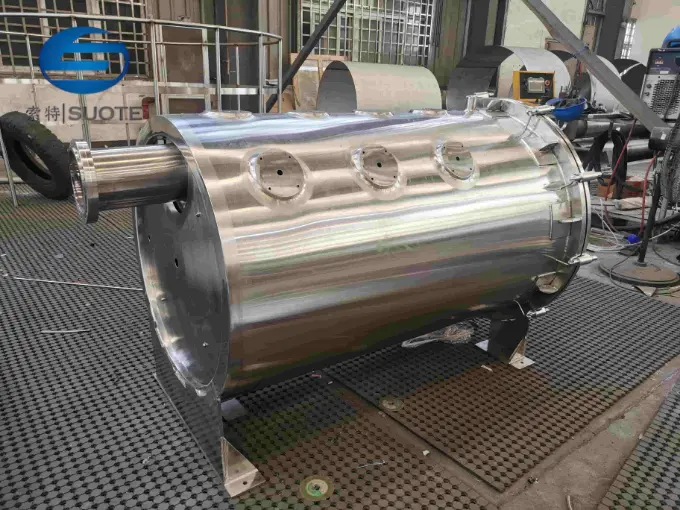

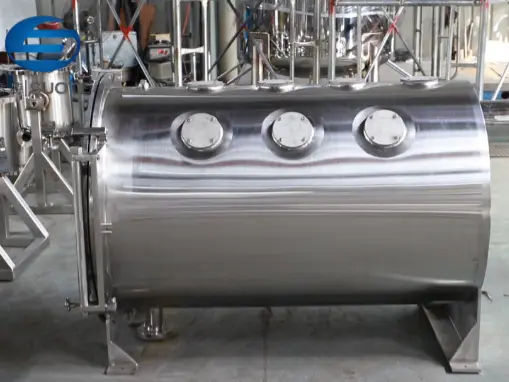

product display
Company Feature
• With a complete service system, Wenzhou Suote is dedicated to providing consumers with comprehensive and thoughtful services.
• Wenzhou Suote has sales outlets in many provinces, municipalities and autonomous regions in China, making the sales range covering the whole country.
• Good location advantages and developed transportation and infrastructure are conducive to long-term development.
• Since the establishment in our company has gained great growth through the absorption and acceptance of advanced technology and knowledge. Through the continuous breakthrough for years, we have made remarkable achievements in the industry.
Hello, if you are interested in Wenzhou Suote's products, please contact us quickly. Your inquiry, presence and guidance are welcome!
