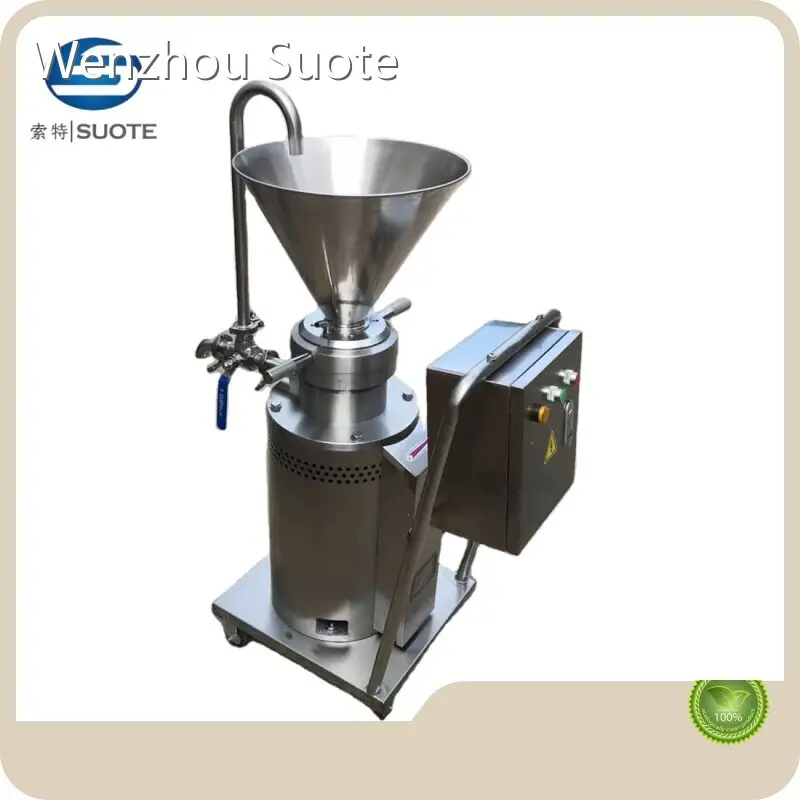

Colloid Mill Machine Factory Direct Supply
Product details of the colloid mill machine
Quick Detail
The design of colloid mill machine is completed by famous designers from international companies. Before delivery, the product must go through strict inspection to ensure high quality in performance, availability and other aspects. Wenzhou Suote Pharmaceutical And Chemical Engineering Co.,Ltd, which specializes in the supply of colloid mill machine, is famous for its name as Wenzhou Suote.
Product Information
Wenzhou Suote strives excellent quality by attaching great importance to details in the production of colloid mill machine.
Design feature
◆ Components: Vertical colloidal grinding is mainly composed of shell, stator, rotor, regulating mechanism, cooling mechanism, motor and other parts. Its core components such as moving grinding plate and static grinding plate, mechanical seals and other materials are excellent, usually made of stainless steel or special materials, to ensure corrosion resistance and non-toxicity.
◆ Structure form: vertical colloidal grinding adopts vertical split structure, long running time, not easy to cause the axis eccentric, and easy to replace and maintain. The motor part can be
specially designed as needed, such as adding a water retaining plate to prevent leakage.
Vertical colloid mill components
Applied range
Vertical colloid grinding has a wide range of applications, including but not limited to the following fields:
◆ Food industry: used for the processing of dairy products, chocolate, bean sauce, jam, peanut butter, cream drinks and other products.
◆ Chemical industry: used for pigment, lubricating oil, spices, dye, emulsified asphalt, emulsified rubber, catalyst, paint coating and other materials treatment.
◆ Daily chemical industry: used in the production of shoe oil, toothpaste, cosmetics, balsam, soap, detergent and other products.
◆ Other industries: also applied in the construction industry, paper industry,
plastic industry, battery industry and other fields.
Product parameters
| Model | JML-50 | JML-80 | JML-100 | JML-120 | JMF-80 | JMF-100 | JMF-120 | JMF-140 | JMF-180 | ||
| Emulsification fineness um(single cycle or multi-cycle) | 5~40 | 3~40 | 2~40 | 2~40 | 3~40 | 2~40 | 2~40 | 2~40 | 2~40 | ||
| Adjustment range mm | 1-0.01 | 1-0.01 | 1-0.01 | 1-0.01 | 1-0.01 | 1-0.01 | 1-0.01 | 1-0.01 | 1-0.01 | ||
| Output t/h change according to materials | 0.01-0.2 | 0.3-1 | 0.5-2 | 0.7-3 | 0.3-1 | 0.5-2 | 0.7-3 | 1-4 | 2-5 | ||
| Motor | Power kw | 1.1 | 3 | 5.5 | 7.5 | 4 | 5.5 | 7.5 | 11 | 15 | |
| Pressurev | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | ||
| Stirringspeedr/min | 2880 | 2880 | 2880 | 2880 | 2880 | 2880 | 2880 | 2880 | 2880 | ||
| Grinding diameter mm | $50 | $80 | $100 | $120 | 80 | $100 | $120 | $140 | $180 | ||
| Discharge port diameter(hour) | $15 | $25 | $32 | $40 | 625 | 632 | 640 | 640 | 665 | ||
| Cooling water pipe(hour) | $1/8" | 61/4" | Φ1/4" | 61/4" | Φ1/4" | Φ1/4" | Φ1/4" | $1/4° | $1/4" | ||
| Dimensions | Length mm | 420 | 520 | 560 | 560 | 640 | 750 | 750 | 820 | 980 | |
| Width mm | 280 | 400 | 420 | 420 | 550 | 620 | 620 | 700 | 800 | ||
| Height mm | 760 | 900 | 950 | 950 | 1030 | 1080 | 1080 | 1250 | 1550 | ||
| Weight kg | 45 | 84 | 113 | 135 | 210 | 275 | 295 | 325 | 450 | ||
Workflow and considerations
product display
Company Introduction
Wenzhou Suote Pharmaceutical And Chemical Engineering Co.,Ltd is located in wen zhou, and is a modern company of research, production and sales, with the key product of The main products include tanks like fermentation tanks,TK tanks,powder tanks,mechanical or magnetic stirring dosing tanks,extraction tanks,stainless steel reactors,concentrators and other tank equipment,heat exchange equipment such as column and tube heat exchangers,PLC control systems,various types of filters and purification area dedicated to various types of pipes,fittings,clamps and diaphragm valves,tank bottom valves and other engineering supporting products. With a sound service system, Wenzhou Suote is committed to sincerely providing excellent services including pre-sale, in-sale, and after-sale. We meet users' needs and improve the user experience. We are committed to providing customers with quality products. We sincerely welcome customers with needs to contact us, and look forward to establishing a long-term friendly relation with you!
Production Line
Processing Equipment
