Product details of the grinding equipment
Product Description
Wenzhou Suote grinding equipment is designed because we get inspired by the industrial trends. We always pay attention to the industry quality standards and the quality of our products is guaranteed. Wenzhou Suote Pharmaceutical And Chemical Engineering Co.,Ltd has professional management and international quality control system.
Design feature
◆ Separation design: horizontal colloidal grinding usually adopts the motor and grinding body separate design, making the equipment structure more compact, operation and maintenance more convenient.
◆ Excellent material: the main parts such as stator and rotor are made of stainless steel and other corrosion-resistant and non-toxic materials to ensure the safety and hygiene of products.
◆ Flexible adjustment: the equipment is equipped with a regulating mechanism, such as positioning plate and dial, to adjust the gap between the stator and rotor according to the processing requirements, so as to control the machining accuracy.
◆ Strong adaptability: horizontal colloid grinding can be widely used in food, medicine, chemical industry, cosmetics and other industries, for different characteristics of good adaptability to
materials.
Working principle
The basic working principle of colloidal mill is shearing, grinding as well ashigh-speed stirring applied force, grinding is finished depending on the relative movement of tooth-form slope, one of them rotates at high speed, while the other stays still to make materials that passing between tooth-form slopes receive great shear force and friction, and to grind, emulsify, smash, homogenize and mix the munder complex forces such as high-firequency shake, high-speed vortex and others at the same time, so as to achieve the effect of fine and super micro.
Applied range
Horizontal colloidal grinding is mainly used for ultra-micro crushing, emulsification, homogenization and mixing of wet materials. In the food industry, it can be used for the processing of jam, sauces, dairy products and other products; in the chemical industry, it is used for the fine grinding of pigments, coatings, paints and other materials. In addition, horizontal colloidal grinding is also suitable for the construction industry, paper industry, plastic industry and other fields.
Product parameters
| Model | JML-50 | JML-80 | JML-100 | JML-120 | JMF-80 | JMF-100 | JMF-120 | JMF-140 | JMF-180 | ||
| Emulsification fineness um(single cycle or multi-cycle) | 5~40 | 3~40 | 2~40 | 2~40 | 3~40 | 2~40 | 2~40 | 2~40 | 2~40 | ||
| Adjustment range mm | 1-0.01 | 1-0.01 | 1-0.01 | 1-0.01 | 1-0.01 | 1-0.01 | 1-0.01 | 1-0.01 | 1-0.01 | ||
| Output t/h change according to materials | 0.01-0.2 | 0.3-1 | 0.5-2 | 0.7-3 | 0.3-1 | 0.5-2 | 0.7-3 | 1-4 | 2-5 | ||
| Motor | Power kw | 1.1 | 3 | 5.5 | 7.5 | 4 | 5.5 | 7.5 | 11 | 15 | |
| Pressurev | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | ||
| Stirringspeedr/min | 2880 | 2880 | 2880 | 2880 | 2880 | 2880 | 2880 | 2880 | 2880 | ||
| Grinding diameter mm | $50 | $80 | $100 | $120 | 80 | $100 | $120 | $140 | $180 | ||
| Discharge port diameter(hour) | $15 | $25 | $32 | $40 | 625 | 632 | 640 | 640 | 665 | ||
| Cooling water pipe(hour) | $1/8" | 61/4" | Φ1/4" | 61/4" | Φ1/4" | Φ1/4" | Φ1/4" | $1/4° | $1/4" | ||
| Dimensions | Length mm | 420 | 520 | 560 | 560 | 640 | 750 | 750 | 820 | 980 | |
| Width mm | 280 | 400 | 420 | 420 | 550 | 620 | 620 | 700 | 800 | ||
| Height mm | 760 | 900 | 950 | 950 | 1030 | 1080 | 1080 | 1250 | 1550 | ||
| Weight kg | 45 | 84 | 113 | 135 | 210 | 275 | 295 | 325 | 450 | ||
Application
JM series colloidal mill is a new-type equipment of wet type super micro grain processing, suitable for the homogenization, emulsification, separation, smash and milling of various emulsions. It is widely used in foodstuff (fruit jam, juice, albumen milk, soy milk, milk tea, dairy, beverage, etc.), pharmacy (various syrups, nutrition liquid, Chinese Traditional Patent Medicine, poultice, etc.), daily chemical (toothpaste, cosmetic, washing lotion, etc.), chemical industry (pigment, dyestuff, dope, lubrication, petroleum activator, etc.), emulsion asphalt, coal floating agent, ceramic glaze, emulsion detonator, nanometer material, etc.

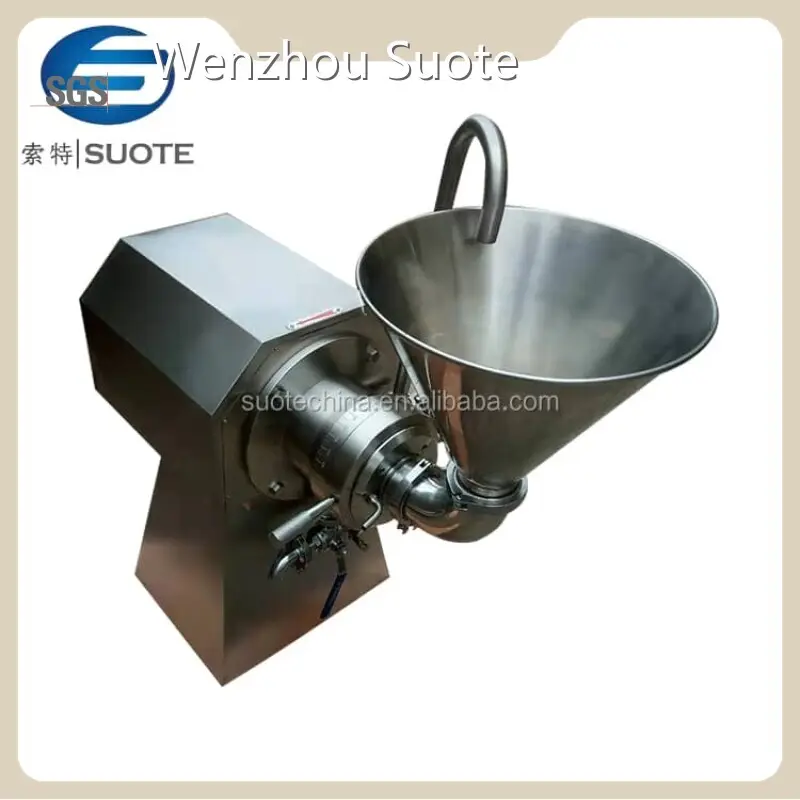

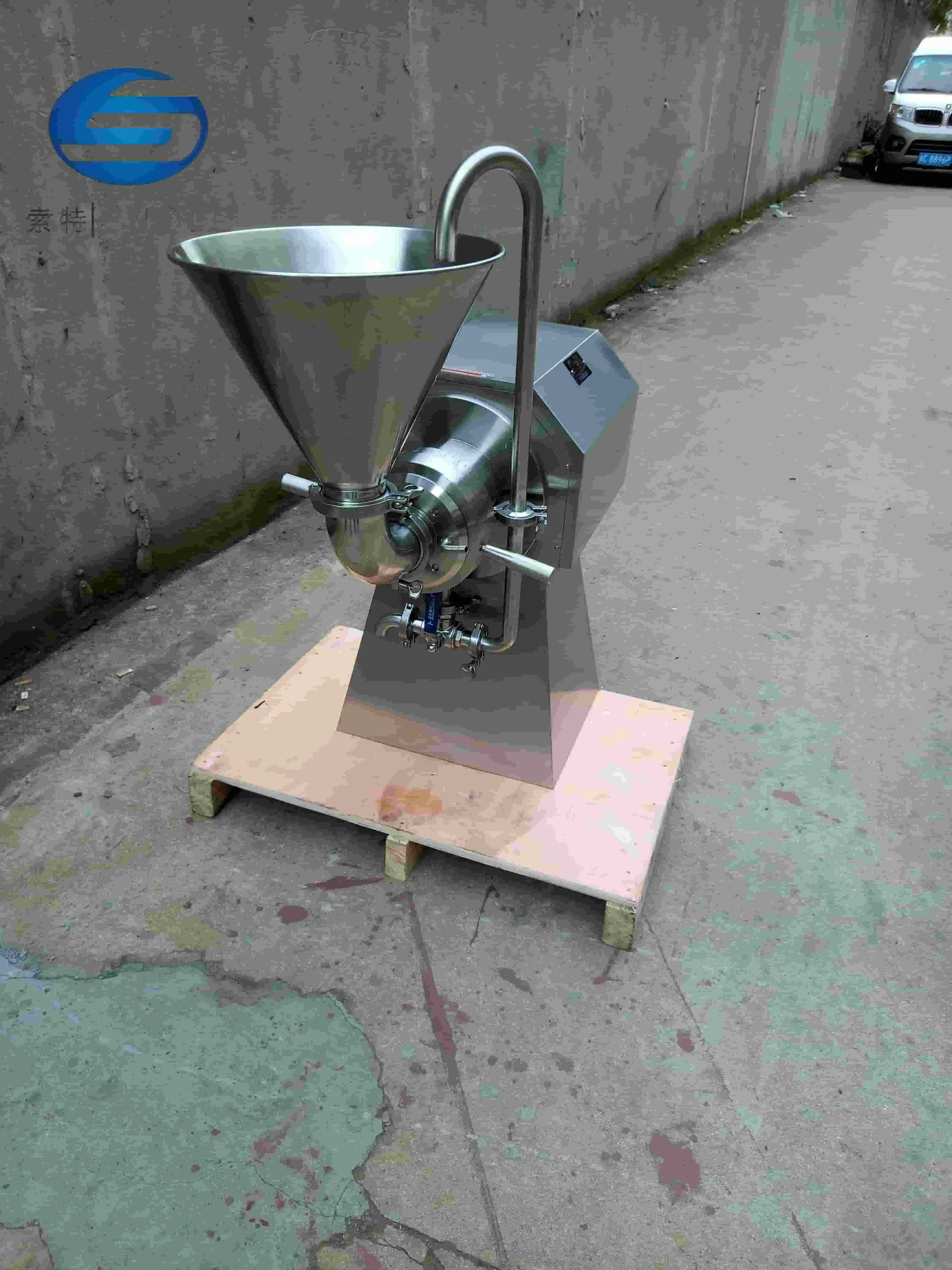

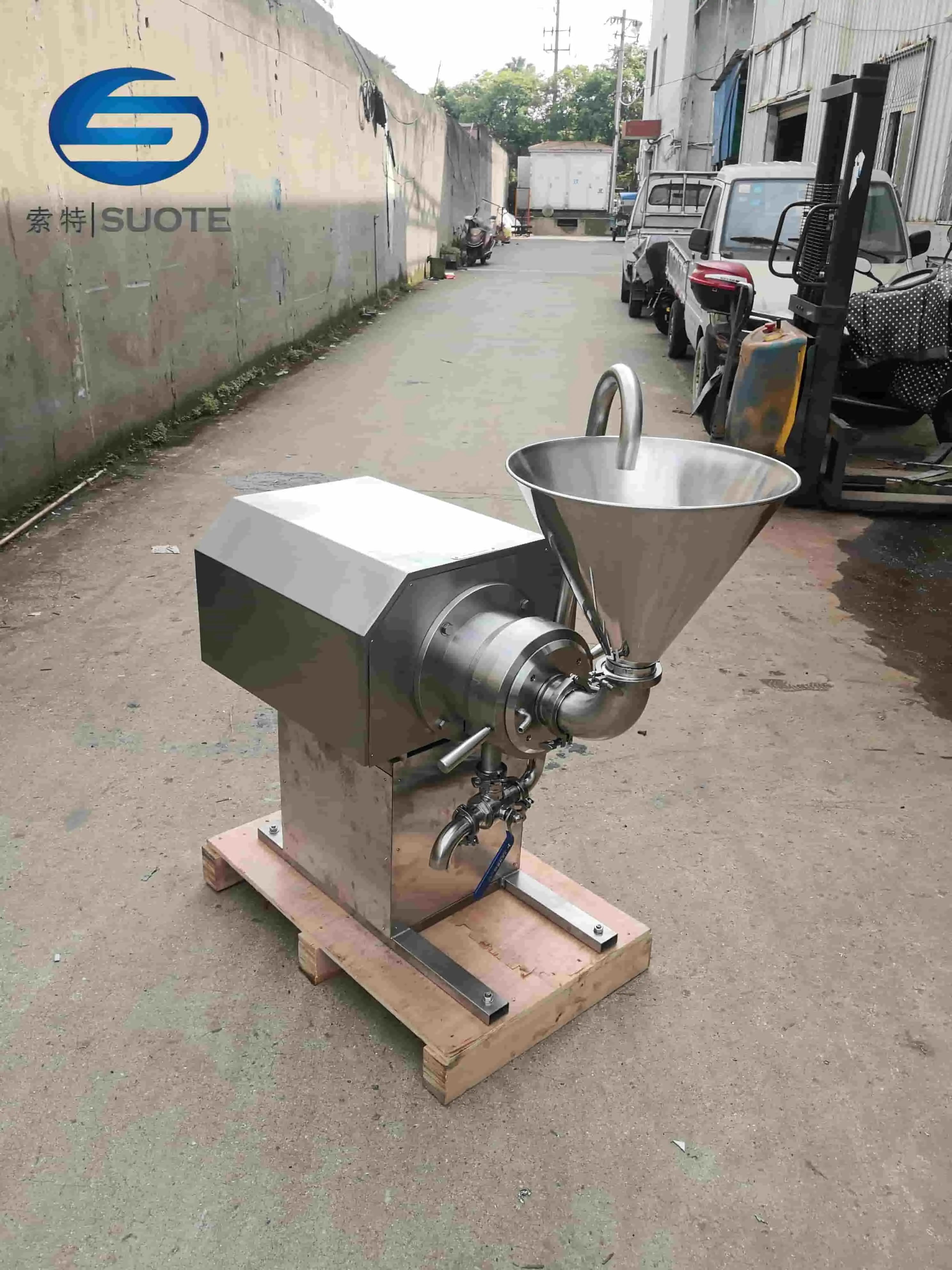

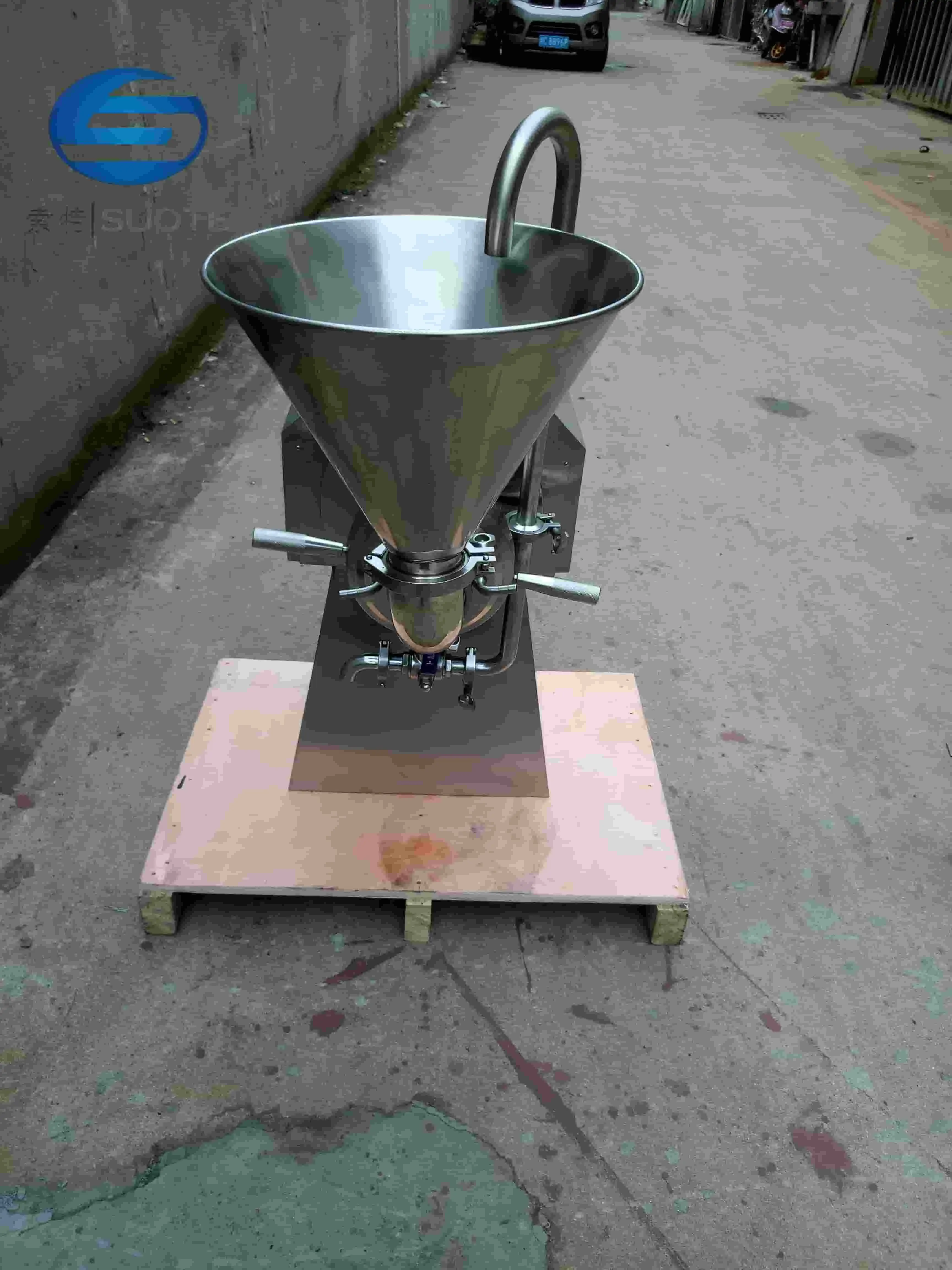

product display
Company Advantage
• Our company was founded in After years of precipitation and accumulation, we have developed into a modern enterprise with strong strength, standardized management and broad sales market.
• Wenzhou Suote enjoys an excellent geographical location with traffic convenience. They are a good foundation for our own development.
• Wenzhou Suote's marketing network covers all over the world.
Do you want to buy satisfactory The main products include tanks like fermentation tanks,TK tanks,powder tanks,mechanical or magnetic stirring dosing tanks,extraction tanks,stainless steel reactors,concentrators and other tank equipment,heat exchange equipment such as column and tube heat exchangers,PLC control systems,various types of filters and purification area dedicated to various types of pipes,fittings,clamps and diaphragm valves,tank bottom valves and other engineering supporting products at a favorable price? Please contact Wenzhou Suote or leave your contact information.
