Hot Sale Stainless Mixing Tank Price List

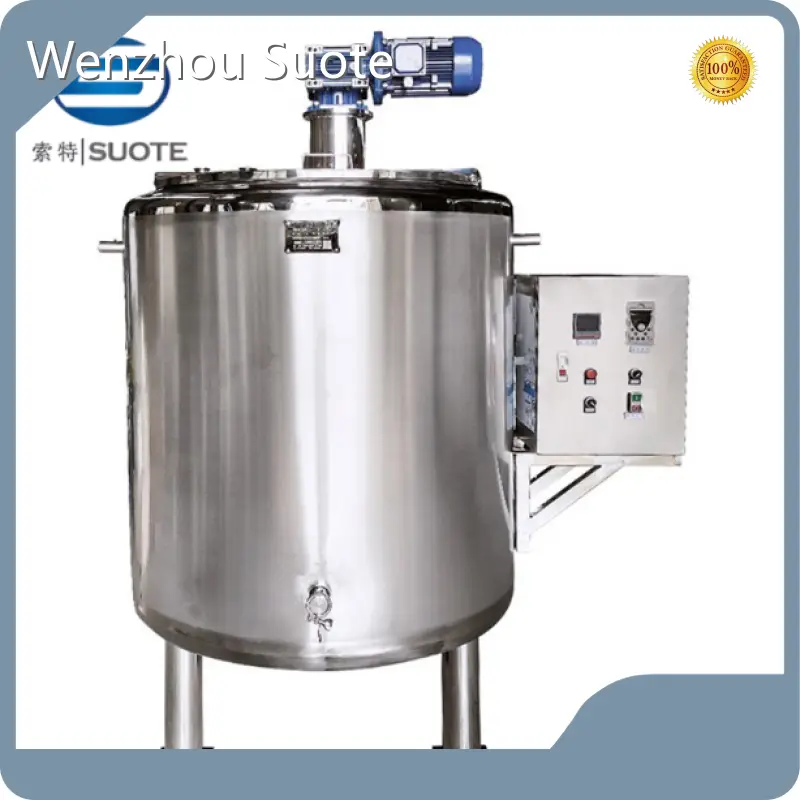

Product details of the stainless mixing tank
Product Introduction
The materials of Wenzhou Suote stainless mixing tank is safe, do no harm to human health. The quality of the product is assured in every step of production. Wenzhou Suote Pharmaceutical And Chemical Engineering Co.,Ltd keeps customers' need in mind and apply the state-of-art technology to provide professional services.
Liquid preparation tank structure
The liquid preparation tank has a reasonable design and advanced technology, fully meeting the requirements of national GMP certification. The tanks are all of vertical double-layer structure, and the polishing precision of the inner tank is Ra0.45. The inner cylinder is heated by winding a spiral belt and filled with polyurethane material for insulation. The exterior is insulated with mirror panel or frosted panel, and the tank body has consistent luster. All parts in contact with the liquid medicine are made of 316L material, and the rest are made of 304 material. The bottom head of the inner tank is concave-convex. Axial flow stirring with eccentric wall is adopted. The top of the tank is equipped with a water inlet, a return port, a disinfection port, a cleaning ball, an inlet filler port, a breathing port, and a 0.22um air respirator and a stirring system are installed. The bottom of the tank is equipped with a condensate outlet, a discharge outlet, a sewage outlet, a sampling port, a temperature probe, and a liquid level sensor. Equipped with a control cabinet for operation, the instrument displays the temperature and liquid level of the liquid medicine and provides upper and lower limit alarm functions. According to user requirements, the dilute preparation tank can be equipped with a nitrogen filling device and a pH meter.
Dispensing tank components
Liquor system adopts airtight inner loop method, system by both fastclamp connection all adopt international standards, pump for health level.for the diaphragm valve, valve adopts the SUS304 or SUS316L, and provide healh level of mechanical seals, temperature control instrument.breathing filters, automatic sprinkler sprinkler device, such as reigned canrealize automatic online cleaning and sterilization, ensure full compliancewith GMP pharaceutical production production process requirements.
The main characteristics of the liquid medicine preparation system are as follows
1. It is hygienic. The flow path for transportation is simple and designed to be completely drainable. Horizontal pipelines must have a slope of >1%. Diaphragm valves on horizontal pipelines must be installed inclined to ensure no residual liquid.
2. The liquid preparation tank is equipped with a metering and weighing system for setting the volume of liquid medicine in the storage tank. To meet the concentration requirements of liquid medicine, a hygienic stirring paddle is also needed to ensure uniformity of the liquid medicine.
3. The secondary liquid medicine sterilization filtration system uses multiple filtration methods. This can reduce the risk of misoperation and can realize online monitoring, online alarming, and real-time recording.
Product parameters
| volume | W.P(Mpa) | Temp(℃) | RPMr/min | H(mm) | H1(mm) | D(mm) | D1(mm) | h(mm) |
| 100 | 0.25 | 100 | 0-720 | 1750 | 450 | Φ750 | Φ550 | 300 |
| 200 | 0.25 | 100 | 0-720 | 1950 | 600 | Φ850 | Φ650 | 300 |
| 600 | 0.25 | 100 | 0-720 | 2500 | 1000 | Φ1100 | Φ900 | 350 |
| 1000 | 0.25 | 100 | 0-720 | 2850 | 1200 | Φ1300 | Φ1100 | 350 |
| 2000 | 0.25 | 100 | 0-720 | 3350 | 1500 | Φ1500 | Φ1300 | 350 |
| 3000 | 0.25 | 100 | 0-720 | 3700 | 1700 | Φ1700 | Φ1500 | 350 |
| 5000 | 0.25 | 100 | 0-720 | 4250 | 2000 | Φ2000 | Φ1800 | 400 |
| 10000 | 0.25 | 100 | 0-720 | 5000 | 2500 | Φ2500 | Φ2300 | 400 |
The composition of the fluid distribution system
product display
Company Advantage
• Wenzhou Suote's location has traffic convenience with multiple traffic lines joining up. This contributes to the transportation and ensures the timely supply of products.
• Under the general trend of 'Internet +', our company is involved in network marketing. In order to meet the needs of different consumer groups as much as possible, we provide consumers with more comprehensive and professional service.
• In recent years, Wenzhou Suote has continuously optimized the export environment and has striven to expanded export channels. Besides, we have actively opened up the foreign market to change the simplex situation of the sales market. All these contribute to the increment of market share in the international market.
• Wenzhou Suote has a powerful management team, an inexorable R&D team, a professional production team, and a strong sales team. This provides favorable conditions for company development.
Wenzhou Suote's The main products include tanks like fermentation tanks,TK tanks,powder tanks,mechanical or magnetic stirring dosing tanks,extraction tanks,stainless steel reactors,concentrators and other tank equipment,heat exchange equipment such as column and tube heat exchangers,PLC control systems,various types of filters and purification area dedicated to various types of pipes,fittings,clamps and diaphragm valves,tank bottom valves and other engineering supporting products are of reasonable price and excellent quality. We sincerely invite new and old customers to contact us and discuss business!
