Tank Agitator Mixer by Wenzhou Suote

Inquiry

Product details of the tank agitator mixer

Product Introduction

The production technology of Wenzhou Suote tank agitator mixer has been greatly improved, promoting standardization production. The product meets rigorous quality standards across the whole industry. Wenzhou Suote Pharmaceutical And Chemical Engineering Co.,Ltd undertakes to ensure that its production complies with the quality assurance system.

Specific applications of the buffer tank in different fields

1. Supply equipment

In the water supply system, the buffer tank is used to reduce the inhomogeneity of the flow in the pipeline, stabilize the water pressure, and avoid the frequent start of the pump due to the pressure change. When the water pressure in the system changes slightly, the air bag of the buffer tank will automatically expand or contract, playing a buffer role on the water pressure change, so as to ensure the stability of the water pressure of the system.

2. Other industrial sectors

Boilers and water heaters: In these devices, the buffer tank can stabilize the water pressure and ensure the normal operation of the equipment while reducing energy consumption. Frequency conversion and constant pressure water supply equipment: the application of buffer tank can improve the stability and efficiency of water supply equipment, and reduce the problems caused by pressure fluctuations.
Chemical industry: In the storage and transportation process of chemical raw materials or products, the buffer tank can help to control the gas pressure in the reaction process, reduce the gas fluctuations, and ensure the stability of the reaction process.
Food processing industry: in the process of vacuum packaging and vacuum storage, the buffer tank can maintain a stable vacuum environment and extend the freshness period of food.
Medical and scientific research fields: In medical equipment and laboratory equipment, the buffer tank is used to control the gas pressure in the equipment to ensure the normal operation of the equipment and the accuracy of the experimental results.
Aerospace field: In spacecraft, satellites and other space equipment, buffer tanks are used to store and transport gases or liquids to ensure the normal operation of the equipment in the space environment.

Buffer tank component

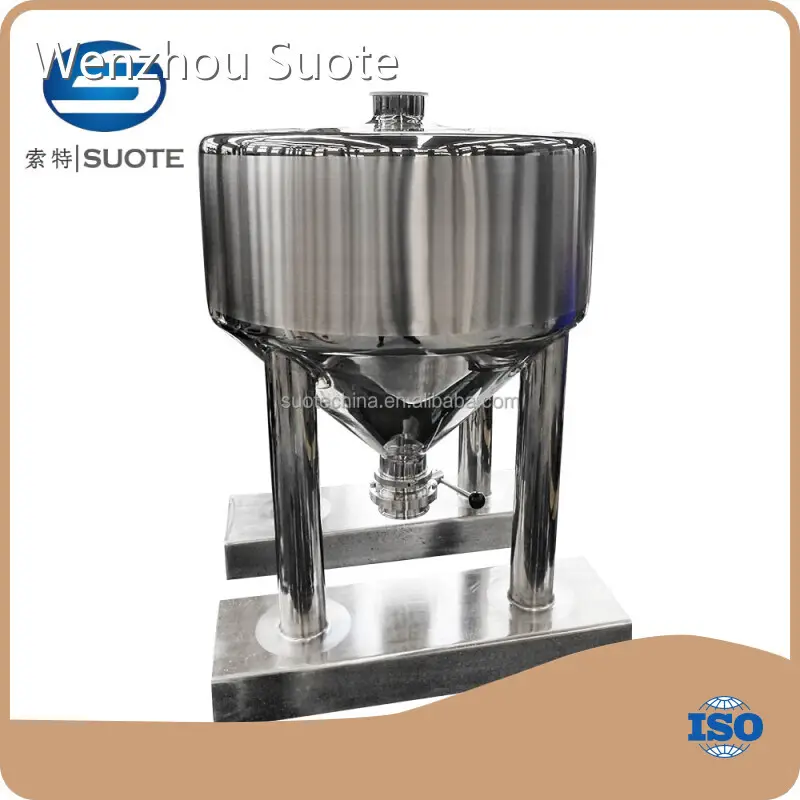

This is 1500L stainless steel solid storage tanks liquid chemical storage equipment buffer storage tank.

stainless steel solid storage tanks liquid chemical storage equipment buffer storage tank

1. Used as liquid storage tank, liquid composing tank, temporary storage tank and water storage tank etc.

2. Ideal in field such as foods, dairy products, fruit juice beverages, chemical industry and biological engineering etc.

3. Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation.

4. Liquid level meter and level controller (According to customer requirements ).

Product parameters

Volume （L）	Core Dia. (mm)	Jacket Cover Dia (mm)	Motorpower (KW)	Reducer model	Speed RPM
30	400	500	0.6-1.1	M2	60-36
50	500	600	0.6-1.1	M3	60-36
100	550	650	1.1-1.5	M4	60-36
150	600	700	2.2	M6	60-36
200	650	750	2.2	M6	60-36
300	800	900	2.2	M6	60-36
500	900	1000	2.2	M6	60-36
800	1100	1200	4	M8	60-36
1000	1200	1300	4	M8	60-36
1500	1300	1400	4	M8	60-36
2000	1400	1500	4	M8	60-36
2500	1400	1500	7.5	BLB7.5-4-13	90
4000	1500	1600	7.5	BLB7.5-4-13	63
8000	2000	2100	15	BLB7.5-4-13	100
32000	3000	2100	37	BLB450-11-45	50-100

Product advantages

Buffer the system from the pressure fluctuations

◆ Stabilize system work：The buffer tank is mainly used in various systems, through the internal compressed air or air bag to buffer the pressure fluctuation of the system, to make the system work more smoothly. This buffering effect helps to reduce the impact and vibration within the system due to changes in pressure, thereby protecting the system equipment and piping from damage. ◆ Adapt to process：In the application of oil and gas gathering and transportation, water supply equipment and central air conditioning system, the buffer tank can reduce the inhomogeneity of the flow in the pipeline and avoid the generation of overflow, so as to better meet the needs of the process.

Adjust the system pressure

◆ The action of energy accumulator：When a buffer tank is connected to a water system, it mainly acts as an accumulator. When the water pressure of the system is greater than the gas pressure in the buffer tank, the water will be squeezed into the air bag of the buffer tank to compress the gas and increase its pressure. On the contrary, when the water pressure of the system is less than the gas pressure in the buffer tank, the water in the air bag will be squeezed out and replenished back into the system, thus adjusting the pressure fluctuation of the system.◆ Keep the water pressure stable：When the water pressure in the system changes slightly, the air bag of the buffer tank will automatically expand or contract, playing a certain buffer role on the change of the water pressure. This regulation mechanism can ensure the stability of the water pressure of the system and avoid the problems of frequent start and stop of the pump caused by pressure changes.

Improve the pump performance

◆ Improve inhalation performance：In the pump system, the suction buffer tank can reduce the flow inequality of the suction pipeline and reduce the inertia loss, thus improving the suction performance of the pump. This helps to ensure that the pump operates under stable working conditions, improving its working efficiency and reliability.◆ Reduce the flow inequality of the discharge line：The discharge buffer tank is used to reduce the flow inequality of the discharge pipeline and avoid the generation of overflow. This is important for protecting downstream equipment and pipelines from shock and vibration.

Provide air-liquid separation and condensation function

In certain specific applications, such as in the vacuum system, the buffer tank can also provide an air-liquid separation function to prevent the working liquid from pouring back directly into the vacuum pump. In addition, it can also provide condensation function, avoid part of the solvent in the reaction vessel into gaseous directly into the vacuum pump, so as to reduce the failure rate of the vacuum pump and improve its service life.

matters need attention

◆ The buffer tank should pay attention to its safety and stability during use. In particular, the gas buffer tank may break the phenomenon due to the internal and external pressure imbalance, and even cause explosion accidents. Therefore, the staff need to regularly check and maintain the buffer tanks to ensure that they are in good working condition.◆ With the development of science and technology, the new airbag buffer tank has overcome some disadvantages of traditional diaphragm buffer tank, such as rust caused by welding process and interface fracture. This makes the airbag buffer tank more reliable and stable in applications.

To sum up, the buffer tank plays an important role in a variety of systems. It ensures the stable operation of the system and the safety and reliability of the equipment by buffer the pressure fluctuation, regulating the system pressure, improving the pump performance and providing gas and liquid separation and condensation function.

Clean →

Our in-house designers and engineers have produced countless great designs for customers from different industries

record →

Our in-house designers and engineers have produced countless great designs for customers from different industries

Add about 80% of the water →

Check the concentration →

Configure acid-base concentration →

Connect the in and out distributor →

Check the water delivery →

Checking and Cleaning →

Turn on the reflux pump →

Rinse with clean water →

Test

Operating procedures

1. Purpose To standardize the CIP cleaning procedures, maintain equipment, and ensure continuous and normal production.

2. Scope of application

CIP cleaning section.

3. Content

3.1 Cleaning sequence: clean water at 40°C, 2% alkali, clean water at 40°C, 0.8% acid, hot water above 90°C, and wash in sequence.

3.2 Clean and record according to the specified time.

3.3 Add about 80% of the water, that is, cover the heating coil.

3.4 Acid-base concentration:

3.4.1 Check the concentration before cleaning, if it is not enough, add an appropriate amount.

3.4.2 Decide whether to reformulate according to the degree of acid-base pollution.

3.5 Connect the in and out distributor correctly.

3.6 Always check the water delivery device to prevent blockage.

3.7 After checking the pipes and valves, the centrifugal pump can be started for cleaning.

3.8 When cleaning with acid and alkali, after cleaning, turn on the reflux pump, so that the acid and alkali flow into the acid tank and the alkali tank respectively.

3.9 Finally, rinse with clean water, and the cleaning is completed.

3.10 Use test paper to test if it is neutral.
