Product details of the food processing machinery

Product Overview

Wenzhou Suote food processing machinery is famous for its delicate and functional design. The product passes through the extremely harsh quality control and inspection process. The food processing machinery developed and produced by our company is widely applied to many industries and fields, and it can fully meet the diversified needs of customers. After years, the product still satisfies the demands of markets and is believed to be used by more people.

Product Information

With the dedication to pursue excellence, Wenzhou Suote strives for perfection in every detail.

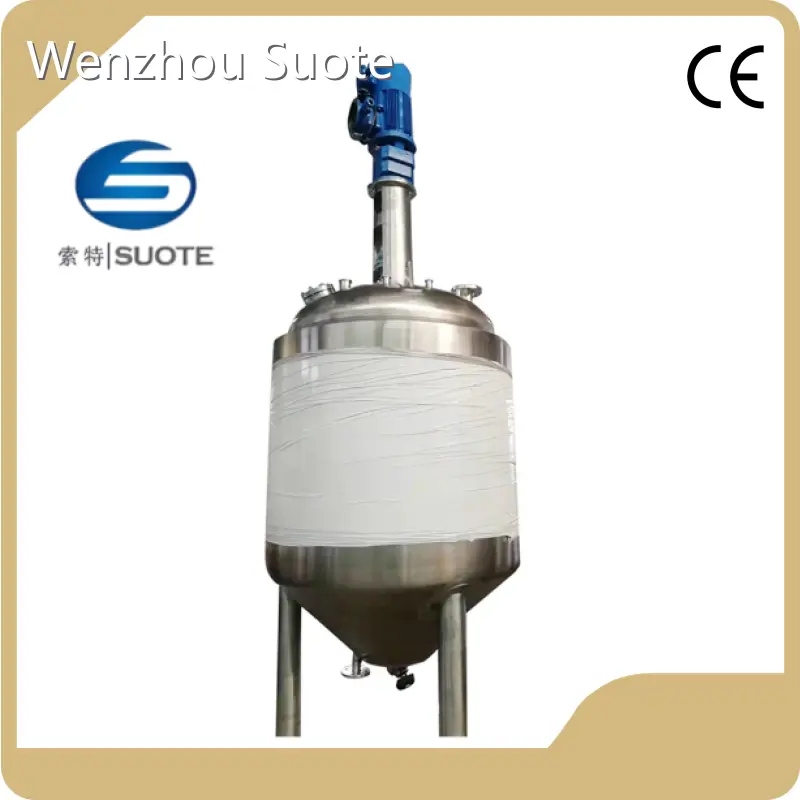

Reaction pot composition

The reaction pot is mainly composed of four major parts: inner tank body, jacket, stirring device, and support seat (insulation structure can be adopted according to process needs).

1. The inner tank body is made of materials such as stainless steel (SUS304, SUS316L, or SUS321) according to process requirements. The inner surface is mirror-polished and can be cleaned online with CIP and sterilized with SIP, meeting hygiene specifications.

2. The jacket is made of stainless steel (SUS304) or carbon steel (Q235-B) according to process needs.

3. Appropriate diameter-to-height ratio design and customized stirring device as needed; the stirring shaft seal adopts a pressure-resistant and hygienic mechanical seal device to maintain the working pressure inside the tank and prevent unnecessary pollution and material loss caused by material leakage inside the tank.

4. The support type is suspended lug type or floor-mounted leg type according to operation requirements.

Specification drawing

The stainless steel reaction kettle is one of the commonly used reactionequipment in such industries as medicine and chemical industry. atcertain temperature and pressure, through agitator mixes two kinds ofvolumes certain (or many kinds of)liquids, solids or liquids, promotes itschemical reaction,usuallY with thermal heat effect, Inputs required heatenergy by heat exchanging device or shifts forming heat energy. Type ofagitation more uses anchor or frame type which ensures equal and evenmixture in short time.

Speed of agitation more matches frequency conversion with temperatureof display and control

Product parameters

Volume (L)	Core Dia. (mm)	Jacket Cover Dia (mm)	Motor power	Reducer model	RPM
30	400	500	0.6-1.1	M2	60-36
50	500	600	0.6-1.1	M3	60-36
100	550	650	1.1-1.5	M4	60-36
150	600	700	2.2	M6	60-36
200	650	750	2.2	M6	60-36
300	800	900	2.2	M6	60-36
500	900	1000	2.2	M6	60-36
800	1100	1200	4	M8	60-36
1000	1200	1300	4	M8	60-36
1500	1300	1400	4	M8	60-36
2000	1400	1500	4	M8	60-36
2500	1400	1500	7.5	BLB7.5-4-13	90
4000	1500	1600	7.5	BLB7.5-4-13	63
8000	2000	2100	15	BLB7.5-4-13	100
32000	3000	3200	37	BLB450-11-45	50-100

The reactor is divided into two series

Wenzhou Suote Food Processing Machinery Food Processing Machinerywith Good Price 9

Electric heating series

The work of the electric heating reactor was originally to insert the electric heater into the jacketed heat-conducting oil, and use the heat-conducting oil as the medium to transfer heat into the kettle, so that the materials in the kettle would absorb heat and heat up to react.

Wenzhou Suote Food Processing Machinery Food Processing Machinerywith Good Price 10

Steam heating series

The working principle of the steam heating reaction kettle is to pass boiler steam into the jacket of the reaction kettle, and transfer the steam heat into the kettle, so that the materials in the kettle absorb heat and react.

Wenzhou Suote Food Processing Machinery Food Processing Machinerywith Good Price 11

Clean →

Our in-house designers and engineers have produced countless great designs for customers from different industries

Wenzhou Suote Food Processing Machinery Food Processing Machinerywith Good Price 12

record →

Our in-house designers and engineers have produced countless great designs for customers from different industries

Add about 80% of the water →

Check the concentration →

Configure acid-base concentration →

Connect the in and out distributor →

Check the water delivery →

Checking and Cleaning →

Turn on the reflux pump →

Rinse with clean water →

Test

Operating procedures

1. Purpose To standardize the CIP cleaning procedures, maintain equipment, and ensure continuous and normal production.

2. Scope of application

CIP cleaning section.

3. Content

3.1 Cleaning sequence: clean water at 40°C, 2% alkali, clean water at 40°C, 0.8% acid, hot water above 90°C, and wash in sequence.

3.2 Clean and record according to the specified time.

3.3 Add about 80% of the water, that is, cover the heating coil.

3.4 Acid-base concentration:

3.4.1 Check the concentration before cleaning, if it is not enough, add an appropriate amount.

3.4.2 Decide whether to reformulate according to the degree of acid-base pollution.

3.5 Connect the in and out distributor correctly.

3.6 Always check the water delivery device to prevent blockage.

3.7 After checking the pipes and valves, the centrifugal pump can be started for cleaning.

3.8 When cleaning with acid and alkali, after cleaning, turn on the reflux pump, so that the acid and alkali flow into the acid tank and the alkali tank respectively.

3.9 Finally, rinse with clean water, and the cleaning is completed.

3.10 Use test paper to test if it is neutral.
