Product details of the grain conveyor

Product Information

Pictures on our grain conveyor can be customized to meet customer's requirements. To make high-quality grain conveyor needs the aspiration of our staff. Its application prospect becomes more and more extensive.

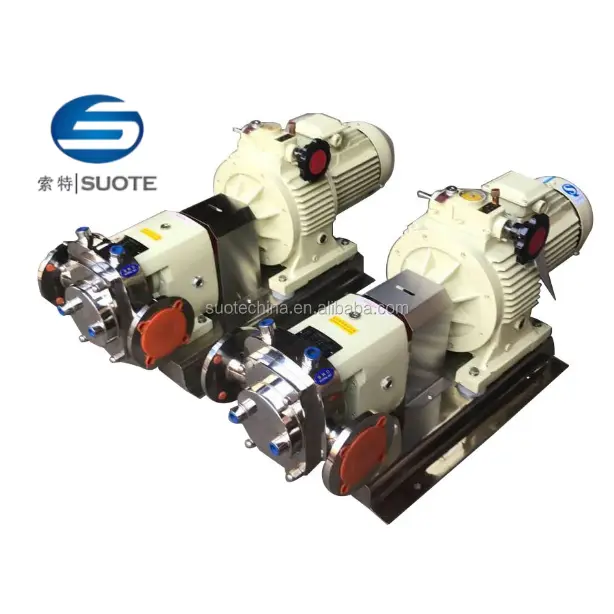

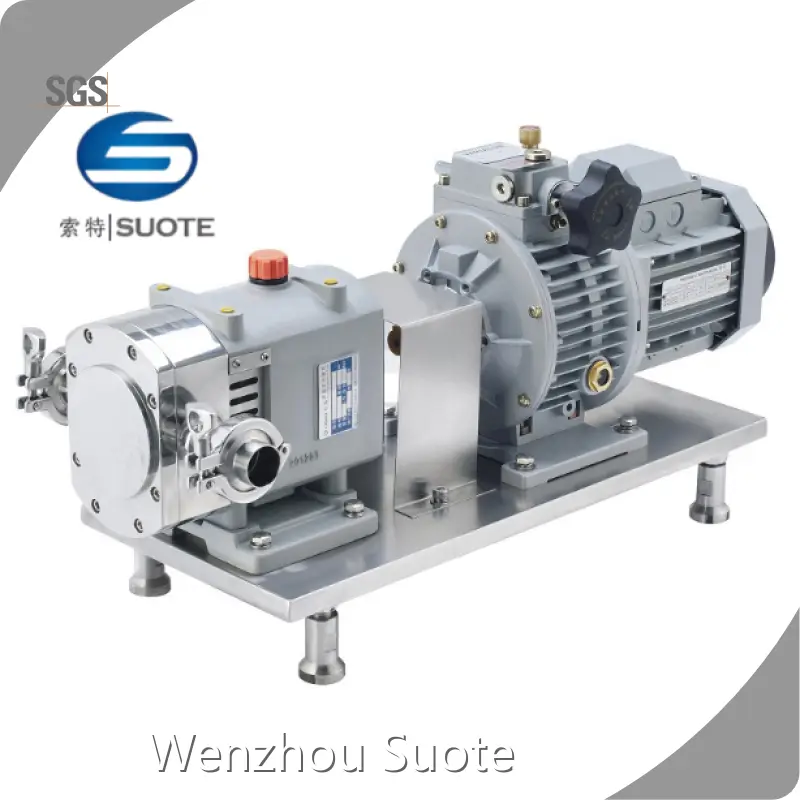

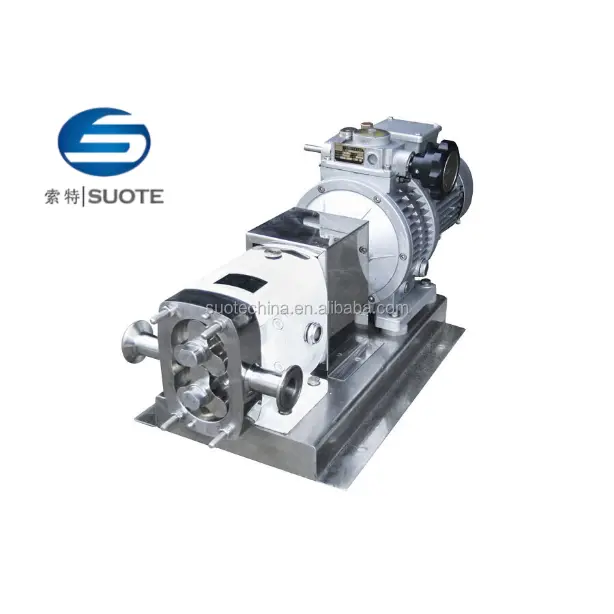

Rotor pump components

A	B	C	D	E	F	G	H	I	J	K	L	M	N	O	P	Q	R	S
174	140	94	17	267	31.5	179	169	103	110	68	40	48	70	43	5	14	14.2	25
174	140	94	17	280	40	179	169	103	110	68	45	48	70	43	5	14	14.2	32
220	185	119	22	344	36.5	227	219	144	130	108	52	70	84	53	6	14	18.5	32
220	185	119	22	347	39	227	219	144	130	108	52	70	84	53	6	14	18.5	32
240	210	133	28	372	46.5	242	242	155	132	114	59	78	94	54	8	18	23	51
240	210	133	28	385	52	242	242	155	132	114	66	78	94	54	8	18	23	51
284	246	158	38	451	52	290	300	175	177	125	72	97.5	109	83	10	18	33	63
284	246	158	38	465	61	290	300	175	177	125	76	97.5	109	83	10	18	33	63
310	270	202	46	484	59	342	372	178	170	128	102	125	139	72	14	18	41	76
338	300	207	50	538	62	412	399	198	190	155	110	135	140	85	14	18	44.5	76
338	300	207	50	556	71	412	399	198	190	155	118.5	135	140	85	14	18	44.5	89
372	334	224	60	609	70	442	435	244	227	188	151	152	148	85	18	18	53	89
372	334	224	60	634	84	442	435	244	227	188	162	158	148	85	18	18	53	102
400	350	285	70	719	86	512	555	220	262	170	176	196	187	115	20	20	62	102

Structure Features

1. Advanced structure: pump rotor and transmission gear apart, and

rotor and rotor, rotor and pump wall to maintain a certain clearance

between each other, no contact, no wear, low operating noise, long

service life.

2. Reliable seals: , the end face of mechanical seal to be placed on the

outside the shaft in pump , with dynamic and static ring of pump

mechanical seal, resistant to high pressure, not easy to wear, no

leakage.

3. High quality materials: all the parts in contact with conveying

materials are made of stainless steel and polished. The seals are

made of non-toxic rubber, easy to clean too, to ensure cleanliness.

4. The pump's piping connection has various forms, and has the

advantages of small volume, large flow rate, high head pressure and

other aspects.To meet customers' requirements to the maximum

extent

Installation

If the pump without motor, adjusting device, the base plate and other accessories, so when installing this pump, need to refer to the motor power and the highest speed limits which in the technical parameters,hoose suitable motor (had better choose speed regulating motor) model and a pair of flexible coupling, and in accordance with the center of the pump and the selected motor high, make the basis of a stainless steel plate, and then with at least four bolt will be assembled monolithic stationary on the floor. There are several other issues that should be paid attention to during installation:

01

Pump and motor shaft connection, should first of all adjust each calibration level and ensure them coaxial, then install couplings, otherwise, will cause damage to the machinery.

02

Lobe pump can choose the direction of inlet and outlet according to the direction of media flow or machine fixing position limited by the space, and can change the rotating direction of the pump through the wiring of the motor.

03

Since this pump is a constant volume pump with fixed displacement per revolution, once the previous process(outlet) stops working due to some reason and the pump continues to work, thepressure of the pump will increase indefinitely, which will eventually lead to the leakage of seals, damage of machinery and other accidents. Therefore, effective preventive measures must be taken. Case 1: Be consistent in the procedures, stop the pump while the program is shut down. Case 2: Can install relief valve and over-pressure loop system in the output pipeline, which will automatically release pressure in case of over-pressure.

04

If the pump to add control valve, can only be installed in the pump inlet pipeline, outlet pipeline should not be installed control valve, it’s easy to cause over-pressure.

05

After all installation, should carry on the comprehensive inspection, including the machine parts fixation, electrical wiring, and so on, then, Turn the pump by hand for 3-5 rotations,check whether there is jamming or loosening phenomenon, until everything is normal, then carry on a test-run,if abnormality is found, should stop for maintenance.



Clean →

Our in-house designers and engineers have produced countless great designs for customers from different industries

record →

Our in-house designers and engineers have produced countless great designs for customers from different industries

Add about 80% of the water →

Check the concentration →

Configure acid-base concentration →

Connect the  in and out distributor  →

Check the water delivery →

Checking  and  Cleaning →

Turn on the reflux pump →

Rinse with clean  water →

Test

Operating procedures

1. Purpose To standardize the CIP cleaning procedures, maintain equipment, and ensure continuous and normal production.

2. Scope of application

CIP cleaning section.

3. Content

3.1 Cleaning sequence: clean water at 40°C, 2% alkali, clean water at 40°C, 0.8% acid, hot water above 90°C, and wash in sequence.

3.2 Clean and record according to the specified time.

3.3 Add about 80% of the water, that is, cover the heating coil.

3.4 Acid-base concentration:

3.4.1 Check the concentration before cleaning, if it is not enough, add an appropriate amount.

3.4.2 Decide whether to reformulate according to the degree of acid-base pollution.

3.5 Connect the in and out distributor correctly.

3.6 Always check the water delivery device to prevent blockage.

3.7 After checking the pipes and valves, the centrifugal pump can be started for cleaning.

3.8 When cleaning with acid and alkali, after cleaning, turn on the reflux pump, so that the acid and alkali flow into the acid tank and the alkali tank respectively.

3.9 Finally, rinse with clean water, and the cleaning is completed.

3.10 Use test paper to test if it is neutral.

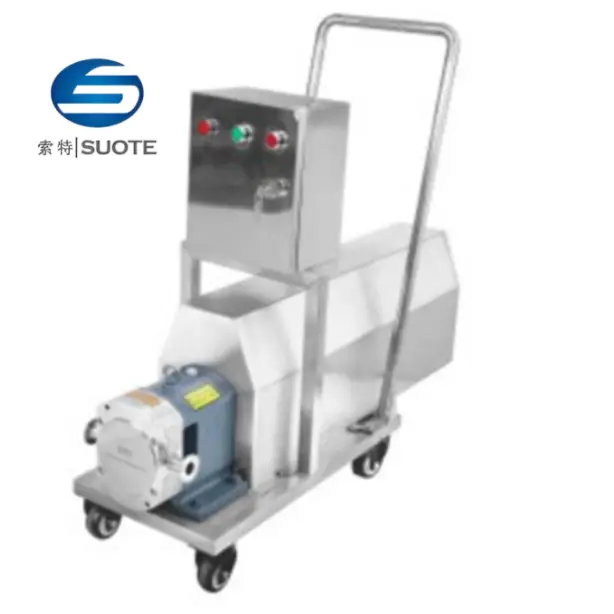

product display

产品底图

产品底图

产品底图

产品底图

产品底图

产品底图

Company Advantage

• Wenzhou Suote, built in has accumulated rich experience and has established a good reputation in the industry.
• With the timely and efficient service concept, our company sincerely provides quality services for our clients.
• Wenzhou Suote enjoys the superior geographical position with traffic convenience.
• Our company continues to expand our market share in several countries.
Want to know more specific information of The main products include tanks like fermentation tanks,TK tanks,powder tanks,mechanical or magnetic stirring dosing tanks,extraction tanks,stainless steel reactors,concentrators and other tank equipment,heat exchange equipment such as column and tube heat exchangers,PLC control systems,various types of filters and purification area dedicated to various types of pipes,fittings,clamps and diaphragm valves,tank bottom valves and other engineering supporting products? Leave your contact information, and Wenzhou Suote would send you relevant information for your reference.
